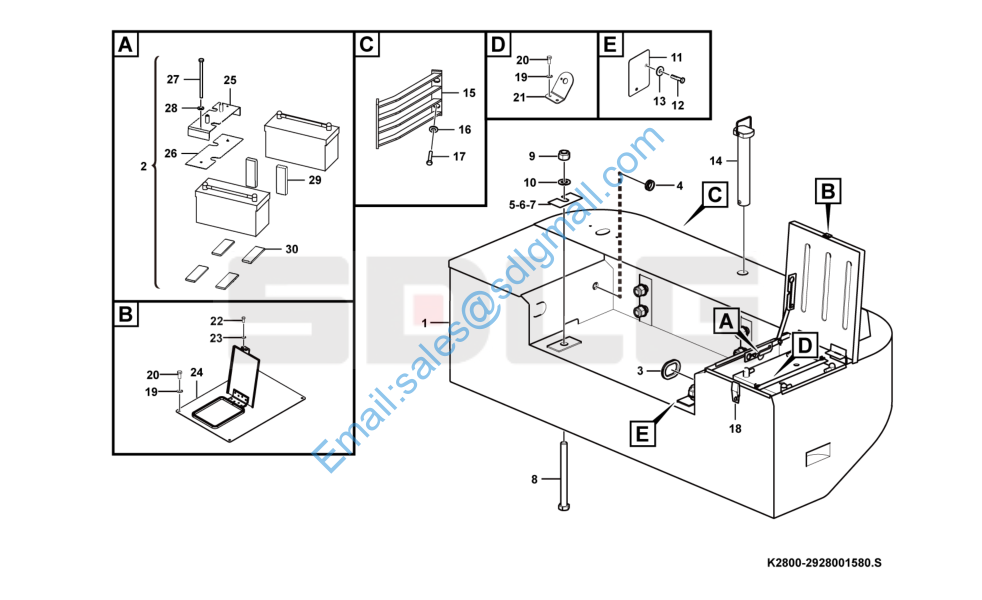

L953F 配重2500 Counterweight K2800-2928001580

1 29280015811 平衡铁2500 Counterweight Y 1

2 29280015861 蓄电池固定总成 Battery retainer N 1

3 4043002651 护套LGB313-B6*80*125 Rubber sleeve Y 1

4 4043000825 护套LGB313-6*50 Rubber sleeve Y 1

5 29280009751 垫片 Shim Y 2

6 29280009741 垫片 Shim Y 2

7 29280009731 垫片 Shim Y 2

8 4011000703 螺栓GB5785-M30*2*330EpZn-8.8 Bolt Y 5

9 4013000064 螺母GB889.2-M30*2EpZn-8 Lock nut Y 5

10 4015000119 垫圈GB97.1-30EpZn-300HV Washer Y 5

11 29280013811 封板 Plate Y 2

12 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 4

13 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 4

14 29280014301 牵引销 Towing pin Y 1

15 29280015121 防护网 Lamp shroud Y 2

16 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 8

17 4011001291 螺栓GB5783-M6*12flZnyc-8.8-480 Bolt Y 8

18 4190000025 扣锁NBxs1013 Lock Y 1

19 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 6

20 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 6

21 29280015871 电源开关固定板 Plate Y 1

22 4014000515 螺钉GB818-M5*10flZnyc-4.8-480 Screw Y 5

23 4015000431 垫圈GB97.1-5flZnyc-300HV-480 Washer Y 5

24 29280015821 盖板 Plate Y 1

25 29280015841 压板 Plate Y 1

26 29280010841 胶板 Rubber plate Y 1

27 4011001008 螺栓GB5782-M10*250EpZn-8.8 Screw Y 2

28 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 2

29 4043001989 橡胶板LGB332-A180*60*25 Rubber plate Y 2

30 4043001983 橡胶板LGB332-A180*60*10 Rubber plate Y 4
