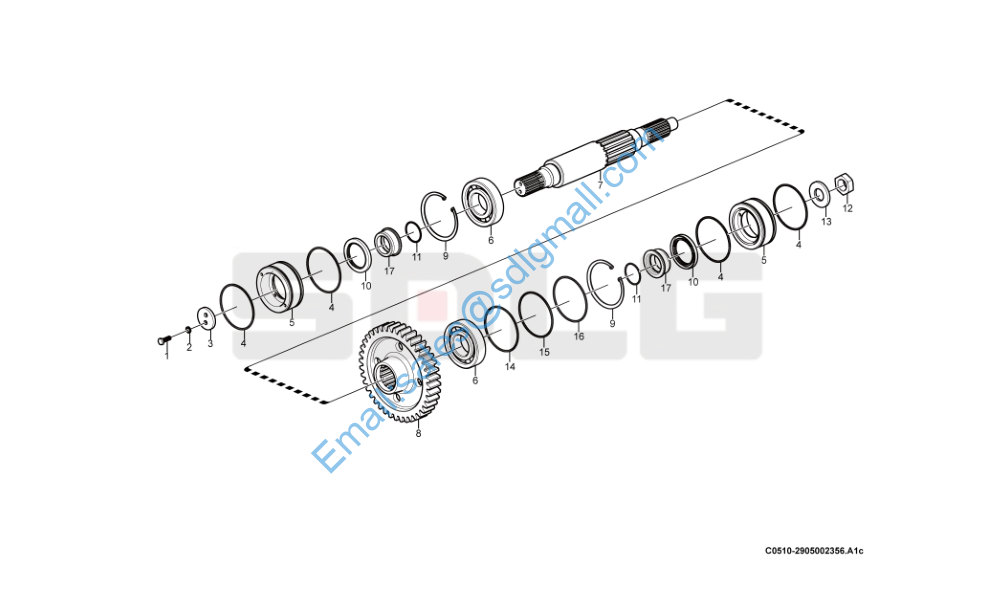

L953F 输出轴总成 Output shaft C0510-2905002356

1 4011001358 螺栓GB5783-M10*30flZnyc-10.9-480 Screw Y 2

2 4015000384 防松垫圈NASM1312-7-NL10 Washer Y 2

3 29050011161 垫圈 Washer Y 1

4 4030000536 O形圈GB3452.1-122*3.55G O-ring Y 4

5 29050017481 油封座 Sealing retainer Y 2

6 4021000285 滚动轴承GB292-7312ACM Bearing Y 2

7 29050023552 输出轴 Output shaft Y 1

8 29050016311 输出轴齿轮 Gear Y 1

9 29050016931 挡圈 Retaining ring Y 2

10 4030000768 密封圈GB13871.1-FB070095-F Sealing ring Y 2

11 7100002101 O形圈GB3452.1-54.5*2.65G O-ring Y 2

12 29050023541 螺母 Nut Y 1

13 29070000221 垫圈 Washer Y 1

14 29050012751 调整垫片 Shim Y 2

15 29050012741 调整垫片 Shim Y 2

16 29050012731 调整垫片 Shim Y 2

17 29050025851 密封套 Sealing sleeve Y 2
