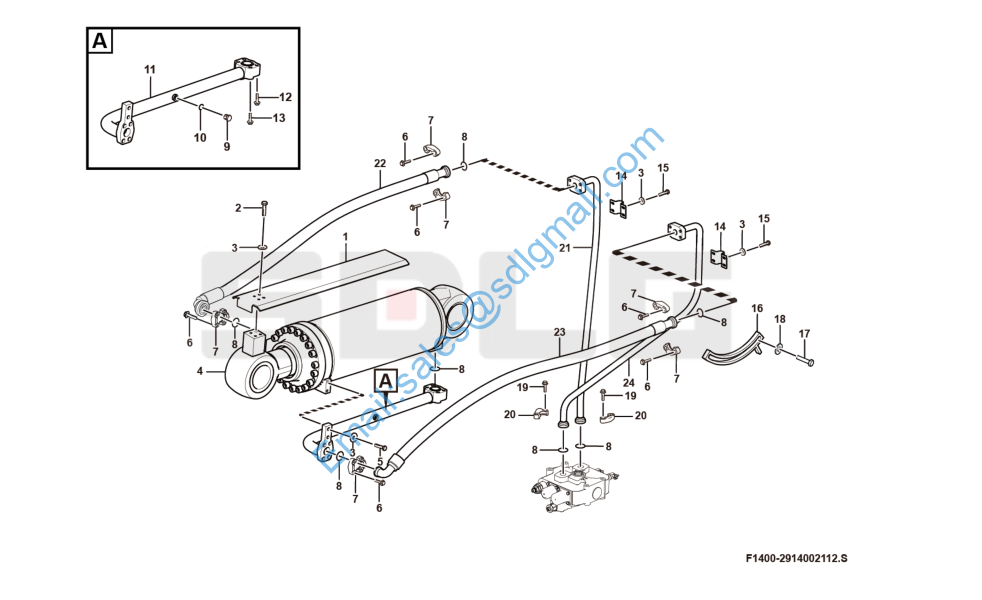

L953F 转斗缸总成 Tilt cylinder assembly F1400-2914002112

1 29140021151 放平护板 Plate Y 1

2 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4

3 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 14

4 4120007867 转斗油缸HSGF-190*90*548-1043A Tilt cylinder Y 1

5 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 2

6 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 16

7 4041000144 分体法兰LGB117-312552 Flange half Y 4

8 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 7

9 4041000774 螺塞LGB135-01422 Plug Y 1

10 4041000767 O形圈LGB168-11124 O-ring Y 1

11 29140018531 转斗缸大腔钢管 Pipe Y 1

12 4011001529 螺栓GB16674.1-M12*55flZnyc-8.8-480 Screw Y 2

13 4011001559 螺栓GB16674.1-M12*50flZnyc-8.8-480 Screw Y 2

14 29140015431 管夹 Clamp Y 2

15 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 8

16 29140016451 动臂指示板 Indicator plate Y 1

17 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 2

18 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 2

19 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 8

20 4041000056 分体法兰LGB117-312550 Flange half Y 2

21 29140020461 转斗联右小腔钢管 Pipe Y 1

22 4041000178 软管LGB106-012138 Hose assembly Y 1

23 4041001794 软管LGB106-012135 Hose assembly Y 1

24 29140020441 转斗联左大腔钢管 Pipe Y 1
