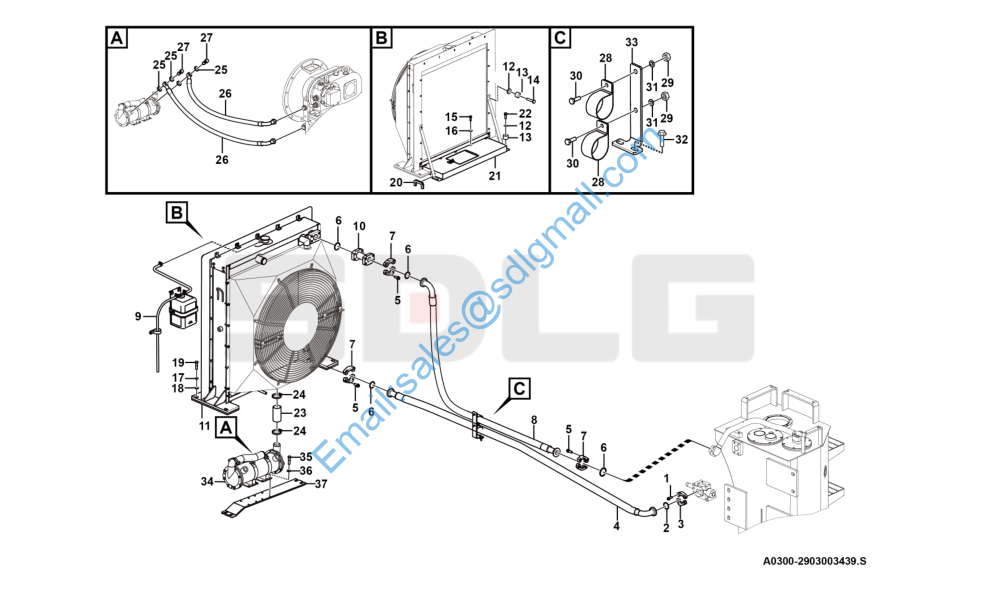

L953F 散热器总成 Radiator A0300-2903003439

1 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4

2 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 1

3 4041000027 分体法兰LGB117-312551 Flange half Y 1

4 29030023141 散热器进油管 Hose assembly Y 1

5 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 16

6 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 4

7 4041000011 分体法兰LGB117-314650 Flange half Y 3

8 29030024451 散热器回油胶管 Hose assembly Y 1

9 29030021751 膨胀水箱总成 Expansion tank N 1

10 29030007941 过渡体 Intermediate pipe Y 1

11 4110003324 水油散热器总成L953F-3 Radiator Y 1

12 29030010391 垫圈 Washer Y 4

13 29030028811 隔套 Casing Y 4

14 4011001321 螺栓GB5782-M8*45flZnyc-8.8-480 Screw Y 2

15 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 5

16 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 5

17 4015000026 垫圈GB93-12-65Mn Spring washer Y 4

18 29330023151 垫圈12 Washer Y 4

19 4011001494 螺栓GB5783-M12*50flZnyc-10.9-480 Screw Y 4

20 29030019421 橡胶套 Rubber bushing Y 1

21 29030023321 下封板总成 Plate Y 1

22 4011001569 螺栓GB5783-M8*45flZnyc-10.9-480 0 Y 2

23 29030029721 连接管120 Hose Y 1

24 4110002795 卡箍36003-0034（50-62mm） Clamp Y 2

25 4015000203 垫圈JB1002-24-T2 Washer Y 4

26 29030001031 变矩器至散热器油管 Hose assembly Y 2

27 29030001021 接头 Nipple Y 2

28 29030010811 管夹 Clamp Y 2

29 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

30 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 2

31 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

32 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2

33 29030023741 支架 Bracket Y 1

34 4120006094 传动油散热器LG02S Oil cooler Y 1

35 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 8

36 4015000025 垫圈GB93-10-65Mn Spring washer Y 8

37 29030025821 橡胶板 Rubber plate Y 2
