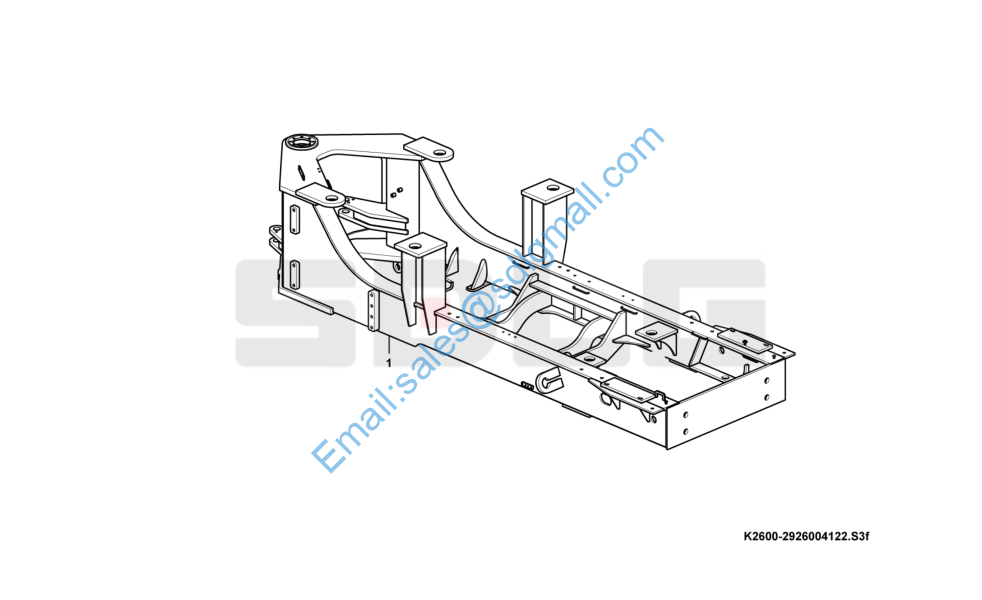

L953F 后车架 Rear frame system K2600-2926004122

1 29260041223 后车架 Rear frame Y 1

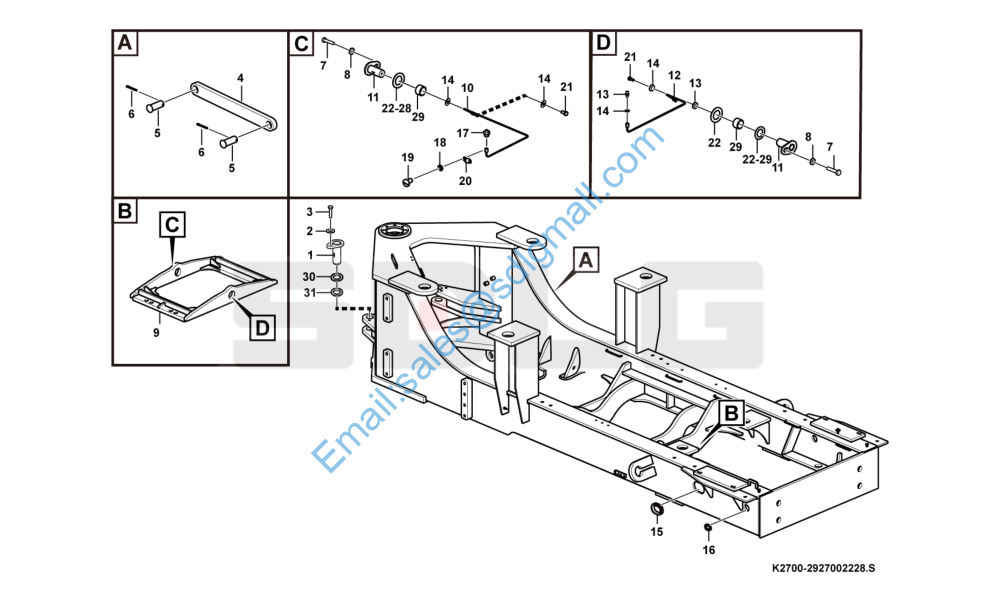

后车架附件 Accessories K2700-2927002228

1 29250018341 转向销轴 Pin Y 2

2 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2

3 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 2

4 29270008901 锁定杆 Transport lock Y 1

5 4016000190 销轴GB882-B30*85EpZn-35 Pin Y 2

6 4016000040 开口销GB91-6.3*50EpZn-Q235A Split pin Y 2

7 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 2

8 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 2

9 29270001041 副车架 Rear axle bridge Y 1

10 29270017581 前润滑油管 Lubricating pipe Y 1

11 29270010011 焊接销轴 Pin Y 2

12 29270017601 后润滑油管 Lubricating pipe Y 1

13 29250014121 接头 Nipple Y 2

14 29250000301 垫片 Shim Y 6

15 29270009101 走线胶套 Rubber sleeve Y 1

16 29250008461 走线胶套 Rubber sleeve Y 2

17 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 4

18 4015000035 垫圈GB93-6-65Mn Spring washer Y 4

19 4014000510 螺钉GB818-M6*10flZnyc-4.8-480 Screw Y 4

20 29250000311 管夹 Clamp Y 2

21 29250000291 通油螺栓 Bolt Y 2

22 29270001051 调整垫片 Shim Y 3

23 29270001061 调整垫片 Shim Y 2

24 29270001071 调整垫片 Shim Y 2

25 29270009301 调整垫片 Shim Y 2

26 29270009311 调整垫片 Shim Y 2

27 29270009321 调整垫片 Shim Y 2

28 29270009331 调整垫片 Shim Y 2

29 29270001031 套 Bushing Y 2

30 4043000325 垫片LGB303-40*70*2 Shim Y 4

31 4043000064 垫片LGB303-40701 Shim Y 4
