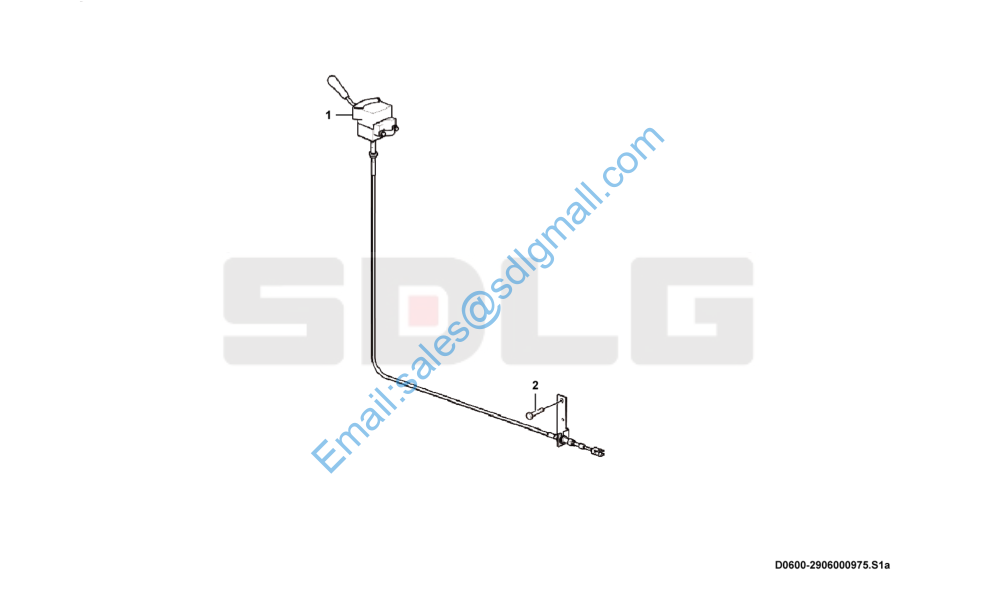

L953F 变速操纵总成 Shift mechanism system D0600-2906000975

1 4110003497 变速操纵机构L955F-1 Control mechanism Y 1

2 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 2

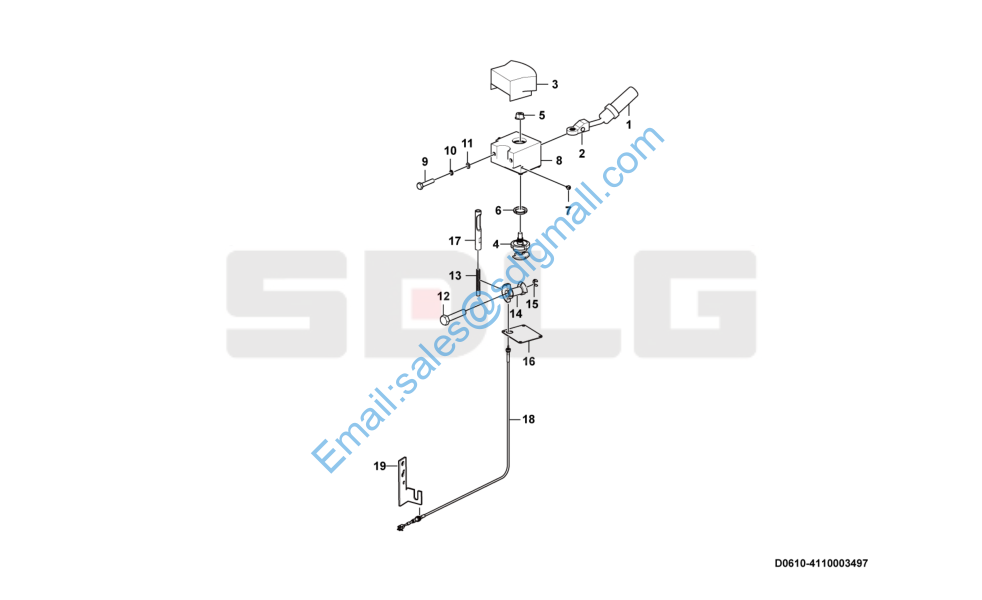

变速操纵机构L955F-1 Control mechanism D0610-4110003497

1 4110001680001 手球LGH953N0001 Handle ball Y 1
2 4110001514002 手柄组件 LGH956N0002 Handle Y 1
3 4110001680003 盒罩焊合件LGH953N0003 Cover Y 1
4 4110001680004 轴组件LGH9530004 Shaft Y 1
5 4110000659005 螺母M10 GB6185.1 Nut Y 1
6 4110000172027 M36螺母LGH9530005 Nut Y 1
7 4110002752001 螺栓GB/T823-M5 Screw Y 7
8 4110001680005 953N铝盒LGH953N0004 Cover Y 1
9 4011000724 螺栓GB5783-M8*25-8.8 Bolt Y 2
10 28100003661 垫圈8（GB93） Washer N 2
11 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2
12 4110000172030 六方头销轴LGH9530010 Pin Y 1
13 4110000172031 齿条LGH9530012 Gear rack Y 1
14 4110001680006 齿轮套组件LGH9530011 Gear sleeve Y 1
15 4015000125 挡圈GB894.1-10-65Mn Retaining ring Y 1
16 4110001680007 盒盖LGH9530013 Cover Y 1
17 4110001680008 齿条筒LGH9530014 Rack sleeve Y 1
18 4110001514001 软轴总成LGHR953N0001 Control cable Y 1
19 4110002752002 软轴支架LGHR9530015 Bracket Y 1
