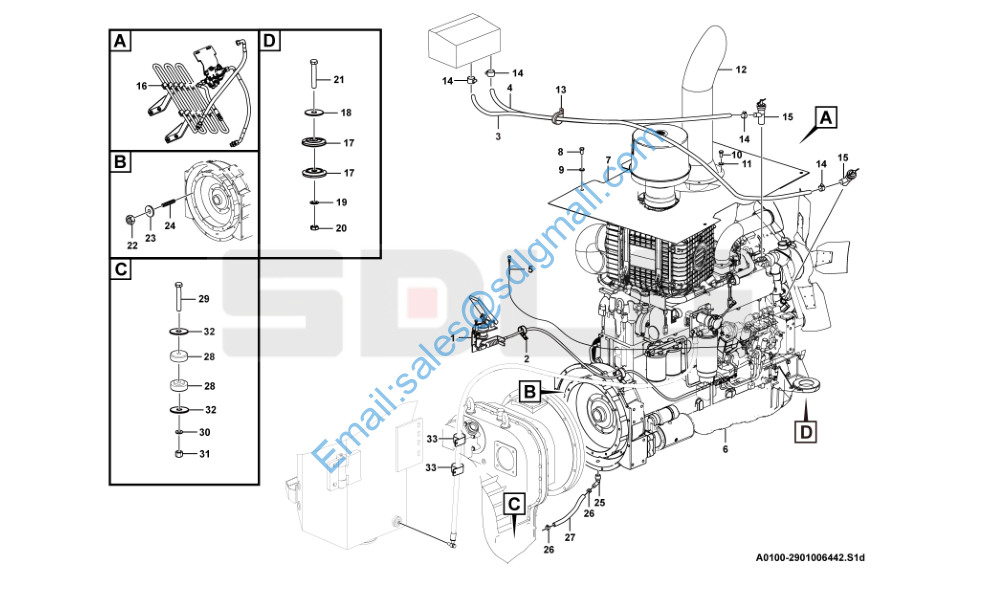

L953F 发动机总成 Engine system A0100-2901006442

1 29010026061 油门操纵机构 Control mechanism N 1

2 4041002409 管夹LGB169-A10*10 Clamp Y 1

3 4090000171 胶管HG2491-16*2300 Hose Y 1

4 4090000191 胶管HG2491-16*2150 Hose Y 1

5 29010067911 操纵软轴 Control cable Y 1

6 4110003316 发动机总成 Engine Y 1

7 29010064431 上盖板 Plate Y 1

8 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 6

9 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 6

10 4011001268 螺栓GB5783-M10*16flZnyc-8.8-480 Screw Y 4

11 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4

12 4110001754 排气尾管 Pipe Y 1

13 29030000041 管夹 Clamp Y 2

14 4017000024 环箍QC390-D26 Clamp Y 4

15 4120000067 暖风机水阀LG12-NFJSF Valve Y 2

16 29220026851 空气源管理器模块 Water separator N 1

17 4110001528 减震器CBB120 Absorber Y 4

18 29010024431 垫圈124 Washer Y 2

19 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 2

20 4013000160 螺母GB889.2-M20*1.5EpZn-8 Lock nut Y 2

21 4011000918 螺栓GB5785-M20*1.5*125EpZn-8.8 Bolt Y 2

22 4013000007 螺母GB6170-M10EpZn-8 Nut Y 12

23 4015000025 垫圈GB93-10-65Mn Spring washer Y 12

24 29010016661 双头螺柱 Stud Y 12

25 29010071141 回油接头 Nipple Y 1

26 4017000015 喉箍JB8870-d25 Clamp Y 2

27 4030000495 胶管JB8406-B16*265 Hose Y 1

28 4110001527 减震器CBB114 Absorber Y 4

29 4011000378 螺栓GB5785-M24*2*160EpZn-8.8 Bolt Y 2

30 4015000167 垫圈GB97.1-24EpZn-300HV Washer Y 2

31 4013000157 螺母GB889.2-M24*2EpZn-8 Lock nut Y 2

32 29050019331 垫圈 Washer Y 4

33 4041002412 管夹LGB169-A20*10 Clamp Y 2
