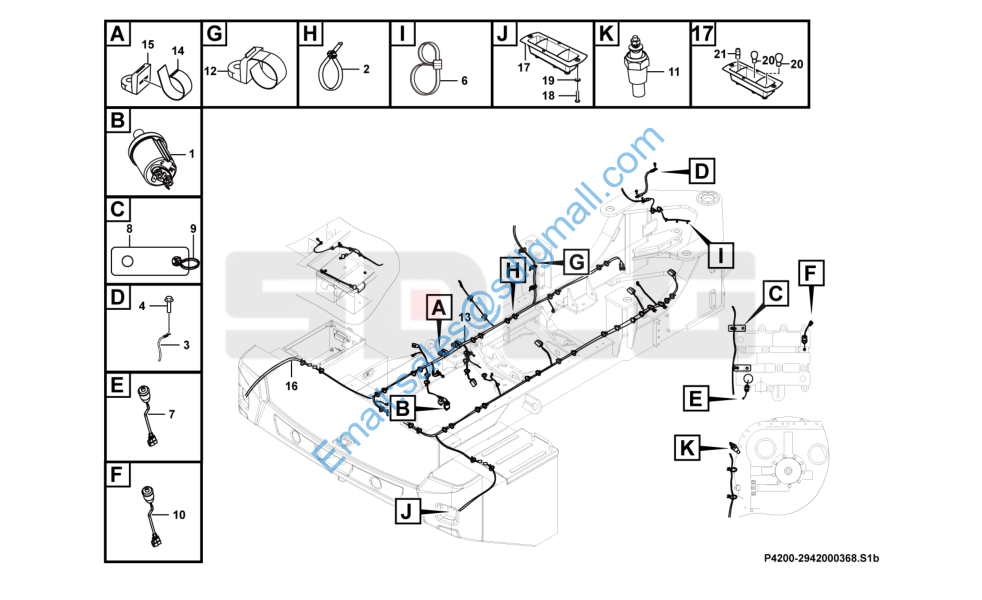

L953F 后车架电气总成 Rear frame electric assembly P4200-2942000368

1 4130000308 制动气压传感器YG901C3 Pressure sensor Y 1

2 4190001839 扎丝LG13-ZS4*160 Cable tie Y 45

3 28370000151 电瓶线P15*250 Battery cable Y 1

4 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 11

5 11211133 接插件固定夹 Clip Y 1

6 4190001838 扎丝RTGB-370HD-S Cable tie Y 4

7 4130001294 隔膜式压力开关310-LGK1 Pressure switch Y 1

8 29370018861 支板 Bracket Y 2

9 4190001095 扎丝N90666101 Cable tie Y 5

10 4130001300 压力开关YK215B1 Pressure switch Y 1

11 4130000202 温度传感器WDG1371 Temperature sensor Y 1

12 14400342 扎带 Strip clamp Y 3

13 29420003693 后车架线束 Wiring harness Y 1

14 14400341 扎带 Strip clamp Y 2

15 14400340 扎带座 Strip clamp Y 2

16 29420005241 尾灯过渡线束 Wiring harness Y 2

17 4130002615 后尾灯2SE 002 578-70 Tail lamp Y 2

18 4014000026 螺钉GB818-M6*16EpZn-4.8 Screw Y 4

19 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 4

20 4130001130 灯泡24V 21W(P21W) 8GA 002 073-241 Bulb Y 4

21 4130001131 灯泡24V 10W(R10W) 8GA 002 071-251 Bulb Y 2
