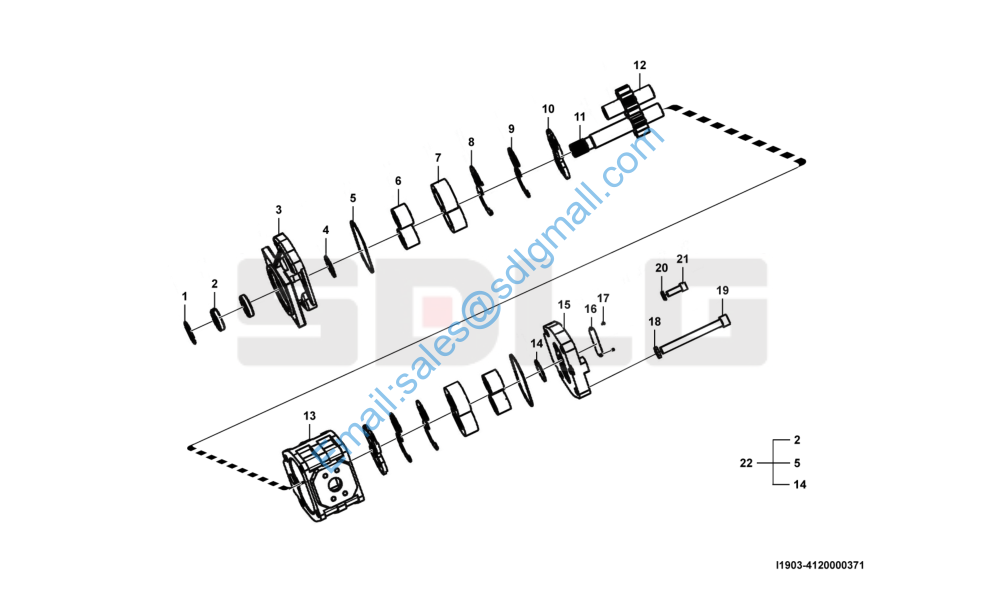

L920 齿轮泵(370101) Gear pump I1903-4120000371

1 4120000171005 挡圈56 GB893.1-86 Retaining ring Y 1

2 4120000171004 旋转轴唇形密封圈GB9877.1-88 B35*56*12 Sealing ring Y 2

3 4120000866101 前盖CBGj2-02 Cover Y 1

4 4015000245 挡圈GB893.1-52-65Mn Retaining ring Y 1

5 4120000171112 矩形密封圈CBGj2-T1 Sealing ring Y 2

6 4120000171002 滚针轴承644907 Needle bearing Y 4

7 4120000171106 轴套CBGj2-08 Bushing Y 4

8 4120000171107 耳形挡片CBGj2-05 Retaining ring Y 2

9 4120000171108 耳形密封CBGj2-03 Sealing washer Y 2

10 4120000171109 侧板CBGj2-07 Side board Y 2

11 4120002117011 主动齿轮轴CBGj2-01 Drive shaft Y 1

12 4120000866103 从动齿轮轴CBGj2-10 Shaft Y 1

13 4120000371006 泵体CBGjA2-01 Pump body N 1

14 4030000211 O形圈GB3452.1-30.0*2.65G O-ring Y 1

15 4120000371007 后盖CBGjA2-02 Cover N 1

16 4120005357002 标牌BP-1 Decal N 1

17 4120001968014 铆钉GB827-86 Rivet N 2

18 4015000098 垫圈GB93-16-65Mn Spring washer Y 4

19 4120002117013 螺钉CBGj2-11 M16X152 Screw Y 4

20 4015000026 垫圈GB93-12-65Mn Spring washer Y 1

21 4014000110 螺钉GB70.1-M12*35EpZn-8.8 Screw Y 1

22 4120000371008 密封件包 Sealing ring kit Y 1
