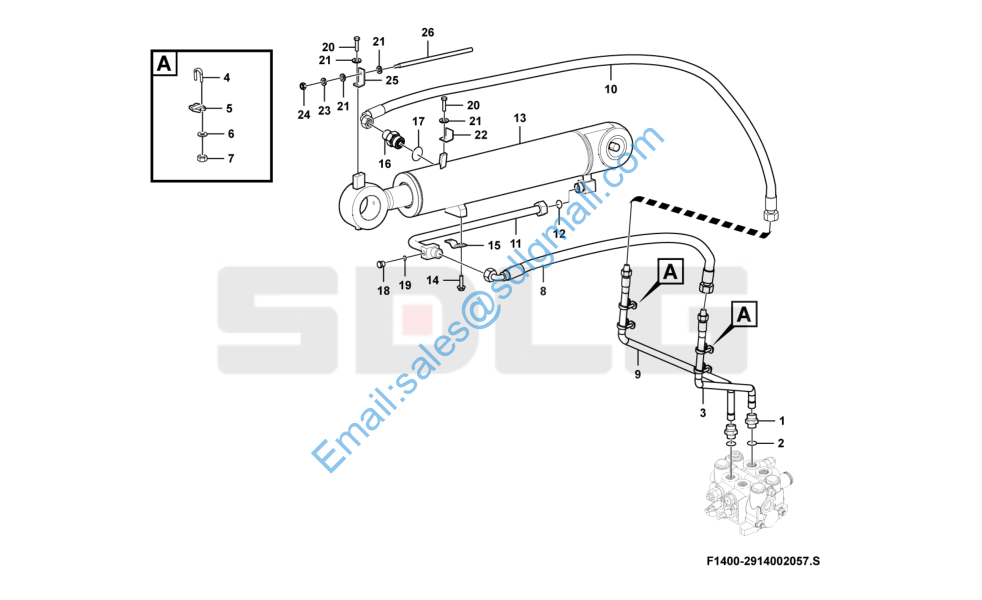

L920 转斗油缸系统 Tilt cylinder system F1400-2914002057

1 4041000582 直接头LGB120-02630 Nipple Y 2

2 4041000685 O形圈LGB168-12631 O-ring Y 2

3 29140019951 转斗联大腔钢管 Pipe Y 1

4 4041002083 U形螺栓LGB159-02028 U-bolt Y 4

5 4041001240 底板LGB160-2028 Bracket Y 4

6 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 8

7 4013000033 螺母GB6170-M8EpZn-8 Nut Y 8

8 29140019991 转斗缸大腔胶管 Hose Y 1

9 29140019971 转斗联小腔钢管 Pipe Y 1

10 29140020001 转斗缸小腔胶管 Hose Y 1

11 29140019941 转斗缸大腔钢管 Pipe Y 1

12 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 1

13 4120006441 转斗油缸HSGL-100*55*412-779 Tilt cylinder Y 1

14 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2

15 29140006531 管夹 Clamp Y 1

16 4041000187 直接头LGB120-02622 Nipple Y 1

17 4041000771 O形圈LGB168-11924 O-ring Y 1

18 4041000774 螺塞LGB135-01422 Plug Y 1

19 4041000767 O形圈LGB168-11124 O-ring Y 1

20 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 2

21 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 4

22 29140000041 转斗指示板 Indicator plate Y 1

23 4015000025 垫圈GB93-10-65Mn Spring washer Y 1

24 4013000007 螺母GB6170-M10EpZn-8 Nut Y 1

25 29140000021 固定板 Anchor plate Y 1

26 29140006521 转斗指示杆 Indicator plate Y 1
