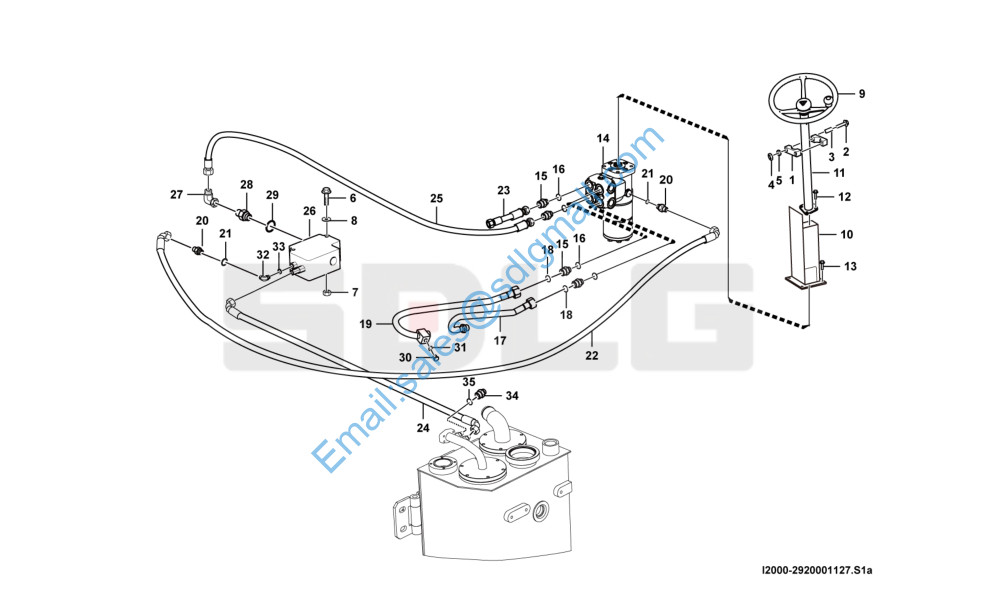

L920 转向器总成 Steering gear I2000-2920001127

1 29310011251 固定板 Anchor plate Y 2

2 4011000528 螺栓GB16674-M10*100EpZn-8.8 Bolt Y 2

3 29310011301 调整座 Block Y 2

4 4013000007 螺母GB6170-M10EpZn-8 Nut Y 2

5 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 6

6 4011000493 螺栓GB16674-M8*90EpZn-8.8 Bolt Y 2

7 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

8 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

9 4120000018 方向盘FXP-50F Steering wheel Y 1

10 29310024341 固定架 Bracket Y 1

11 4120005406 转向柱LG20-ZXZ-28 Steering column Y 1

12 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 4

13 4011000479 螺栓GB16674-M12*30EpZn-8.8 Bolt Y 4

14 4120003949 转向器BZZ5-320A Control valve Y 1

15 4041000564 直接头LGB120-02620 Nipple Y 4

16 4041000783 O形圈LGB168-11724 O-ring Y 4

17 29200008561 转向器出油钢管A Pipe Y 1

18 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2

19 29200004031 转向器出油钢管B Hose assembly Y 1

20 4041000131 直接头LGB120-01412 Nipple Y 3

21 4041000784 O形圈LGB168-10924 O-ring Y 3

22 4041002519 软管LGB128-003100 Hose assembly Y 1

23 4041000945 软管LGB165-010070 Hose Y 1

24 4041000514 软管LGB165-003121 Hose assembly Y 1

25 4041000590 软管LGB127-010110 Hose assembly Y 1

26 4120000709 优先阀VLE-150 Priority valve Y 1

27 29200007931 直角接头 Nipple Y 1

28 4041000187 直接头LGB120-02622 Nipple Y 1

29 4041000771 O形圈LGB168-11924 O-ring Y 1

30 4041000774 螺塞LGB135-01422 Plug Y 1

31 4041000767 O形圈LGB168-11124 O-ring Y 1

32 4041001047 组合接头LGB143-01406 Nipple Y 2

33 4030000289 O形圈GB3452.1-16.0*1.80G O-ring Y 2

34 4041000187 直接头LGB120-02622 Nipple Y 1

35 4041000771 O形圈LGB168-11924 O-ring Y 1
