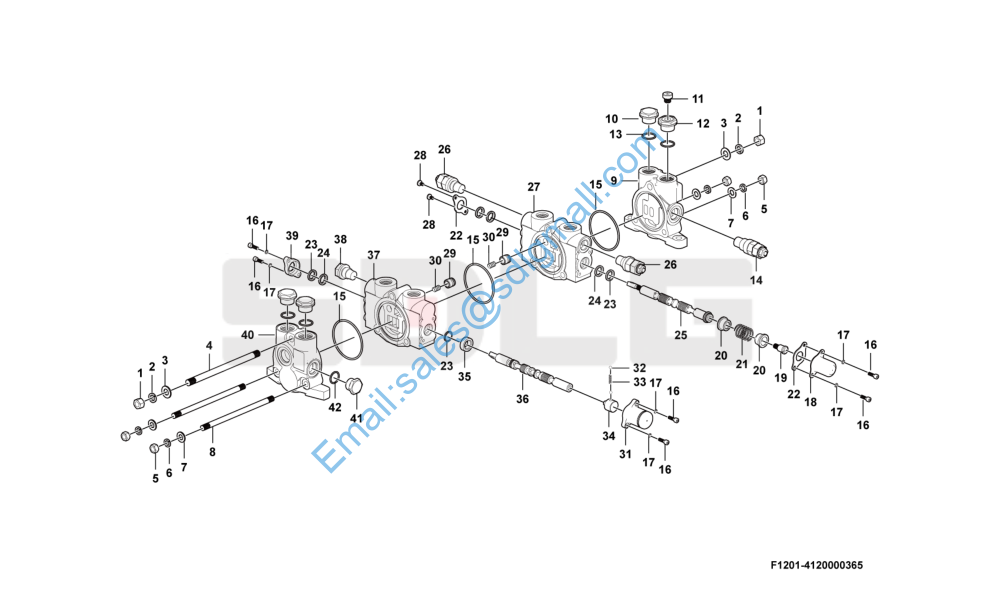

L920 多路阀(331005) Control valve assembly F1201-4120000365

1 4013000190 螺母GB6173-M14*1.5EpZn-05 Nut Y 2

2 4015000027 垫圈GB93-14-65Mn Spring washer Y 2

3 4015000479 P-垫圈GB848-14EpZn-300HV Washer Y 2

4 4120000365101 螺栓DL20-8.00 M14x1.5×227 Bolt Y 1

5 4013000137 螺母GB6173-M12*1.25EpZn-05 Nut Y 4

6 4015000026 垫圈GB93-12-65Mn Spring washer Y 4

7 4015000004 垫圈GB848-12EpZn-300HV Washer Y 4

8 4120000365102 螺栓DL20-9.00 M12x1.25×227 Bolt Y 2

9 4120000365103 进油阀体DL20-1.01a Valve body N 1

10 4120000365104 螺塞DL20-7.03 Plug Y 3

11 4120000365105 内六角堵头4WN-14WD M14x1.5 Plug Y 1

12 4120000365106 螺塞DL20-7.03a Plug Y 1

13 4030000024 O形圈GB3452.1-26.5*2.65G O-ring Y 3

14 4120000365107 安全阀XDYF25-01 Safety valve Y 1

15 4030001223 P-O形圈GB3452.1-87.5*3.55G O-ring Y 3

16 4014000205 螺钉GB70.1-M6*14EpZn-8.8 Screw Y 6

17 4015000480 P-垫圈GB859-6-65Mn Washer Y 6

18 4120000365108 定位端盖DL20-2.06 Valve cover Y 2

19 4120000365109 定位螺钉DL20-2.05 Screw Y 1

20 4120000365110 弹簧座DL20-2.03 Spring seat Y 2

21 4120000365111 弹簧DL20-2.04 Φ2.4 *Φ29.2 *76.5 Spring Y 1

22 4120000365112 垫板DL20-2.10 Plate Y 2

23 4120000365113 防尘圈DL20-2.09 Sealing ring Y 4

24 4030001224 P-O形圈GB3452.1-19*3.55G O-ring Y 4

25 4120000365114 O型阀杆DL20-2.08a1-00 Valve rod N 1

26 4120000365115 二次溢流阀XDYF20-02 Relief valve Y 2

27 4120000365116 阀体DL20-2.07 Valve body N 1

28 4014000578 P-螺钉GB67-M6*10EpZn-4.8 Screw Y 2

29 4120000365117 单向阀DL20-2.02 Non-return valve Y 2

30 4120000365118 弹簧DL20-2.01 Φ11.2 *Φ0.7 *32 Spring Y 2

31 4120000365119 定位端盖DL20-3.01b Valve cover Y 2

32 4090000379 P-钢球GB308-1/4″-GCr15 Ball Y 2

33 4120000365120 弹簧DL20-3.03 Φ1.1 *Φ6 *26 Spring Y 1

34 4120000365121 球座DL20-3.02 Ball housing Y 1

35 4120000365122 限位套DL20-3.15 Stop sleeve Y 1

36 4120000365123 Q型阀杆DL20-3.06b Valve rod N 1

37 4120000365124 阀体DL20-3.05b Valve body N 1

38 4120000365125 补油阀FDF10-02 Valve Y 1

39 4120000365126 压板DL20-3.16 Plate Y 1

40 4120000365127 回油阀体DL20-7.01a Valve body N 1

41 4120000365128 螺塞DL20-7.02 Plug Y 1

42 4030000097 O形圈GB3452.1-23.6*2.65G O-ring Y 1
