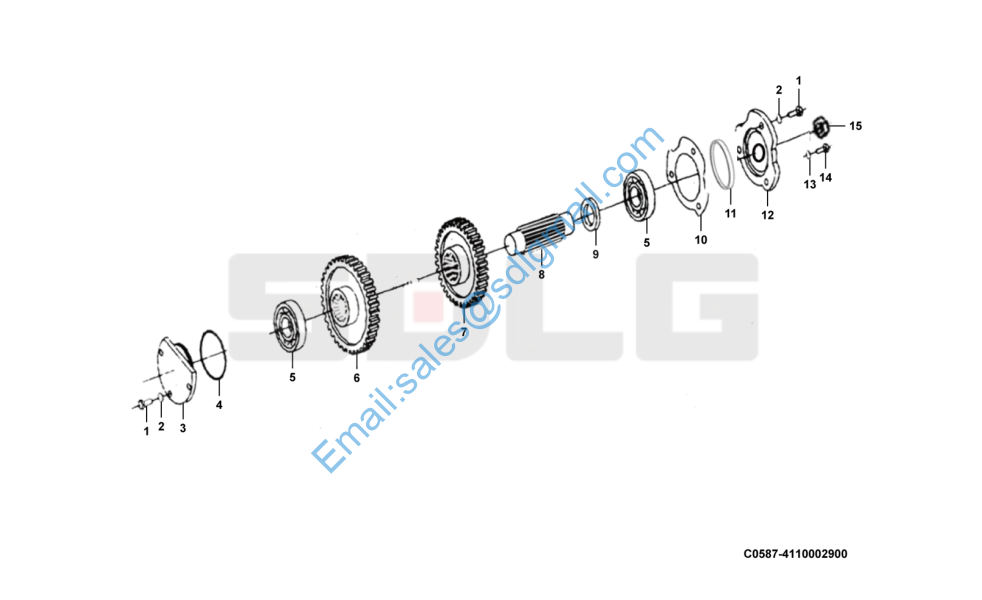

L920 变速箱中间轴部分BYD2206LQ0004(370804) Transmission assembly C0587-4110002900L920 变速箱中间轴部分BYD2206LQ0004(370804) Transmission assembly C0587-4110002900

1 4110000960005 螺栓01010-81025 Screw Y 6

2 4110000004001 弹性垫圈01602-21030 Retaining ring Y 6

3 4110000218048 端盖BD05-00018 Cover plate Y 1

4 4110002900027 O型圈07000-12085 O-ring Y 1

5 4021000171 P轴承GB297-30308 Roller bearing Y 2

6 4110002900028 齿轮BD06-00017-04 Gear Y 1

7 4110002900029 齿轮BD06-00002 Gear Y 1

8 4110002900030 中间轴BD06-00003 Shaft Y 1

9 4110002900024 隔套BD06-00020 Spacer Y 1

10 4110002900031 密封垫BD06-00006 Sealing washer Y 1

11 4110002900032 调整环BD06-00029 Adjusting ring Y 1

12 4110002900033 端盖BD06-00004 Cover Y 1

13 4110000499027 止动片1BD08-00003 Retaining ring Y 1

14 4110001984058 六角螺栓M6*6 BD08-00050 Screw Y 1

15 4110000499029 调整螺丝1BD08-00005 Adjuster bolt Y 1
