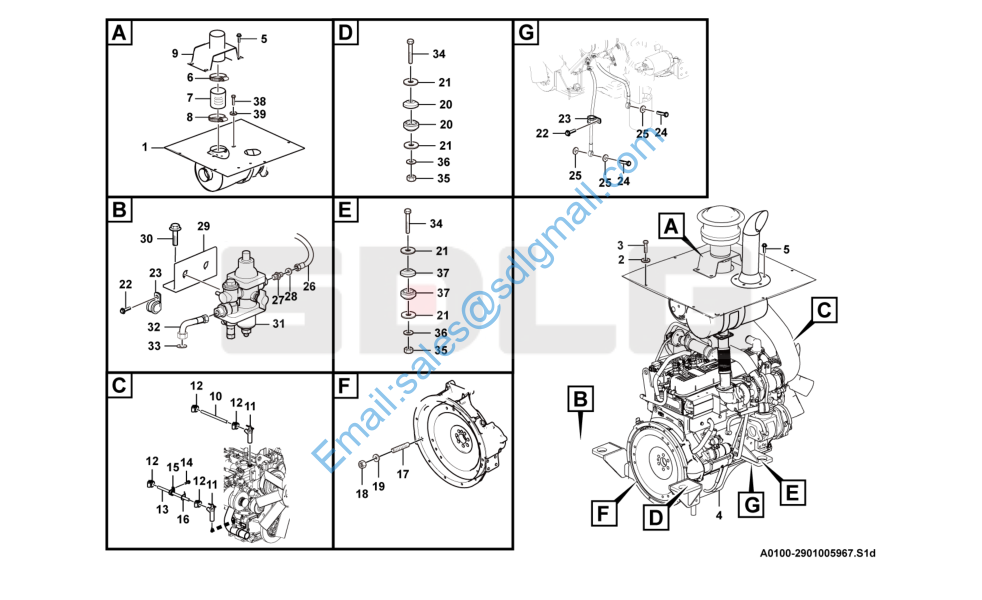

L920 发动机总成 Engine A0100-2901005967

1 29010059611 上盖板 Cover plate Y 1

2 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 10

3 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 10

4 4110003058 发动机总成 YC4D90-T350(D8YG0) Engine Y 1

5 4011001432 螺栓GB16674-M10*20flZnyc-8.8-480 Screw N 8

6 4017000006 喉箍JB8870-d100 Clamp Y 1

7 29010059701 进气胶管 Hose Y 1

8 4017000012 喉箍JB8870-d110 Clamp Y 1

9 29010059651 连接钢管 Pipe Y 1

10 4090000385 胶管HG2491-16*1200 Hose Y 1

11 4120000067 暖风机水阀LG12-NFJSF Valve Y 2

12 4017000024 环箍QC390-D26 Clamp Y 4

13 4090000195 胶管HG2491-16*1500 Hose Y 1

14 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 1

15 4041002384 管夹LGB169-A25*12.5 Clamp Y 3

16 4190001833 扎丝RTGB-300ST Cable tie Y 4

17 29010006591 双头螺栓 Stud Y 9

18 4013000011 螺母GB6170-M12EpZn-8 Nut Y 9

19 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 9

20 29010012051 减震垫 Shock absorber Y 4

21 29010059711 垫圈 Washer Y 8

22 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 5

23 4041002412 管夹LGB169-A20*10 Clamp Y 4

24 4011000641 螺栓JB6013-M14*1.5EpZn-45 Bolt Y 2

25 4015000121 垫圈JB982-14 Washer Y 4

26 4041002734 软管LGB173-106090 Hose assembly Y 1

27 29220017601 直接头 Nipple Y 2

28 29220000811 垫圈 Washer Y 2

29 29220020071 油水分离器支架 Bracket Y 1

30 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 2

31 4120000084 油水分离器组合阀ST-50G Valve Y 1

32 29220025781 金属软管LG09-JSRG-1750 Pipe Y 1

33 29220000171 垫圈 Washer Y 2

34 4011000656 螺栓GB5785-M16*1.5*110EpZn-8.8 Bolt Y 4

35 4013000129 螺母GB889.2-M16*1.5EpZn-8 Lock nut Y 4

36 4015000181 垫圈GB97.1-16EpZn-300HV Washer Y 4

37 29010012001 减震垫 Shock absorber Y 4

38 4011001304 螺栓GB5783-M10*45flZnyc-8.8-480 Screw Y 4

39 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4
