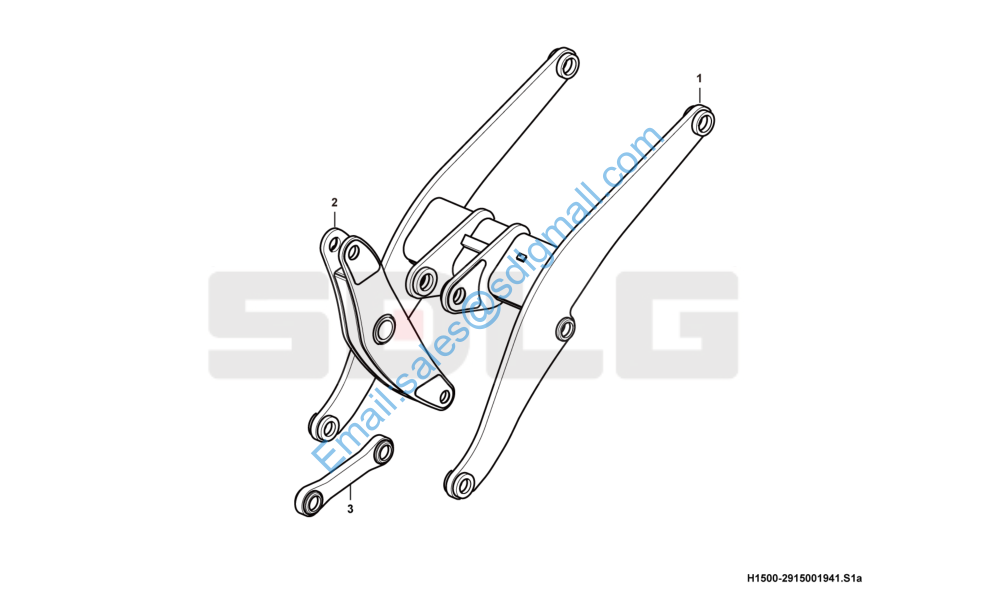

L920 连杆机构 Linkage system H1500-2915001941

1 29150019421 动臂 Lifting arm Y 1
2 29150017061 摇臂 Rocker arm Y 1
3 29150006541 连杆体 Connecting rod N 1

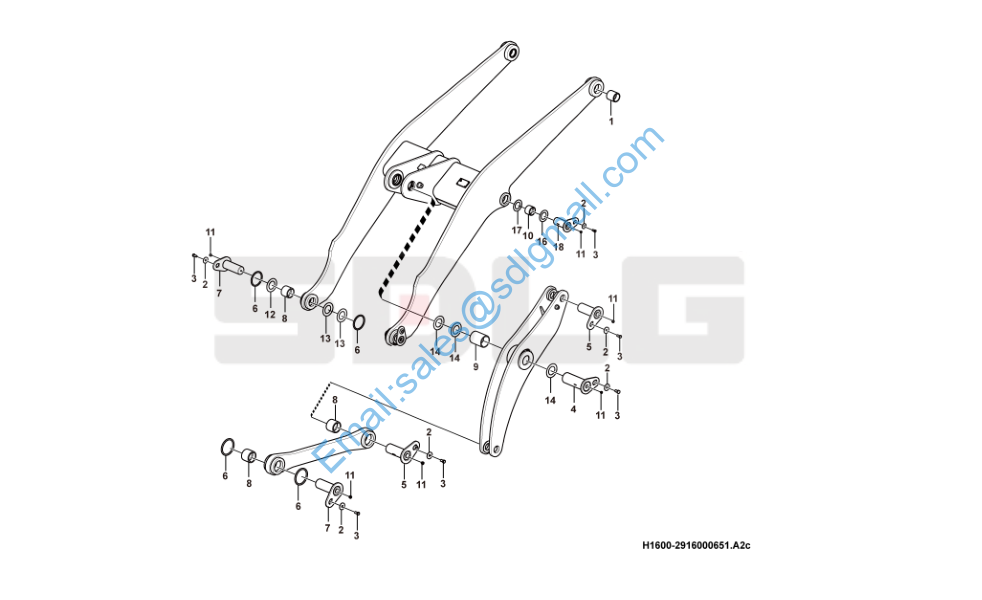

工作装置附件 Working equipment accessory H1600-2916000651

1 4043000156 轴套LGB302-60*90B2 Bushing Y 2

2 4040000001 垫圈LGB001-12 Washer Y 8

3 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 8

4 4043000138 销轴LGB301-75*109*200-40Cr Weld pin Y 1

5 4043000137 销轴LGB301-50*75*135-40Cr Weld pin Y 2

6 4043000069 O形圈LGB308-88*8 O-ring Y 6

7 4043000136 销轴LGB301-50*83*150G-40Cr Weld pin Y 3

8 4043000132 轴套LGB302-50*50B2 Bushing Y 4

9 4043000135 轴套LGB302-75*110B2 Bushing Y 1

10 4043000157 轴套LGB302-50＊58B2 Bushing Y 2

11 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8

12 4043000032 垫片LGB303-50*90*1 Shim Y 4

13 4043000330 垫片LGB303-50*90*2 Shim Y 2

14 4043000331 垫片LGB303-75*130*1 Shim Y 2

15 4043000332 垫片LGB303-75*130*2 Shim Y 1

16 4043000067 垫片LGB303-50*100*1 Shim Y 4

17 4043000333 垫片LGB303-50*100*2 Shim Y 2

18 4043002168 销轴LGB301-50*75*135-1200G Weld pin Y 2
