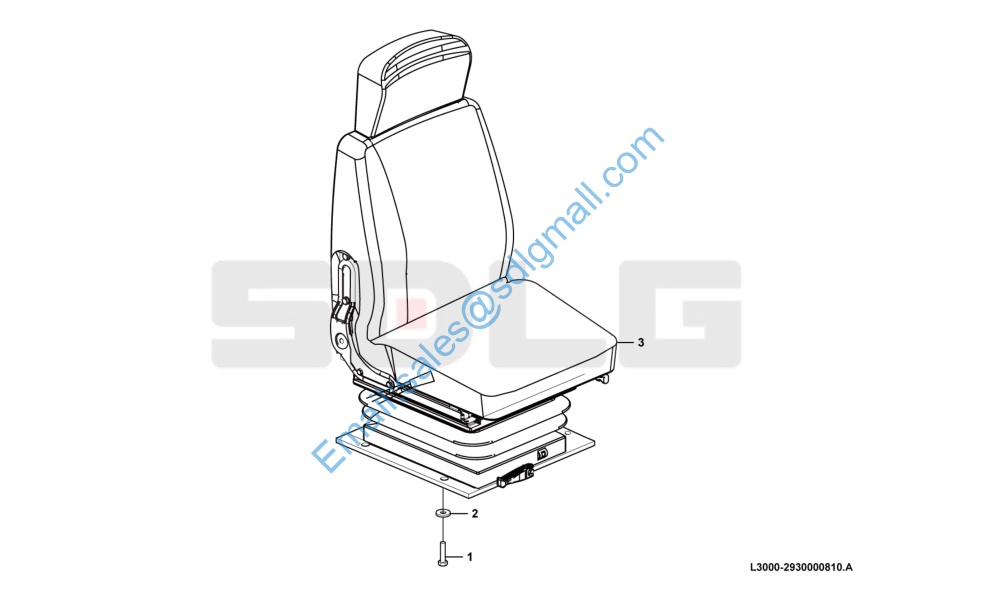

L920 座椅总成 Driver seat assembly L3000-2930000810

1 4011000106 螺栓GB5783-M8*25EpZn-8.8 Bolt Y 4

2 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 4

3 4190000924 座椅LG01 Driver s seat Y 1

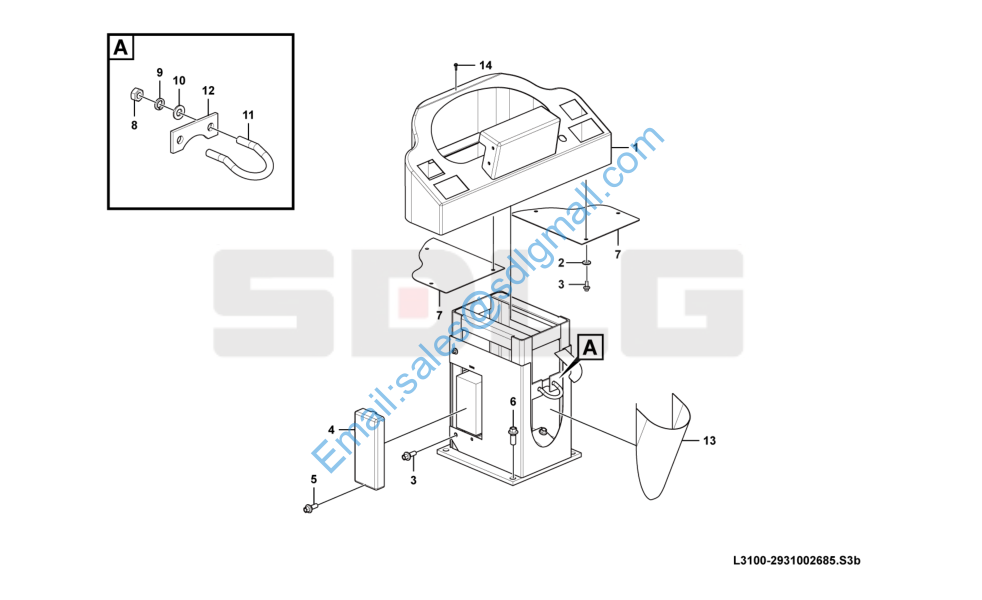

仪表台支架 Bracket L3100-2931002685

1 29310026901 仪表盘支架焊接总成 Bracket Y 1

2 4015000437 垫圈GB96.1-6flZnyc-300HV-480 Washer Y 11

3 4011001285 螺栓GB5783-M6*16flZnyc-8.8-480 Screw Y 11

4 4190000876 保险丝盖 Cover Y 1

5 4190000878 保险丝盖固定螺钉 Screw Y 1

6 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 4

7 29310027331 下盖板 Plate Y 2

8 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

9 4015000036 垫圈GB93-8-65Mn Spring washer Y 2

10 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

11 29310025191 方向机固定架 Bracket Y 1

12 29310025182 连接板 Plate Y 1

13 29310028602 转向机柱盖板 Plate Y 1

14 4014000522 自攻螺钉GB845-ST4.2*13flZnyc-480-C-H Screw Y 1
