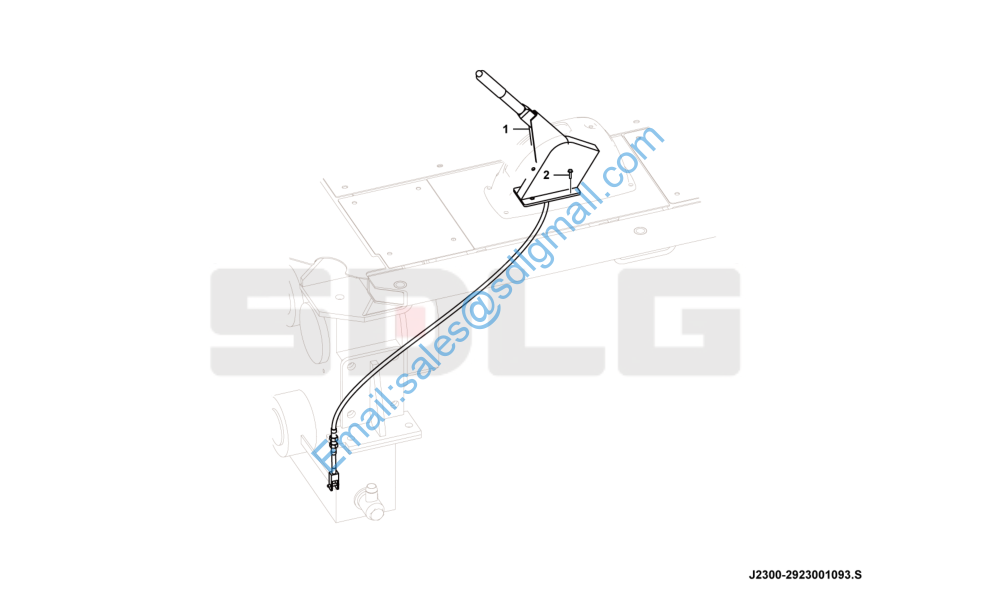

L918 驻车制动总成 Parking brake syetem J2300-2923001093

1 4120008217 驻车操纵机构总成LG23-CZJG-918D Parking brake control mechanism Y 1

2 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 4

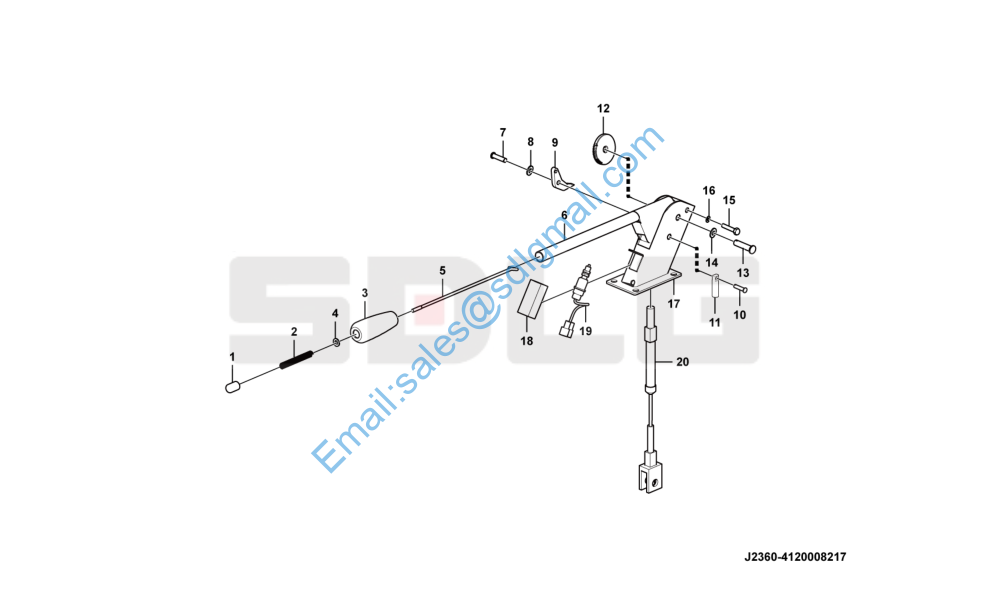

驻车操纵机构总成LG23-CZJG-918D(130501) Parking brake control mechanismJ 2360-4120008217

1 4110002042001 镀铬头LGS9530001 Release button Y 1

2 4110002042002 弹簧LGS9530004 Spring Y 1

3 4110002042003 手柄套LGS953N0001 Handling equipment Y 1

4 4110002042004 平垫Φ8*Φ17*1.5 PD-002-1 Washer Y 1

5 4110002042005 钢丝钩LGS953N0002 Hook Y 1

6 4120006447001 手柄焊合件LGS953N0000b Handle Y 1

7 4110002042007 销子Φ8*33 LGS9530006 Pin Y 1

8 4110002042019 平垫Φ8 PD-002 Washer Y 2

9 4110002042008 棘钩LGS9530008 Hanger Y 1

10 4110002042009 销子Φ8*28 LGS9530003 Pin Y 1

11 4110002042010 内接头LGS9530013 Nipple Y 1

12 4110002042011 棘轮LGS9530002 Ratchet Y 1

13 4110002042012 销子Φ12-51 LGS9530005 Pin Y 1

14 4110002042013 平垫Φ12 PD-004 Washer Y 1

15 4110002042014 螺栓M8-15 LGS9530011 Screw Y 1

16 4110002042020 弹垫Φ8 TD-002 Washer Y 1

17 4120006447002 手刹盒焊合件LGS953N0000a Brake chamber Y 1

18 4110002042016 开关罩LGS9530010 Switch box Y 1

19 4110002042017 开关总成LGS9530012-001 Switch kit Y 1

20 4120008217001 拉索总成4120008127-01 Brake wire N 1
