L918 蒸发器(330112) Evaporator system N3561-4190002757

1 29350010161 上壳 Closure Y 1

2 4190002843 蒸发风机 Fan Y 1

3 4130002629 蒸发器线束 Cable harness Y 1

4 4190002845 固定卡 Clamp Y 9

5 4190002826 换热器芯体组件 Cell core Y 1

6 29350010181 下壳 Closure Y 1

7 4190002822 膨胀阀 Expansion valve Y 1

8 4190002848 连接管组件 Hose Y 1

9 4190002830 固定板 Bracket Y 1

10 4190002827 蒸发器芯体 Cell core Y 1

11 4190002825 传感器 Sensor N 1

12 4130002630 继电器 Relay Y 2

13 4013000210 螺母GB889.1-M8EpZn-8 Nut Y 6

14 4014000302 螺钉GB819.1-M5*12EpZn-4.8 Screw Y 4

15 4014000397 螺钉GB70.1-M5*40EpZn-8.8 Screw Y 2

16 4014000398 螺钉GB818-M5*25EpZn-4.8 Screw Y 2

17 4015000034 垫圈GB93-5-65Mn Spring washer Y 2

18 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 2

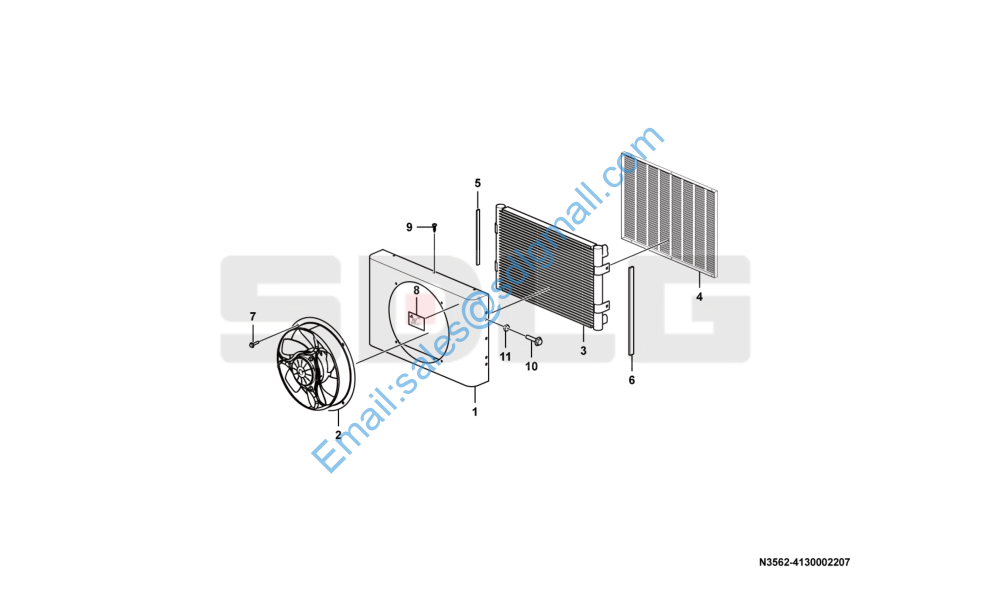

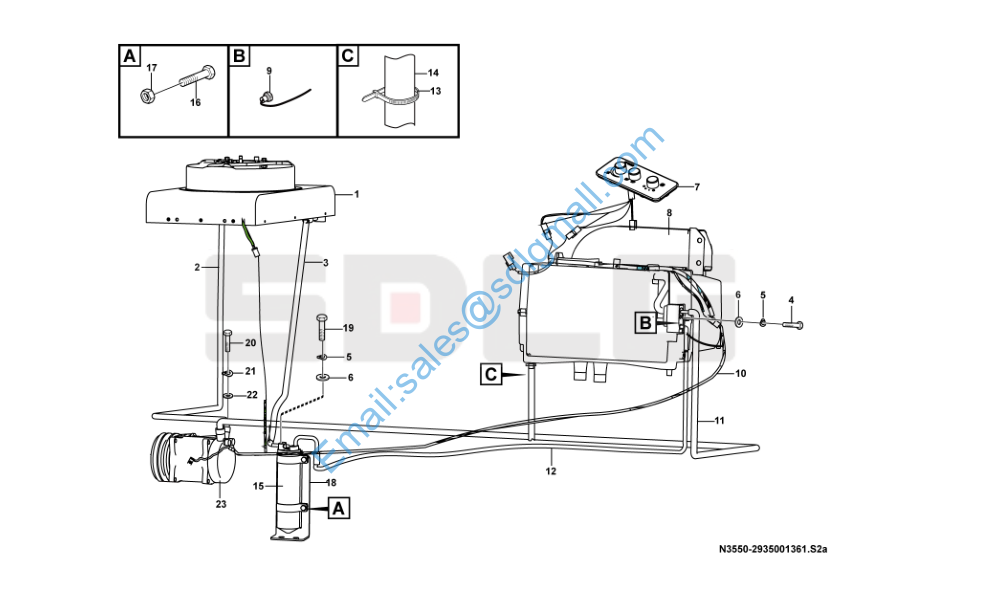

冷凝器总成 Condenser N3562-4130002207

1 4120002207001 冷凝器壳体GKL33-5.0D-10 Closure Y 1

2 4120002207002 冷凝风机TB5417 Fan Y 1

3 4120002207003 冷凝器芯GKL33-5.0D-20 Condenser Y 1

4 4120002207004 冷凝器进风网GKL33-5.0D-30 Fan guard Y 1

5 4120002207005 PU不干胶T7101-316-20-3 Rubber plate Y 2

6 4120002207006 PU不干胶T7103-490-25-10 Rubber plate Y 2

7 4130002211001 螺栓GB90748-M6*16 Screw Y 4

8 4190002907009 铭牌T0021 Name plate N 1

9 4014000428 P-螺钉GB845-ST4.2*16-C-H Screw Y 6

10 4190002123012 螺栓GB5787-86 M6%x16 Y 4

11 4013000358 螺母GB6187.1-M6EpZn-8 Nut Y 4
