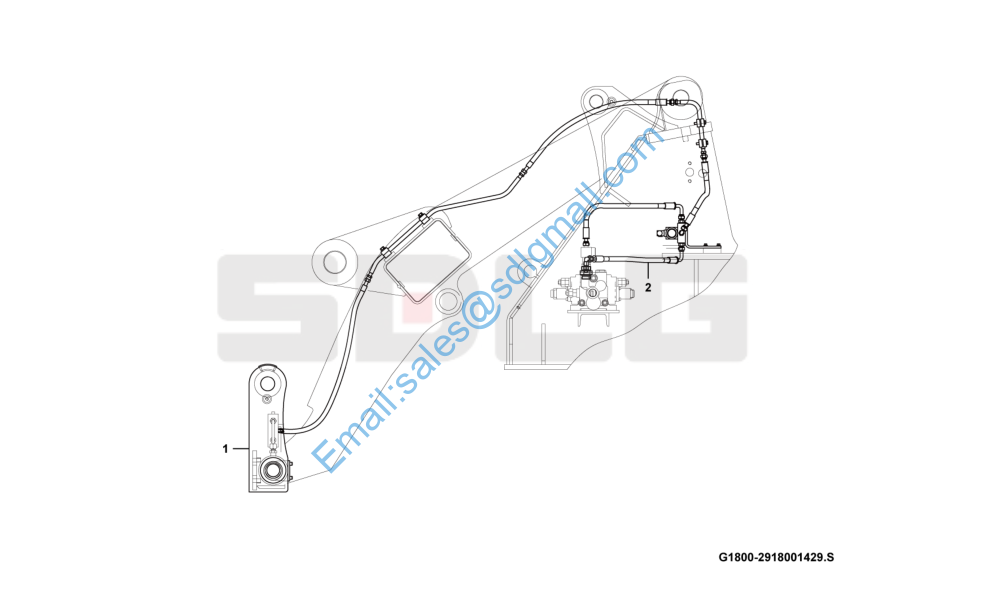

L918 快换装置 Quick coupler equipment G1800-2918001429

1 29180007631 快换支架 Quick attachment Y 1
2 29180014331 快换装置液压总成 Quick-change equipment hydraulic system N 1

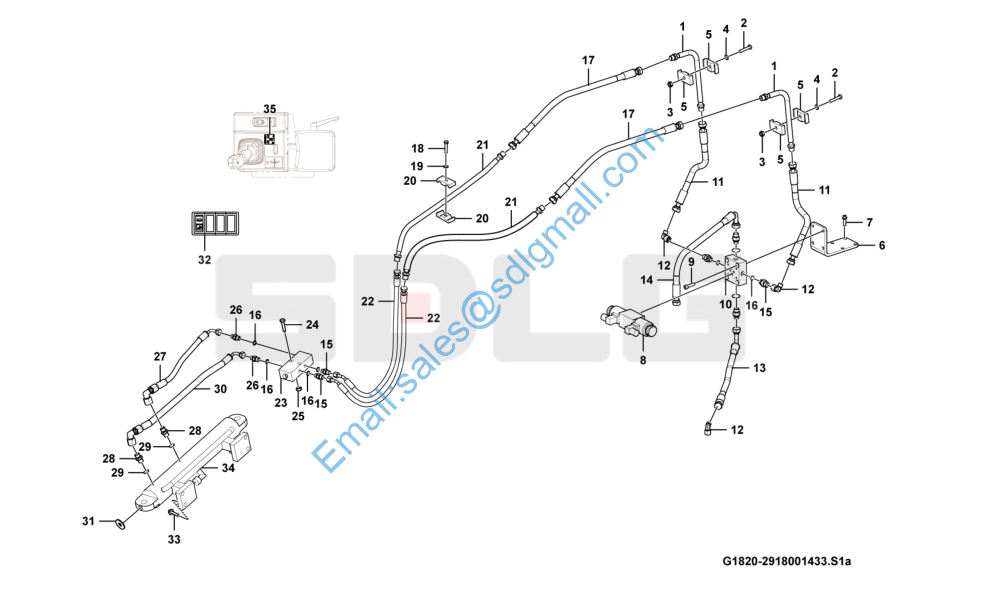

快换装置液压总成 Quick coupler hydraulic system G1820-2918001433

1 29180014311 过渡钢管 Pipe Y 2

2 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 2

3 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2

4 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2

5 29180013981 固定压板 Plate Y 4

6 29180014301 电磁阀固定板 Bracket Y 1

7 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 4

8 4120000368 电磁阀4WE6E61B/CG24NZ4B08 Solenoid valve Y 1

9 4014000513 螺钉GB70.1-M8*30flZnyc-8.8-480 Screw Y 4

10 29180007862 电磁阀座 Valve seat Y 1

11 4041000997 软管LGB127-004040 Hose Y 2

12 4041001023 组合接头LGB143-01608 Nipple Y 3

13 4041000627 软管LGB128-004055 Hose assembly Y 1

14 4041000592 软管LGB125-004055 Hose assembly Y 1

15 4041000604 直接头LGB120-01614 Nipple Y 6

16 4041000767 O形圈LGB168-11124 O-ring Y 8

17 4041002892 软管LGB127-404082 Hose Y 2

18 4011001405 螺栓GB5783-M8*40flZnyc-8.8-480 Screw Y 2

19 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2

20 29180007961 固定压板 Plate Y 4

21 29180007971 快换联钢管 Pipe Y 2

22 4041000608 软管LGB128-204110 Hose assembly Y 2

23 4120001741 液压锁BQ2201-7E Check valve Y 1

24 4014000615 螺钉GB70.1-M8*55flZnyc-8.8-480 Screw Y 2

25 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 2

26 29180008001 直接头 Nipple Y 2

27 29180008011 液压锁至油缸大腔油管 Hose assembly Y 1

28 29180008041 接头体 Nipple Y 2

29 4030000058 垫圈JB1002-18-T2 Washer Y 2

30 29180008071 液压锁至油缸小腔油管 Hose assembly Y 1

31 29180009231 挡尘板 Dust cover Y 2

32 29370011901 快换线束总成 Wiring harness Y 1

33 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480 Bolt Y 4

34 4120001321 双杆液压缸HSGL-60*35*55-580 Cylinder Y 1

35 29180010721 快换操纵标志 Decal Y 1
