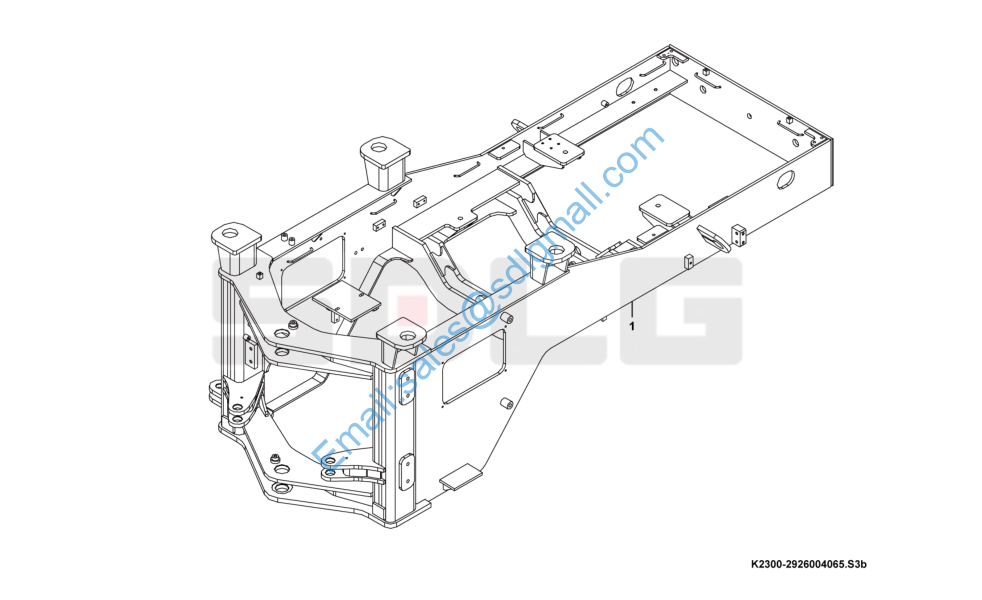

L918 后车架 Rear frame system K2300-2926004065

1 29260040653 后车架 Rear frame Y 1

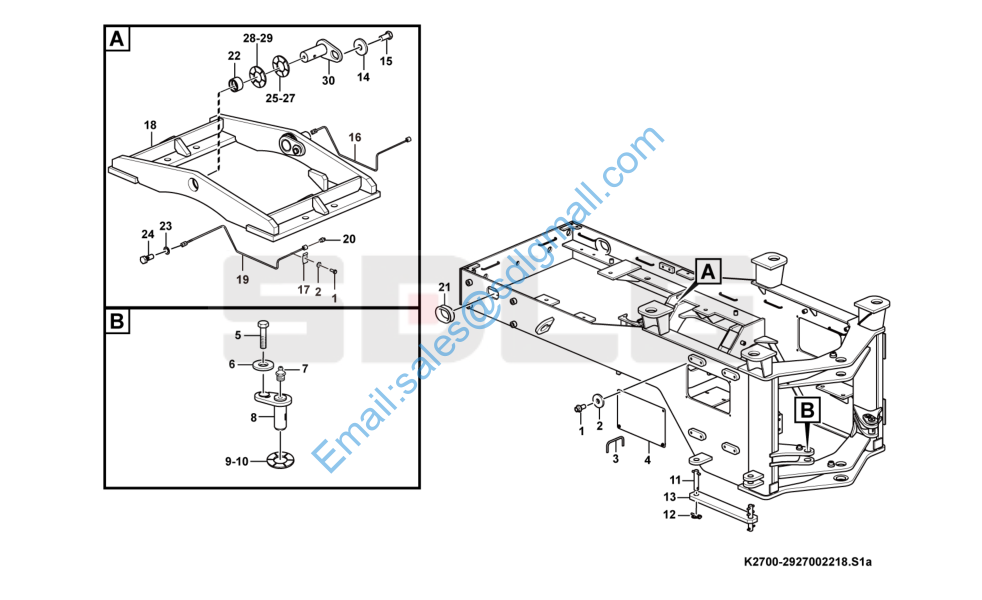

后车架附件 Rear frame system K2700-2927002218

1 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 7

2 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 7

3 4043001018 卡子胶条LGB320-U260 Sealing strip Y 1

4 29270006701 盖板 Cover plate Y 2

5 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 2

6 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 2

7 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 4

8 29270019011 转向销轴 Weld pin Y 2

9 4043000326 垫片LGB303-35*60*1 Shim Y 4

10 4043000327 垫片LGB303-35*60*2 Shim Y 4

11 29270019061 锁定销轴 Pin Y 2

12 29270000081 卡环 Lock ring Y 2

13 29270006671 锁定杆 Transport lock Y 1

14 4040000001 垫圈LGB001-12 Washer Y 2

15 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2

16 29270019041 副车架后油管 Lubricating pipe Y 1

17 29270021761 压板 Plate Y 1

18 29270008621 副车架 Rear axle bridge Y 1

19 29270019021 副车架前油管 Lubricating pipe Y 1

20 29250014121 接头 Nipple Y 2

21 29270009101 走线胶套 Rubber sleeve Y 2

22 29270006741 套 Sleeve Y 2

23 29250000301 垫片 Shim Y 6

24 29250000291 通油螺栓 Bolt Y 2

25 29270006751 调整垫片 Shim Y 2

26 29270006761 调整垫片 Shim Y 2

27 29270006771 调整垫片 Shim Y 2

28 29270009291 调整垫片 Shim Y 2

29 29270009281 调整垫片 Shim Y 2

30 4043000143 销轴LGB301-40*70R*110-40Cr Weld pin Y 2
