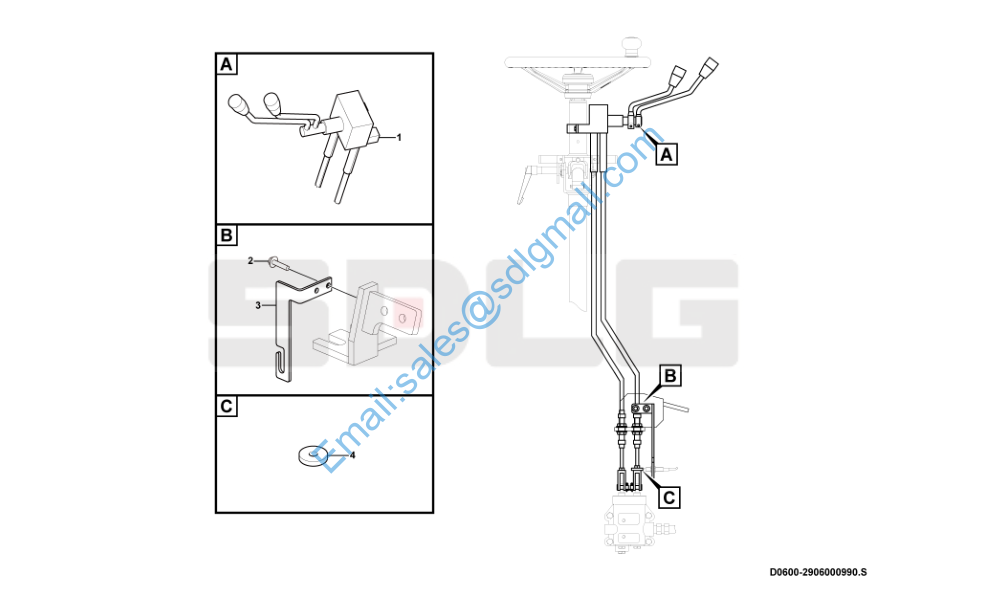

L918 变速操纵总成 Gear selector D0600-2906000990

1 4110002567 变速操纵机构LG918 Control mechanism Y 1

2 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 2

3 29060009891 支架 Bracket Y 1

4 29060009331 感应块 Block Y 1

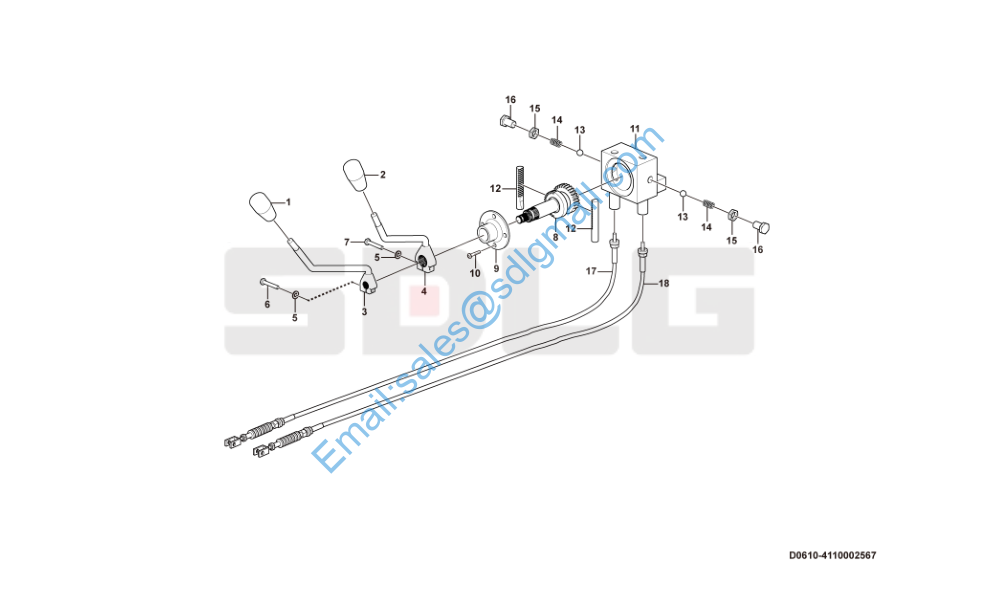

变速操纵机构LG918 Gear selector D0610-4110002567

1 4190002767001 换挡手球LGH9180001 Handle ball Y 1

2 4190002767002 高低速手球LGH9180002 Handle ball Y 1

3 4110002149001 换挡手柄焊合LGH9180003 Connecting rod Y 1

4 4190002767004 高低速手柄焊合LGH9180004 Connecting rod Y 1

5 4120000084073 垫圈6 GB/T93-1987 Washer 6 gb/t93-1987 Y 2

6 4190002767006 M6×1-25螺栓LGH9330007 Bolt N 1

7 4190002767007 M6×1-30螺栓LGH9180005 Bolt N 1

8 4110002567001 齿轮轴组合件4110002567-01 Shaft Y 1

9 4190002767009 连接颈LGH9180007 Link Y 1

10 4110001119010 M6-7沉头螺栓GB/T819.2 Screw Y 3

11 4110002567002 换挡盒焊合件4110002567-02 Box Y 1

12 4190002767011 齿条LGH9180009 Gear rack Y 2

13 4190002767016 φ8钢珠GZ-001 Ball N 2

14 4110002149005 弹簧LGH93300010 Spring Y 2

15 4190002767018 M12×1.25螺母RM-008-01 Nut rm-008-01 m12×1.25 N 2

16 4190002767019 M12×1.25-15螺栓LGH9330009 Bolt N 2

17 4110002567003 高低速软轴总成LGHR9180003 Control cable Y 1

18 4110002567004 前进后退软轴总成LGHR9180004 Control cable Y 1
