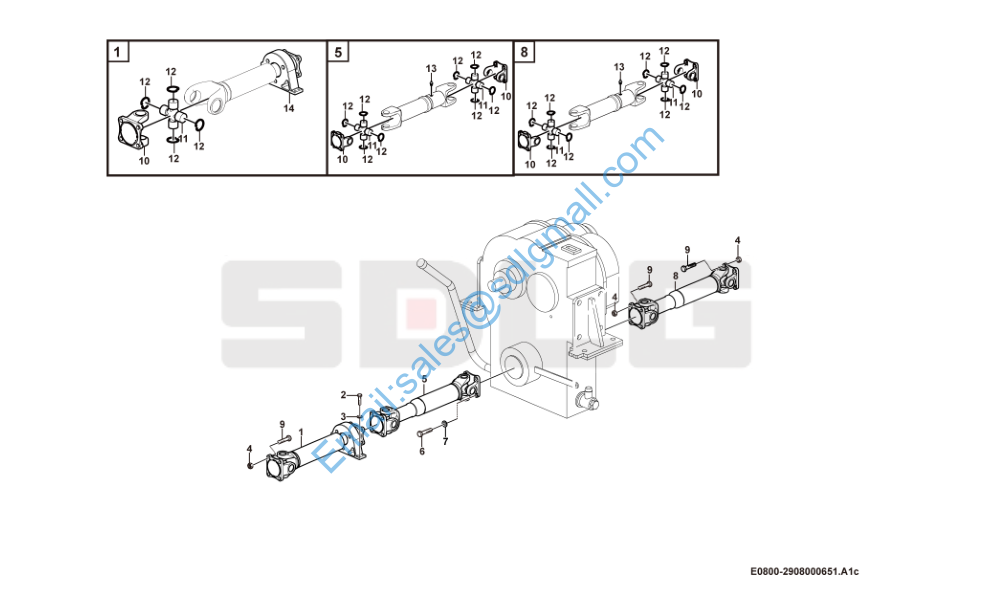

L918 传动轴总成 Propeller shaft assembly E0800-2908000651

1 29080006521 前传动轴 Propeller shaft Y 1

2 4011000568 螺栓GB5786-M12*1.25*40EpZn-10.9 Bolt Y 2

3 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

4 4013000072 螺母GB889.2-M12*1.25EpZn-10 Lock nut Y 18

5 29050006531 主传动轴 Drive shaft Y 1

6 29080001031 螺栓 Screw Y 4

7 29080008031 止动垫圈 Washer Y 2

8 29080006531 后传动轴 Propeller shaft Y 1

9 29050006541 螺栓 Screw Y 16

10 2908000653001 突缘叉130-2201023B Link yoke Y 5

11 2908000652002 万向节十字轴总成6700-33093 Spider Y 5

12 2908000653002 卡簧2201061N Lock ring Y 20

13 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 2

14 2908000652001 传动轴中间支撑 Intermediate housing Y 1
