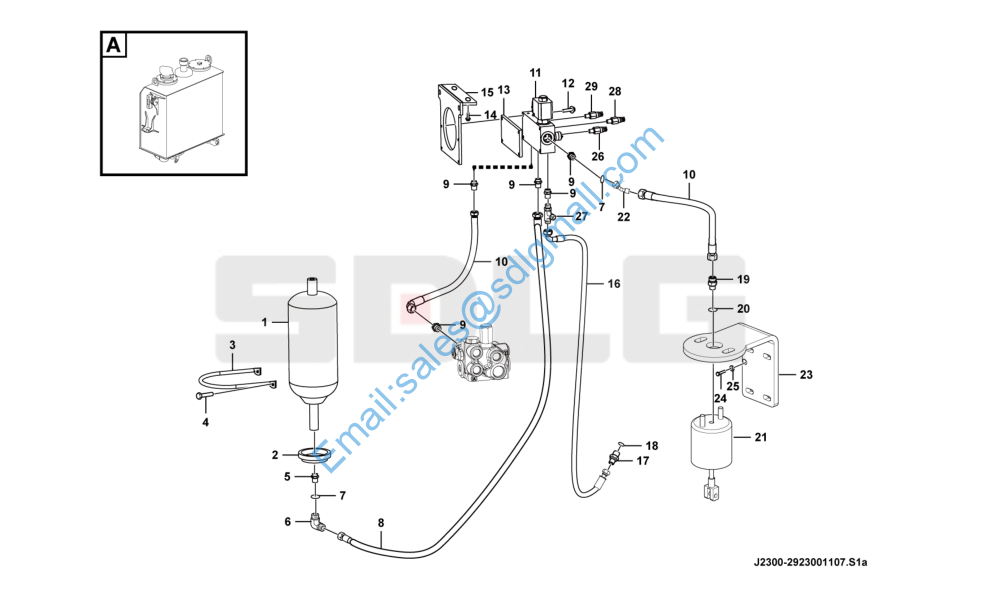

驻车制动总成 Stopping device J2300-2923001107

1 4120002705 蓄能器PED 1-1.0L-31.5 Accum ulator Y 1

2 29120017111 缓冲套 Rubber sleeve Y 1

3 29230010611 蓄能器固定板-114 Plate Y 1

4 4011001297 螺栓G B16674.1-M 8*16flZnyc-8.8-480 Screw Y 2

5 4120002703 接头G E12LR3/4ED O M D A3C N ipple Y 1

6 4041001063 组合接头LG B143-01810 N ipple Y 1

7 4030000490 O 形圈G B3452.1-10.0*1.80G O -ring Y 2

8 4041003092 软管LG B127-005083 H ose assem bly N 1

9 4190000149 接头G E12L3/4U N FO M D A3C N ipple Y 5

10 4041001989 软管LG B128-005033 H ose Y 2

11 4120004342 制动阀快 Brake valve Y 1

12 4011000587 螺栓G B16674-M 5*45EpZn-8.8 Screw Y 4

13 29230010981 固定板 Plate Y 1

14 4011001294 螺栓G B16674.1-M 10*20flZnyc-8.8-480 Screw Y 2

15 29230008961 制动阀块固定板 Plate Y 1

16 4041000152 软管LG B125-005120 H ose assem bly Y 1

17 4041000766 直接头LG B120-01818 N ipple Y 1

18 4041000768 O 形圈LG B168-11524 O -ring Y 1

19 4041003027 直接头LG B177-01816-55 N ipple Y 1

20 4041003028 矩形圈LG B176-11619 Ring Y 1

21 4120002712 液压驻车制动缸 Cylinder Y 1

22 4041001464 组合接头LG B143-11810 N ipple Y 1

23 29230010631 制动油缸支架 Bracket Y 1

24 4011001250 螺栓G B5783-M 12*30flZnyc-8.8-480 Screw Y 4

25 4015000428 垫圈G B97.1-12flZnyc-300H V -480 W asher Y 4

26 4120004312 停车制动低压报警开关 Pressure switch Y 1

27 4190000143 三通接头EL12LO M D A3C Three-way nipple Y 1

28 4120004314 紧急制动开关 Pressure switch Y 1

29 4120004313 行车制动低压报警开关 Pressure switch Y 1
