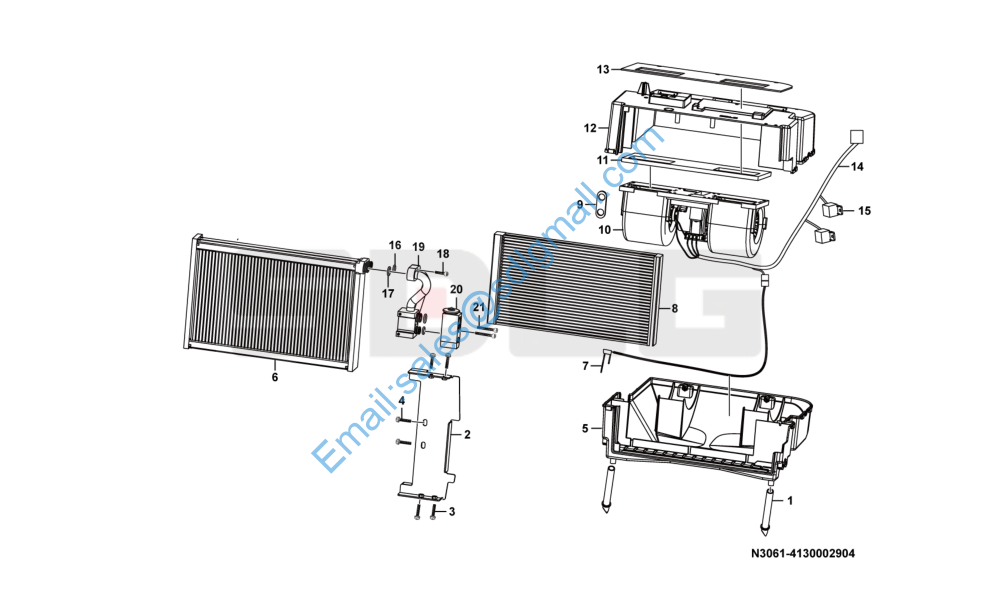

蒸发器总成(330112) Evaporator N 3061-4130002904

1 4130002911001 排水管组件G KZ33-5.0H -80 W ater pipe Y 2

2 4130002699011 挡风板G KZ33-5.0H -60 Bracket Y 1

3 4130002699012 十字沉头螺栓G B819-85 M 5*16 Screw Y 4

4 4130002911002 螺钉G B9074.8-88-M 5*16 Screw Y 2

5 4130002699006 下壳总成G KZ33-5.0H -40 Closure Y 1

6 4190002827 蒸发器芯体 Cell core Y 1

7 4130002911003 感温探头TB6510 Tem perature sensor Y 1

8 4190002826 换热器芯体组件 Cell core Y 1

9 4130002699002 护孔圈G KZ33-5.0H -05 Casing Y 1

10 4190002843 蒸发风机 Fan Y 1

11 4130002911004 密封垫G KZ33-5.0H -03 Sealing Y 1

12 4130002699007 上壳总成G KZ33-5.0H -50 Closure Y 1

13 4130002911005 密封垫G KZ33-5.0H -04 Sealing Y 1

14 4130002904001 蒸发器线束G KZ33-5.0H 3-10 W iring harness Y 1

15 4130000415004 继电器TB6301 Relay Y 2

16 4130002911007 密封圈T0001-10.8-2.4 Sealing ring Y 2

17 4130002911008 密封圈T0001-13.6-2.4 Sealing ring Y 2

18 4014000532 螺钉G B70.1-M 5*25flZnyc-10.9-480 Screw Y 2

19 4130002911009 过度管组件G KZ33-5.0H -10-10 H ose Y 1

20 4190002822 膨胀阀 Expansion valve Y 1

21 4014000397 螺钉G B70.1-M 5*40EpZn-8.8 Screw Y 2

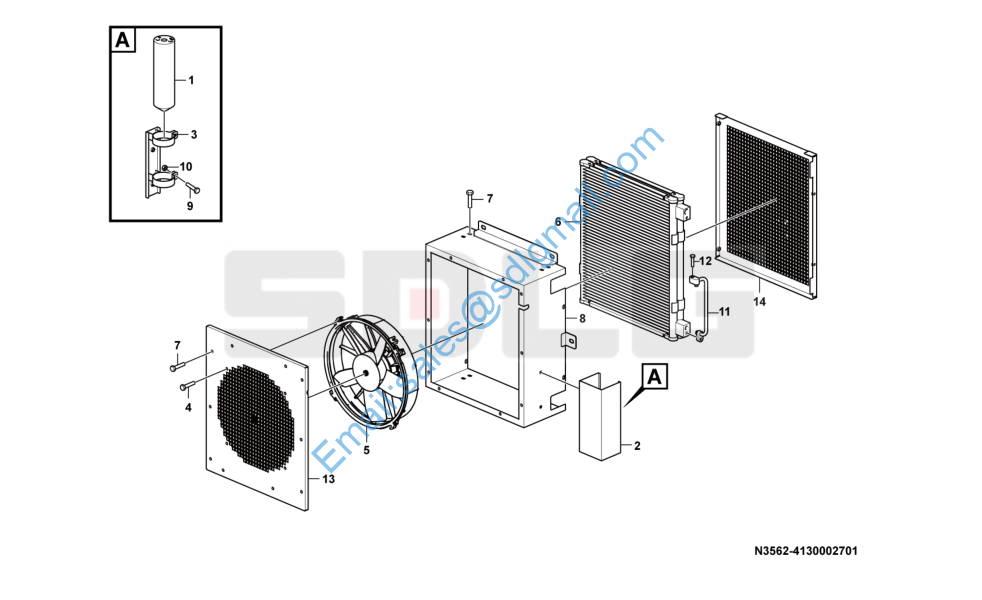

冷凝器总成(330112) Condenser N 3562-4130002701

1 4190002863 储液器 Reservoir Y 1

2 4130002453001 储液器保护架G KL33-5.0H 1-20 Bracket Y 1

3 4190002907006 储液器卡箍G KL33-5.0H 1-30 Clam p Y 1

4 4130002701001 螺栓组合件G B9074.17-88-M 6*25D CR Screw Y 5

5 4130002679001 冷凝风机G KL33-5.0H -60 Fan Y 1

6 4130002453002 冷凝器G KL33-5.0H 1-40 Condenser Y 1

7 4130002701002 螺栓组合件G B9074.17-88-M 6*12D CR Screw Y 27

8 4130002453003 冷凝器壳体G KL33-5.0H 5-20 H ousing Y 1

9 4130002701003 螺栓组合件G B9074.17-88-M 6*20D CR Screw Y 2

10 4013000451 螺母G B889.1-M 6flZnyc-8-480 N ut Y 2

11 4130002453004 连接管组件G KL33-5.0H 1-60 Pipe Y 1

12 4130002701004 螺栓组合件G B9074.17-88-M 6*30D CR Screw Y 1

13 4130002453005 出风板G KL33-5.0H 5-01 Plate Y 1

14 4130002453006 进风罩组件G KL33-5.0H 1-70 Return strainer Y 1
