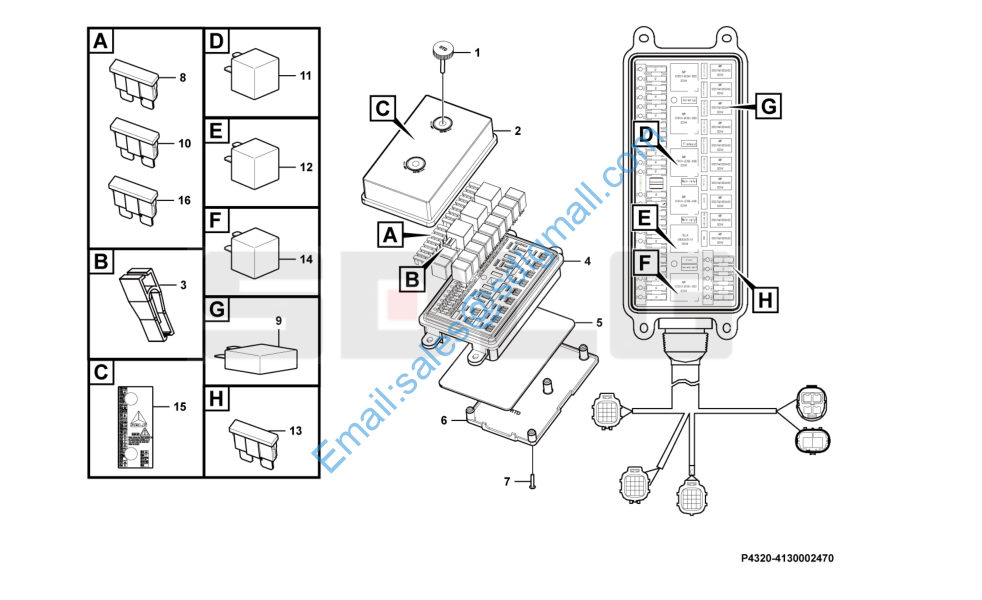

中央电器控制盒 Fuse and relay unit P4320-4130002470

1 4130001393 旋钮 Screw Y 2

2 4130001394 控制盒上盖CECB-4 Cover N 1

3 4130001330 保险夹 Clam p N 1

4 4130001395 控制盒壳体CECB-4 Cover N 1

5 4130001396 PCB板CECB-4 Plate N 1

6 4130001397 控制盒底盖CECE-4 Cover N 1

7 4130001720 螺钉G B845-M 3*16 Screw N 8

8 4130001838 保险片ATO 7.5A Fuse Y 1

9 4130001858 继电器V 23074A1002A403 Relay Y 10

10 4130001839 保险片ATO 10A Fuse Y 23

11 4130001843 电源继电器V 23134-J0056-X408 Relay Y 2

12 4130002075 闪光灯继电器4D B003675-01 Flasher relay Y 1

13 4130001837 保险片ATO 5A Fuse Y 4

14 4130001844 继电器 V 23234-A0004-X053 Relay Y 3

15 4130002471 保险丝电路标识 D ecal Y 1

16 4130001859 保险片ATO 30A Fuse Y 1

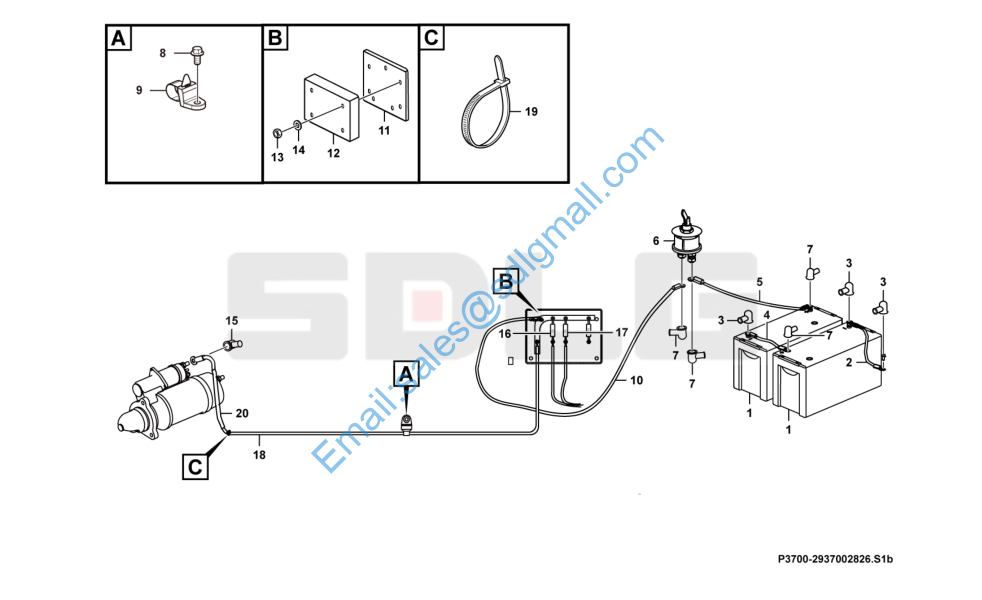

电源电气总成 Power electric system P3700-2937002826

1 4130000057 蓄电池6-Q W -120B W et battery N 2

2 4045000066 电瓶线LG B340-70*500P1L10L8-3L1 Battery cable N 1

3 26370002441 黑电瓶线护套 Cable sleeve Y 3

4 4045000065 电瓶线LG B340-70*300P1L10L10-3L1 Battery cable N 1

5 4045000067 电瓶线LG B340-70*420P1L10L10-3L1 Battery cable N 1

6 4130000427 电源开关K01K18-A Battery switch Y 1

7 26370002451 红电瓶线护套 Cable sleeve Y 4

8 4011001297 螺栓G B16674.1-M 8*16flZnyc-8.8-480 Screw Y 4

9 3214558810 STRIP CLAM P Strip clam p N 1

10 4045000064 电瓶线LG B340-70*3300P1L10L10-3L1 Battery cable N 1

11 29370028642 板 Plate N 1

12 11170016 FU SE BO X Fuse box N 1

13 4013000373 螺母G B6170-M 8flZnyc-8-480 N ut Y 4

14 4015000430 垫圈G B97.1-8flZnyc-300H V -480 W asher Y 4

15 21666462 TERM IN AL CAP Term inal cap N 1

16 4130002396 保险片 M EG A80A(U L) Fuse Y 1

17 4130002674 保险片 M EG A150A (U L) Fuse N 1

18 4045000129 电瓶线LG B340-50*1050A2L10L10-3L1 Battery cable N 1

19 4190000020 扎丝LG 13-ZS4*250 Cable tie Y 10

20 29370025191 隔热海绵 Sponge Y 1
