SDLG L958F 驾驶室附件 Cab accessory L3100-2931002946 进风系统 Fresh air inlet syetem L3110-2935001047

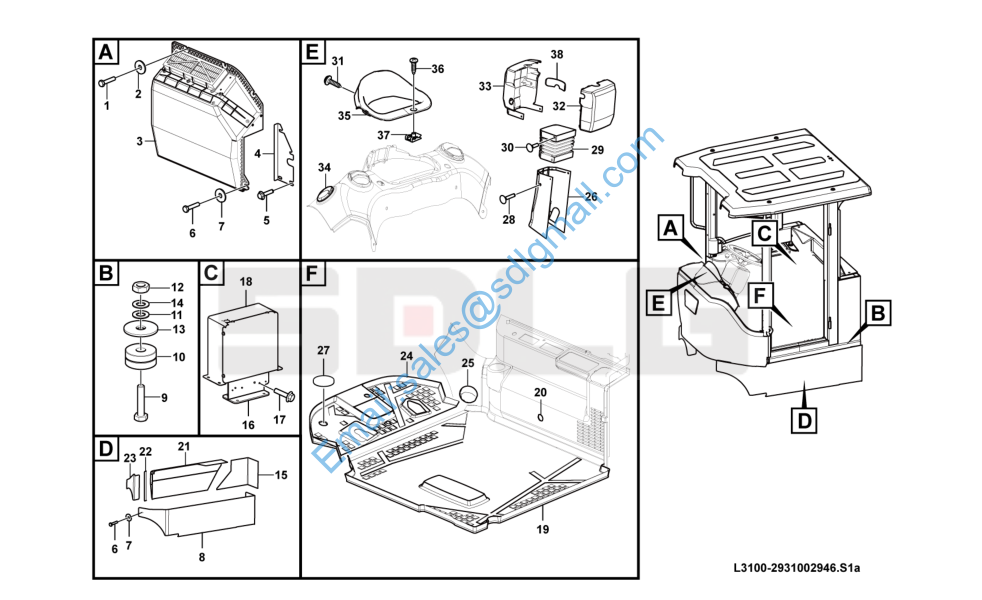

Cab accessory L3100-2931002946

1 4011001285 螺栓G B5783-M 6*16flZnyc-8.8-480 Screw Y 10
2 4015000437 垫圈G B96.1-6flZnyc-300H V -480 W asher Y 10
3 29350010471 进风系统 V entilation unit Y 1
4 29310016951 隔板 Spacer plate Y 1
5 4011001296 螺栓G B16674.1-M 8*20flZnyc-8.8-480 Screw Y 4
6 4011001247 螺栓G B5783-M 8*20flZnyc-8.8-480 Screw Y 14
7 4015000425 垫圈G B96.1-8flZnyc-300H V -480 W asher Y 14
8 29310030761 左侧围板 Plate Y 1
9 4011001657 螺栓G B5785-M 30*2*150EpZn-10.9 Screw Y 4
10 4110000453 减震器CB124 Absorber Y 4
11 4015000119 垫圈G B97.1-30EpZn-300H V W asher Y 4
12 4013000064 螺母G B889.2-M 30*2EpZn-8 Lock nut Y 4
13 29310024461 CB124专用垫圈 W asher Y 4
14 4015000032 垫圈G B93-30-65M n Spring washer Y 4
15 29310030781 右后围板 Plate Y 1
16 29310028841 控制器支架 Bracket N 1
17 4011001432 螺栓G B16674-M 10*20flZnyc-8.8-480 Screw N 4
18 29310022432 控制盒护罩 H ood Y 1
19 29310029481 后地板垫皮 Floor m at Y 1
20 4043003026 橡胶盖LG B348-25*5 Rubber plug Y 2
21 29310030801 右中围板 Plate Y 1
22 4043001246 卡子胶条LG B320-U 220 Sealing strip Y 1
23 29310030791 右前围板 Plate Y 1
24 29310029471 前地板垫皮 Floor m at Y 1
25 29290012861 风口-93 Air outlet Y 2
26 29310019001 方向管柱下护罩 Protecting cover Y 1
27 29310012601 橡胶盖—32 Rubber cap Y 1
28 29290014041 内饰钉(浅灰色) G rom m et Y 2
29 29310018991 橡胶套 Rubber sleeve Y 1
30 29310020381 塑料固定销 Plastic rivet Y 10
31 4014000535 螺钉G B818-M 5*12flZnyc-4.8-480 Screw Y 8
32 29310018981 方向管柱后护罩 Protecting cover Y 1
33 29310016411 方向管柱前护罩 Protecting cover Y 1
34 29290012851 风口-70 Air outlet Y 4
35 29290012561 仪表罩 Protecting cover Y 1
36 4014000522 自攻螺钉G B845-ST4.2*13flZnyc-480-C-H Screw Y 2
37 26290004591 簧片螺母 N ut Y 2
38 29310019361 档位护板 Protecting cover Y 1

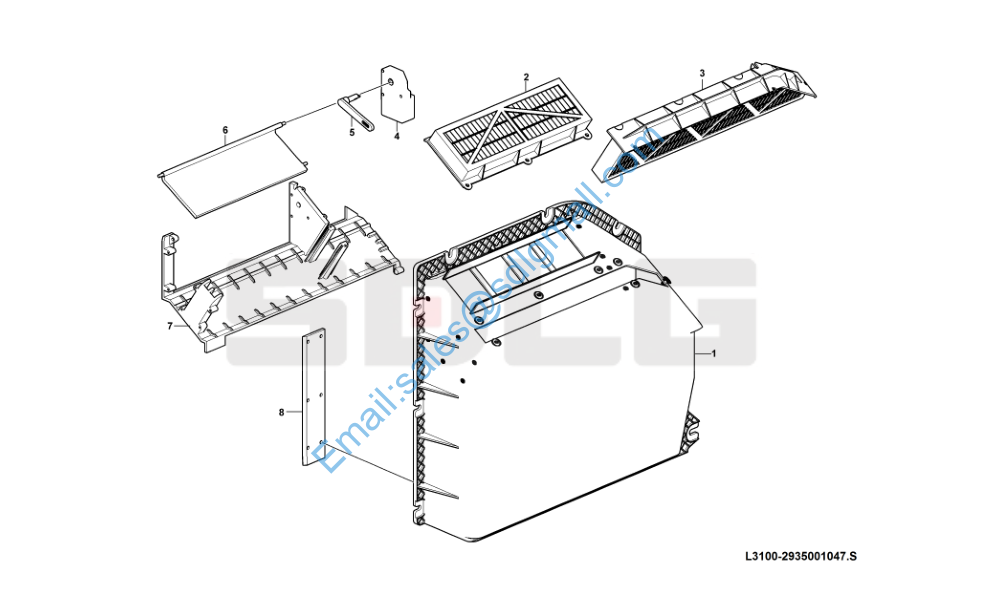

进风系统 Fresh air inlet syetem L3110-2935001047

1 29350010481 进风框架 Fram e Y 1
2 29350010491 新风滤网 Filter netting Y 1
3 29350010501 回风滤网 Filter netting Y 1
4 29350010541 风门电机 Control m otor Y 1
5 29350010551 转轴 Rotor shaft Y 1
6 29350010561 风门 Air shield Y 1
7 29350010571 隔板 Bracket Y 1
8 29350010581 进风挡板 Air shield Y 1
