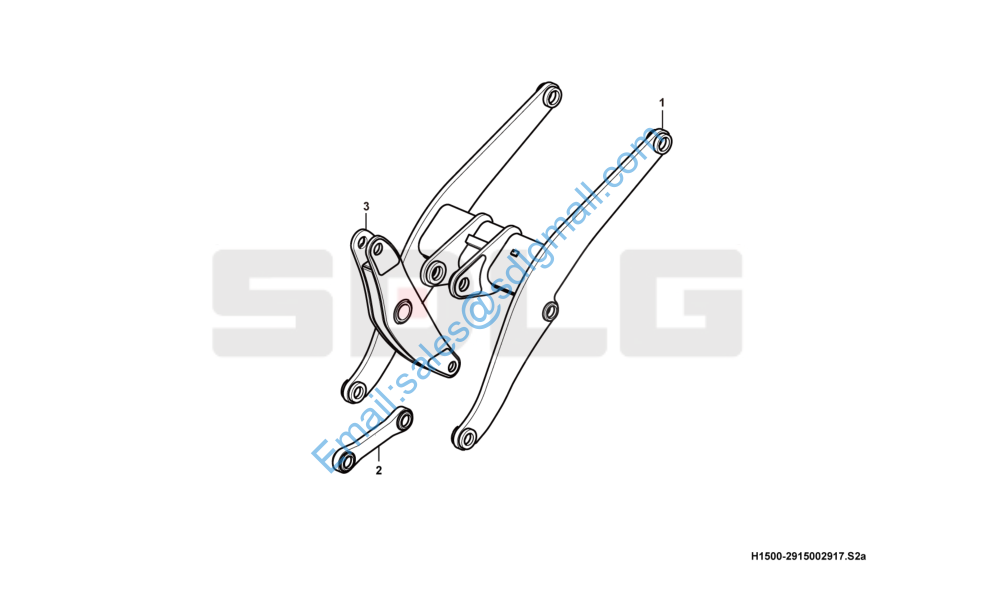

连杆机构 M em ber system H 1500-2915002917

1 29150029181 动臂LL2810A Lifting arm Y 1
2 29150033471 连杆B648100113-46*124 Connecting rod Y 1
3 29150014371 摇臂 Rocker arm Y 1

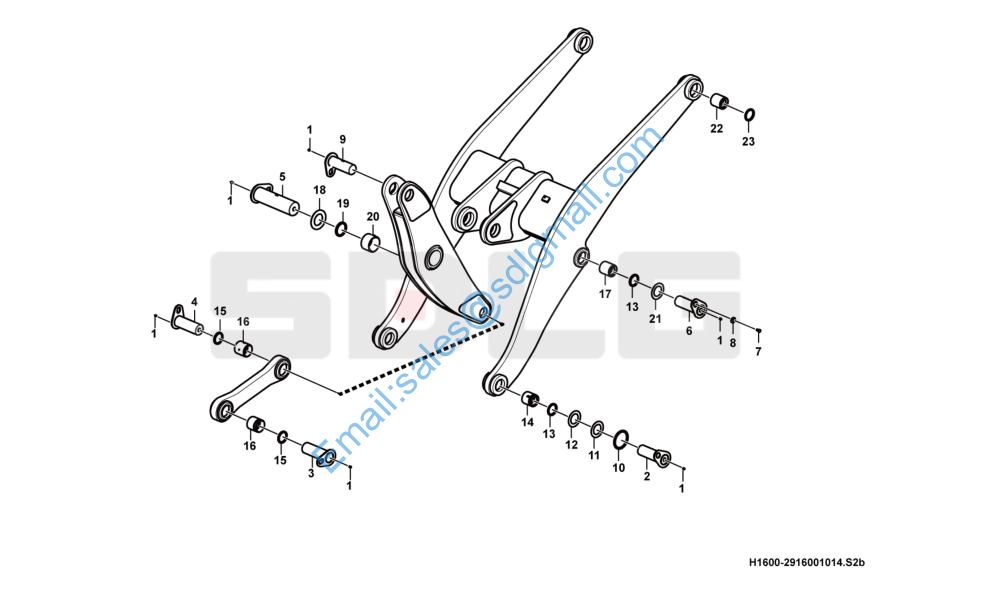

工作装置附件 Accessories H 1600-2916001014

1 4030000065 油杯JB7940.1-M 10*1 Lubricating nipple Y 8

2 4043000173 销轴LG B301-80*140*260-40Cr W eld pin Y 2

3 4043002967 销轴LG B301-85*N *265-1N 00Y W eld pin Y 1

4 4043004230 销轴LG B301-85*N *240-1N 00Y W eld pin Y 1

5 4043001422 销轴LG B301-110*212*405-1300Y W eld pin Y 1

6 4043004777 销轴LG B301-80*140*260-1200G W eld pin Y 2

7 4011001261 螺栓G B5783-M 16*30flZnyc-8.8-480 Screw Y 8

8 4040000051 垫圈LG B001-16flZnyc-480 W asher Y 8

9 4043000557 销轴LG B301-80*130*240-40Cr Pin Y 1

10 4043000059 O 形圈LG B308-128*12 O -ring Y 6

11 4043000033 垫片LG B303-80*130*1 Shim Y 4

12 4043000034 垫片LG B303-80*130*2 Shim Y 4

13 4043000055 防尘圈LG B307-80 Sealing ring Y 8

14 4043000026 轴套LG B302-80*90A2 Bushing Y 2

15 4043000056 防尘圈LG B307-85 Sealing ring Y 4

16 29160008781 轴套 Bushing Y 2

17 4043000503 轴套LG B302-80*98C2 Bushing Y 2

18 4043000043 垫片LG B303-110*180*1 Shim Y 4

19 4043000058 防尘圈LG B307-110 Sealing ring Y 2

20 4043000467 轴套LG B302-110*80C1 Bushing Y 2

21 4043000519 垫片LG B303-80*150*1 Shim Y 8

22 4043003343 轴套LG B302-95*100C2 Bushing Y 2

23 4043000057 防尘圈LG B307-95 Sealing ring Y 4
