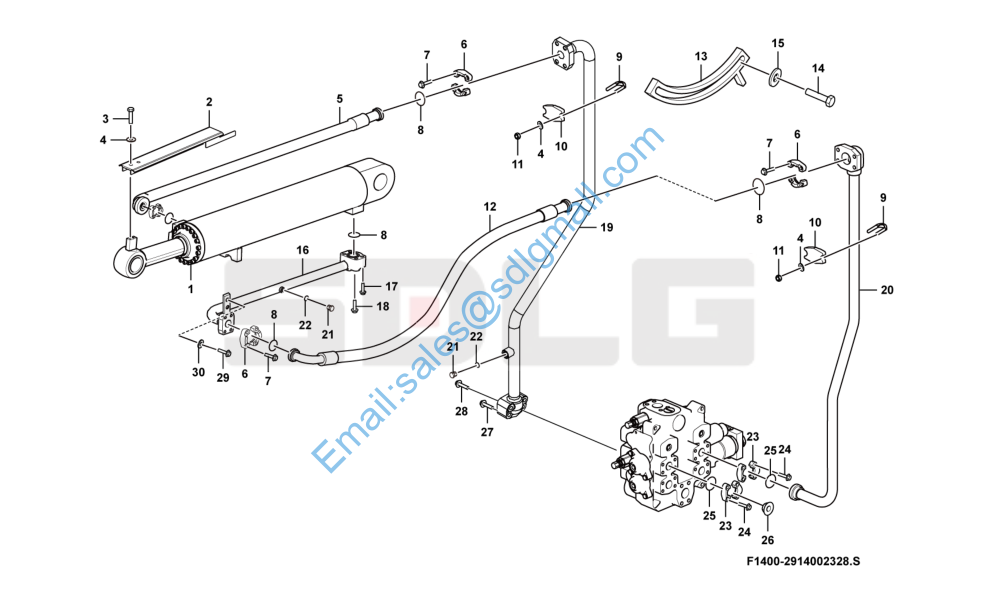

转斗缸总成 Tilt cylinder system F1400-2914002328

1 4120006001 转斗油缸H SG F-200*105*550-1064B Tilt cylinder Y 1

2 29140019081 放平护板 Plate Y 1

3 4011001248 螺栓G B5783-M 10*25flZnyc-8.8-480 Screw Y 4

4 4015000426 垫圈G B96.1-10flZnyc-300H V -480 W asher Y 12

5 29140018961 转斗缸小腔胶管 H ose assem bly Y 1

6 4041000144 分体法兰LG B117-312552 Flange half Y 4

7 4011001510 螺栓G B16674.1-M 12*35flZnyc-8.8-480 Screw Y 16

8 4030000029 O 形圈G B3452.1-37.5*3.55G O -ring Y 5

9 29140012931 U 形螺栓 U -bolt Y 4

10 4041001018 底板LG B160-3040 Bracket Y 4

11 4013000370 螺母G B6170-M 10flZnyc-8-480 N ut Y 8

12 29140020911 转斗缸大腔胶管 H ose assem bly Y 1

13 29140016451 动臂指示板 Indicator plate Y 1

14 4011001246 螺栓G B5783-M 8*16flZnyc-8.8-480 Screw Y 2

15 4015000425 垫圈G B96.1-8flZnyc-300H V -480 W asher Y 2

16 29140020901 转斗缸大腔钢管 Pipe Y 1

17 4011001529 螺栓G B16674.1-M 12*55flZnyc-8.8-480 Screw Y 2

18 4011001530 螺栓G B16674.1-M 12*60flZnyc-8.8-480 Screw Y 2

19 29140023291 转斗联小腔钢管 Pipe Y 1

20 29140019031 转斗联大腔钢管 Pipe Y 1

21 4041000774 螺塞LG B135-01422 Plug Y 2

22 4041000767 O 形圈LG B168-11124 O -ring Y 2

23 4041000026 分体法兰LG B117-310491 Flange half Y 4

24 4011001300 螺栓G B16674.1-M 10*30flZnyc-8.8-480 Screw Y 12

25 4030000026 O 形圈G B3452.1-32.5*3.55G O -ring Y 4

26 4041000818 防尘盖LG B134-01049 Cover Y 2

27 4011000532 螺栓G B16674-M 10*110EpZn-8.8 Screw Y 2

28 4011000445 螺栓G B16674-M 10*115EpZn-8.8 Bolt Y 2

29 4011001243 螺栓G B5783-M 12*35flZnyc-8.8-480 Screw Y 2

30 4015000428 垫圈G B97.1-12flZnyc-300H V -480 W asher Y 2

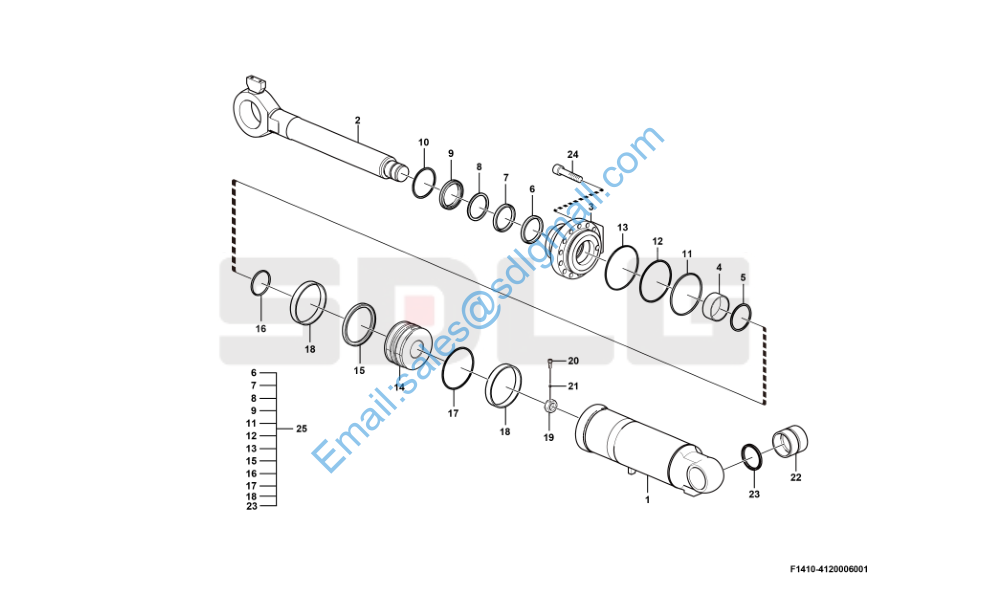

转斗油缸(3731CH ) Tilt cylinder F1410-4120006001

1 4120006001001 缸筒总成24A139180 Cylinder tube Y 1
2 4120006001002 活塞杆总成24A114190 Piston rod Y 1
3 4120006001003 缸盖24C101200 Cover Y 1
4 4120006001004 衬套24S2A5601 Bushing Y 1
5 4120006001005 钢丝挡圈-孔用24C090250 Retaining ring Y 1
6 4120006001006 密封件-缓冲24H 010504 Sealing ring N 1
7 4120006001007 密封件-活塞杆24F210503 Sealing ring N 1
8 4120006001008 挡圈-U 形圈24E010515 Retaining ring N 1
9 4120006001009 密封件-防尘24D 210502 Sealing ring N 1
10 4120006560009 钢丝挡圈-孔用24C090280 Retaining ring Y 1
11 4120006001010 O 形圈24K11900A O -ring N 1
12 4120006001011 挡圈-O 形圈24M 12000D O -ring N 1
13 4120006001012 O 形圈 24K320001 O -ring N 1
14 4120006001013 活塞24C102140 Piston Y 1
15 4120006001014 密封件-活塞24P220002 Sealing ring N 1
16 4120006001015 O 形圈 24K11050A O -ring N 1
17 4120006001016 挡圈-O 形圈24M 11100D O -ring N 1
18 4120006001017 支承环24G 220027 Sealing ring N 2
19 4120006001018 活塞背母24C103080 N ut Y 1
20 4120006560007 螺钉-内六角凹端紧定24T910161 Screw Y 1
21 4120006560006 钢球24U 006501 Ball N 1
22 4120006001019 轴套24C116140 Bushing Y 1
23 4120006001020 销边防尘24R308030 Sealing ring N 2
24 4120005997017 螺钉-内六角圆柱头 24T522905 Screw Y 12
25 4120006001021 密封件包24A103160S Sealing kit Y 1
