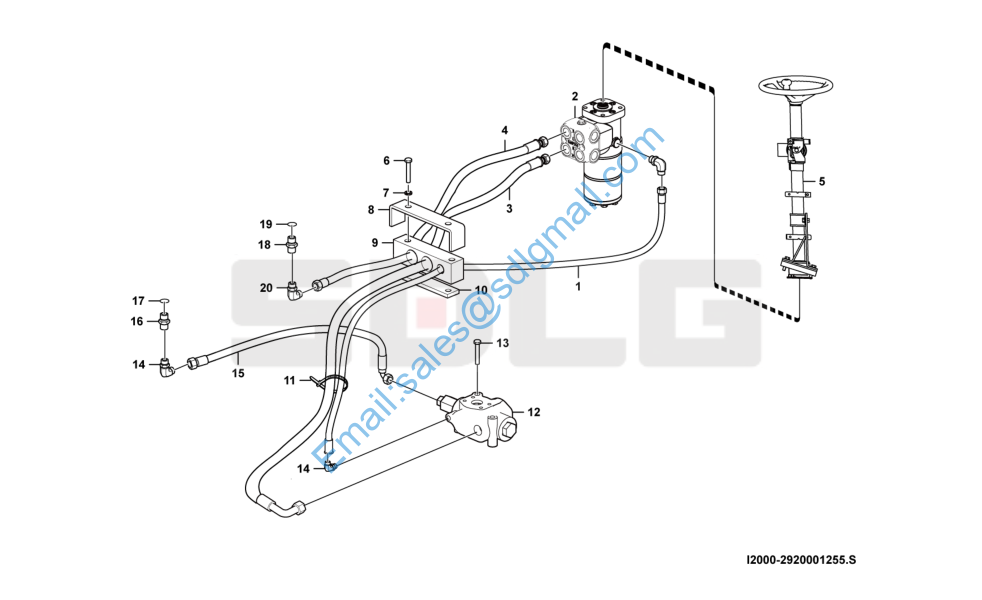

转向器总成 Steering gear system I2000-2920001255

1 4041003030 软管LG B127-003130 H ose assem bly Y 1

2 29200012411 转向器BZZ8-940部装总成A D iverter valve N 1

3 4041000586 软管LG B128-010145 H ose assem bly Y 1

4 4041002977 软管LG B164-010165 H ose assem bly Y 1

5 29200012161 转向柱部装总成 Steering colum n N 1

6 4011001347 螺栓G B5782-M 10*60flZnyc-8.8-480 Bolt Y 2

7 4015000433 垫圈G B97.1-10flZnyc-300H V -480 W asher Y 2

8 29200011311 压板 Plate Y 1

9 29200011321 橡胶管夹 Clam p Y 1

10 29200011331 固定板 Plate Y 1

11 4190001833 扎丝RTG B-300ST Cable tie Y 2

12 29200011551 优先阀V LH -240部装总成 Priority valve N 1

13 4011001476 螺栓G B5782-M 12*90flZnyc-8.8-480 Screw Y 2

14 4190000181 接头EW 08LO M D A3C Elbow nipple Y 2

15 4041002194 软管LG B125-003064 H ose Y 1

16 4041002792 直接头LG B120-01414*80 N ipple Y 1

17 4041000767 O 形圈LG B168-11124 O -ring Y 1

18 4041000187 直接头LG B120-02622 N ipple Y 1

19 4041000771 O 形圈LG B168-11924 O -ring Y 1

20 4041001417 组合接头LG B143-12616 N ipple Y 1

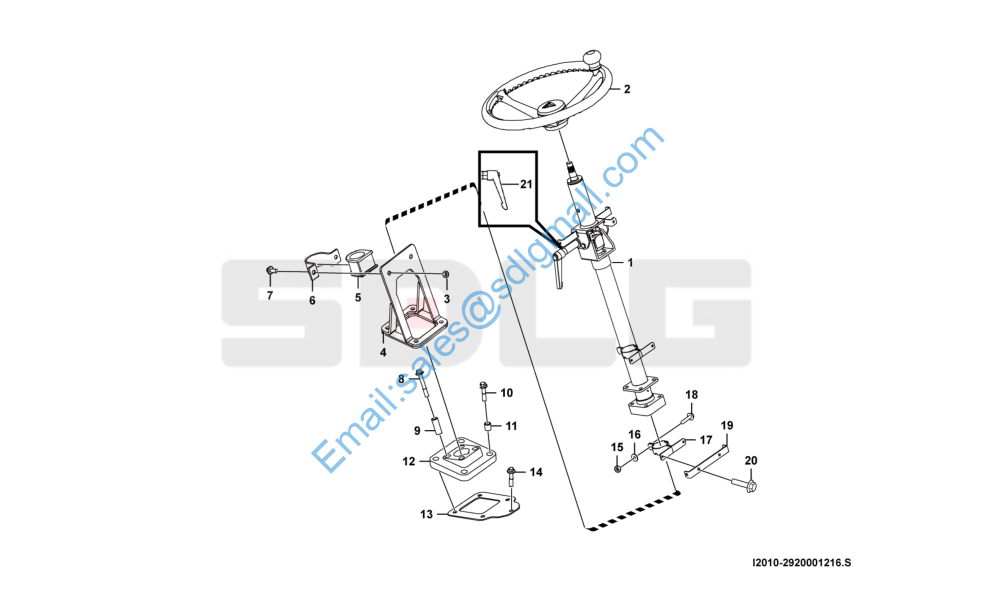

转向柱部装总成 Steering colum n I2010-2920001216

1 4120004343 可调转向柱-02 Steering colum n Y 1

2 4120003680 方向盘FXP-953 Steering wheel Y 1

3 4013000007 螺母G B6170-M 10EpZn-8 N ut Y 2

4 29200012091 固定支架 Bracket Y 1

5 29200009081 橡胶套 Rubber sleeve Y 1

6 29200009091 管夹 Clam p Y 1

7 4011000164 螺栓G B16674-M 10*35EpZn-8.8 Bolt Y 2

8 4011000282 螺栓G B16674-M 10*75EpZn-8.8 Screw Y 4

9 29200009311 钢管 Pipe Y 4

10 4011000309 螺栓G B16674-M 10*50EpZn-8.8 Bolt Y 4

11 29200009321 钢管 Pipe Y 4

12 29200009361 橡胶块 Rubber m at Y 1

13 29200009561 盖板 Cover plate Y 1

14 4011000447 螺栓G B16674-M 10*20EpZn-8.8 Bolt Y 1

15 4013000028 螺母G B6170-M 6EpZn-8 N ut Y 4

16 4015000207 垫圈G B97.1-6EpZn-300H V W asher Y 4

17 29200009431 管夹 Clam p Y 4

18 4011000194 螺钉G B818-M 6*12EpZn-4.8 Screw Y 6

19 29200009421 管夹 Clam p Y 1

20 4014000048 螺钉G B818-M 5*12EpZn-4.8 Screw Y 2

21 4130000896 锁紧手柄JB/T270.12-94 Switch Y 1

转向器BZZ8-940部装总成A D iverter I2020-2920001241

 4120007665 转向器BZZ8-940 D iverter valve Y 1

2 4120000264 接头G E18L7/8U N FO M D A3C N ipple Y 2

3 4190000218 接头G E15L7/8U N FO M D A3C N ipple Y 2

4 4190000181 接头EW 08LO M D A3C Elbow nipple Y 1

5 4120003023 接头G E08L7/16U N FO M D N ipple Y 1

优先阀V LH -240部装总成 Priority valve I2030-2920001155

1 4120002730 优先阀V LH -240 Priority valve Y 1

2 4120003023 接头G E08L7/16U N FO M D N ipple Y 2

3 4120002993 接头G E20S11/16U N O M D CF N ipple Y 1

4 4120004090 变径接头RED 20S/18LO M D CF N ipple Y 1
