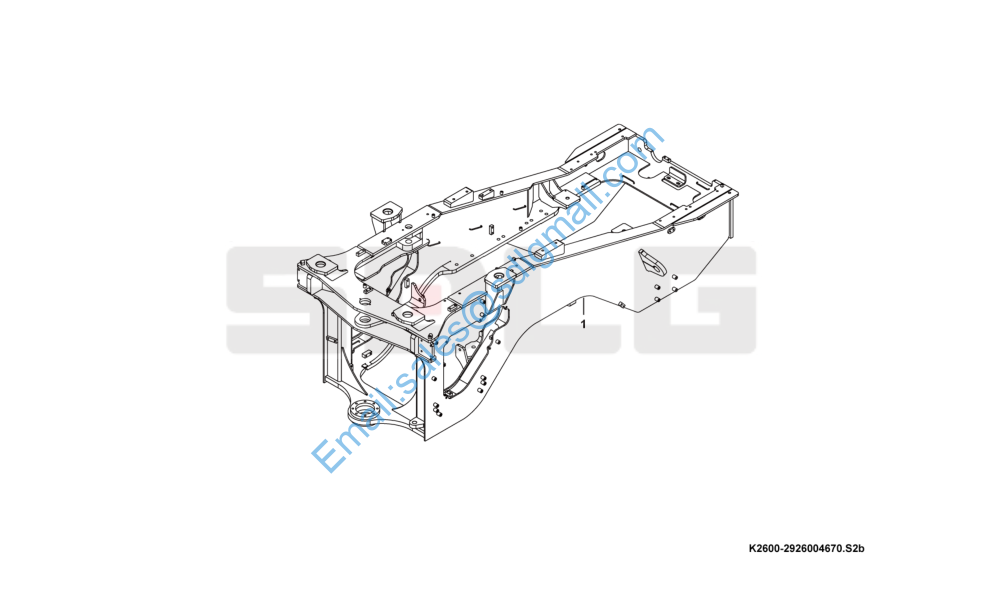

后车架JR958 Rear fram e K2600-2926004670

1 29260046702 后车架JR958 Rear fram e N 1

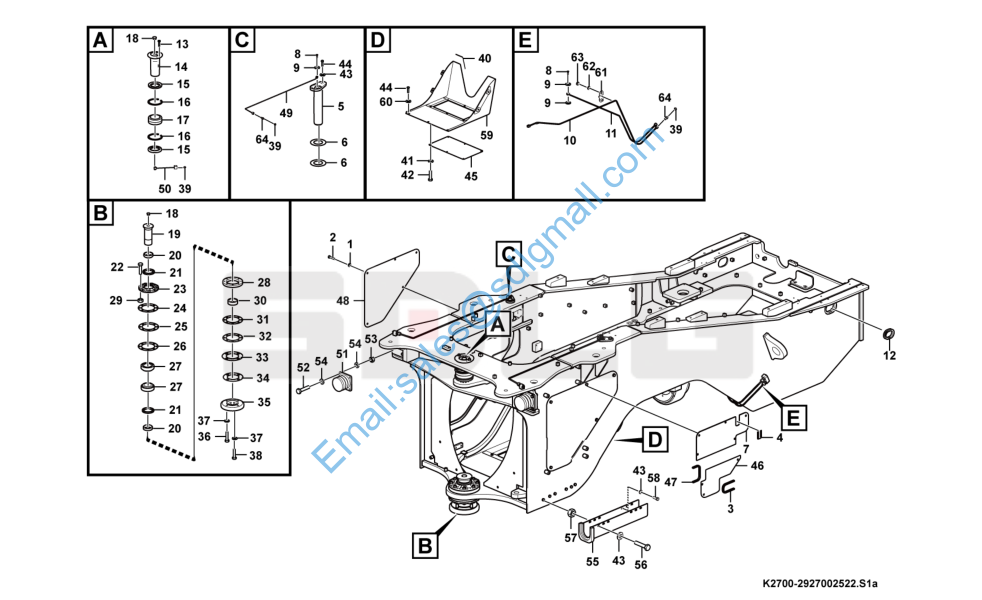

后车架附件 Accessories K2700-2927002522

1 4015000426 垫圈G B96.1-10flZnyc-300H V -480 W asher Y 15

2 4011001248 螺栓G B5783-M 10*25flZnyc-8.8-480 Screw Y 15

3 4043000948 卡子胶条LG B320-U 210 Sealing strip Y 1

4 4043001028 卡子胶条LG B320-U 170 Sealing strip Y 1

5 29270010271 转向销轴 Pin Y 2

6 4043000374 垫片LG B303-45*80*1 Shim Y 4

7 29270022882 盖板 Plate N 1

8 29250000291 通油螺栓 Bolt Y 5

9 29250000301 垫片 Shim Y 15

10 29270025251 前润滑油管 Lubricating pipe Y 1

11 29270025271 后润滑油管 Lubricating pipe Y 1

12 29270009101 走线胶套 Rubber sleeve Y 2

13 4011001299 螺栓G B16674.1-M 10*25flZnyc-8.8-480 Screw Y 2

14 29270010071 上铰接销 Pin Y 1

15 29270010081 防尘圈 Sealing ring Y 2

16 4015000270 挡圈G B893.1-120-65M n Retaining ring Y 2

17 4021000243 关节轴承G B9163-G E80ES Spherical plain bearing Y 1

18 29270009421 塑料塞 Plastic plug Y 2

19 29270010881 下铰接销 Pin Y 1

20 29270010131 套 Bushing Y 2

21 4030000260 旋转轴唇形密封圈G B9877.1-B100*125*12 Sealing ring Y 2

22 4011001316 螺栓G B16674.1-M 12*120flZnyc-8.8-480 Screw Y 8

23 29270010181 盘 Flange Y 1

24 29270010151 垫片 Shim Y 2

25 29270010161 垫片 Shim Y 1

26 29270010171 垫片 Shim Y 1

27 4021000244 滚动轴承G B297-33216 Roller bearing Y 2

28 29270010141 盘 Flange Y 1

29 4013000385 螺母G B6177.1-M 12flZnyc-10-480 N ut Y 8

30 29270010891 套 G rom m et Y 1

31 29270010221 垫片 Shim Y 1

32 29270010231 垫片 Shim Y 1

33 29270010241 垫片 Shim Y 1

34 29270010251 垫片 Shim Y 1

35 29270010261 盘 Flange Y 1

36 4011001328 螺栓G B5783-M 16*50flZnyc-8.8-480 Screw Y 4

37 4015000436 垫圈G B97.1-16flZnyc-300H V -480 W asher Y 8

38 4011001267 螺栓G B5782-M 16*90flZnyc-8.8-480 Screw Y 4

39 4030000065 油杯JB7940.1-M 10*1 Lubricating nipple Y 6

40 4043001246 卡子胶条LG B320-U 220 Sealing strip Y 2

41 4015000425 垫圈G B96.1-8flZnyc-300H V -480 W asher Y 6

42 4011001247 螺栓G B5783-M 8*20flZnyc-8.8-480 Screw Y 6

43 4015000428 垫圈G B97.1-12flZnyc-300H V -480 W asher Y 12

44 4011001241 螺栓G B5783-M 12*25flZnyc-8.8-480 Screw Y 9

45 29270022861 盖板 Plate Y 1

46 29270021981 板 Plate Y 1

47 4043000987 卡子胶条LG B320-U 250 Sealing strip Y 2

48 29270022851 右盖板 Plate Y 1

49 29270025231 转向润滑油管 Lubricating pipe Y 2

50 29270014461 油管 Lubricating pipe Y 1

51 4190001829 缓冲器 Absorber Y 2

52 4011001304 螺栓G B5783-M 10*45flZnyc-8.8-480 Screw Y 8

53 4013000370 螺母G B6170-M 10flZnyc-8-480 N ut Y 8

54 4015000433 垫圈G B97.1-10flZnyc-300H V -480 W asher Y 16

55 29270021991 支撑板 Bracket Y 1

56 4011001329 螺栓G B5782-M 12*150flZnyc-8.8-480 Screw Y 4

57 4013000368 螺母G B6170-M 12flZnyc-8-480 N ut Y 4

58 4011001250 螺栓G B5783-M 12*30flZnyc-8.8-480 Screw Y 2

59 29270022871 护板 Plate Y 1

60 4015000427 垫圈G B96.1-12flZnyc-300H V -480 W asher Y 7

61 29250000311 管夹 Clam p Y 1

62 4015000035 垫圈G B93-6-65M n Spring washer Y 2

63 4014000510 螺钉G B818-M 6*10flZnyc-4.8-480 Screw Y 2

64 29250014121 接头 N ipple Y 5

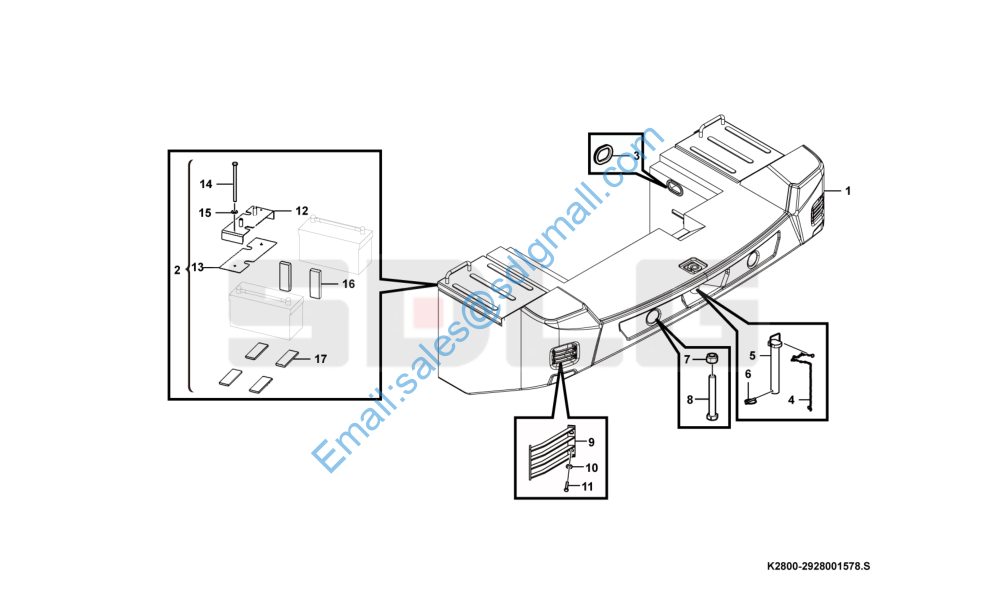

配重1400 Counterweight K2800-2928001578

1 29280015791 平衡铁1400 Counterweight Y 1

2 29280013841 蓄电池固定总成 Battery retainer N 1

3 4043002372 护套LG B313-B6*50*100 Rubber sleeve Y 2

4 29280012291 连接链 Chain Y 1

5 29280009861 牵引销 Clevis pin Y 1

6 29280000031 卡环 Lock ring Y 1

7 4013000064 螺母G B889.2-M 30*2EpZn-8 Lock nut Y 4

8 4011000122 螺栓G B5785-M 30*2*235-8.8 Screw Y 4

9 29280015121 防护网 Lam p shroud Y 2

10 4015000424 垫圈G B97.1-6flZnyc-300H V -480 W asher Y 8

11 4011001291 螺栓G B5783-M 6*12flZnyc-8.8-480 Bolt Y 8

12 29280013871 电瓶压板 Plate Y 1

13 29280010841 胶板 Rubber plate Y 1

14 4011001008 螺栓G B5782-M 10*250EpZn-8.8 Screw Y 2

15 4015000197 垫圈G B96.1-10EpZn-300H V W asher Y 2

16 4043001989 橡胶板LG B332-A180*60*25 Rubber plate Y 2

17 4043001983 橡胶板LG B332-A180*60*10 Rubber plate Y 4
