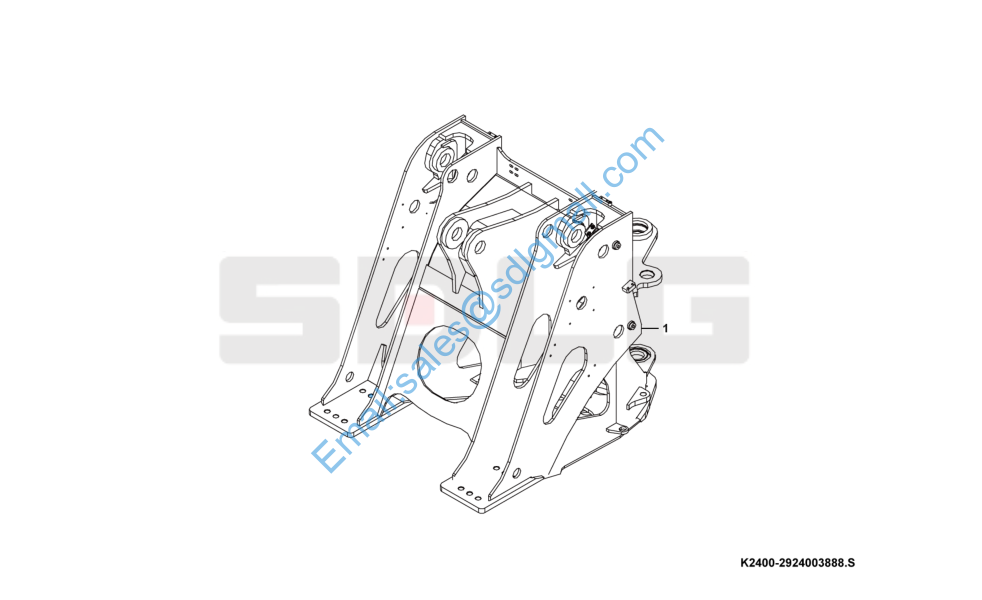

前车架JF958 Front fram e K2400-2924003888

29240038881 前车架JF958 Front fram e Y 1

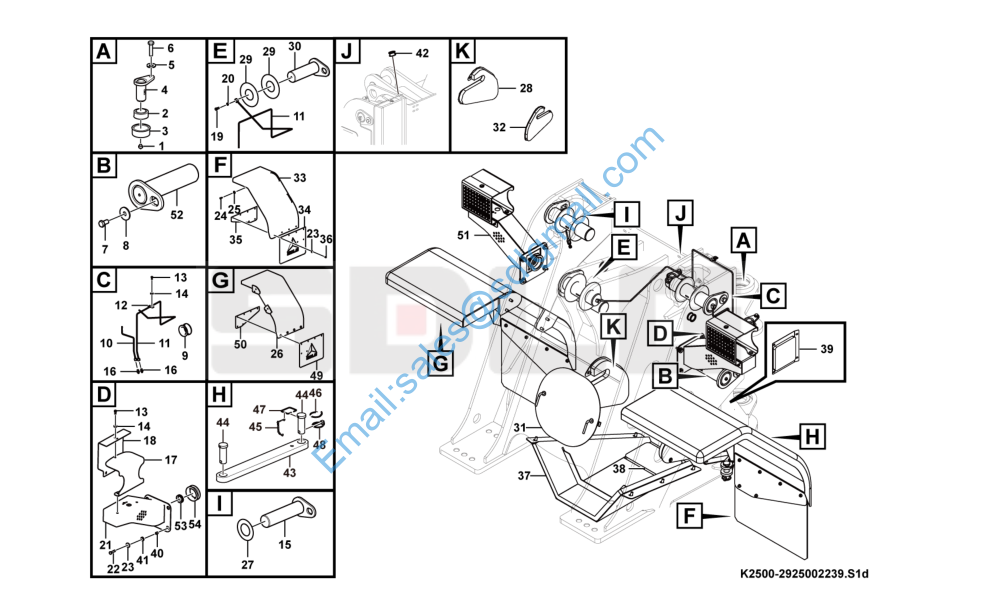

前车架附件 Front fram e system K2500-2925002239

1 4030000065 油杯JB7940.1-M 10*1 Lubricating nipple Y 7

2 4021000199 轴承G B9163-G E40ES Spherical plain bearing Y 2

3 29250010191 转向轴套 Sleeve Y 2

4 29250010171 转向销轴 Pin Y 2

5 4015000428 垫圈G B97.1-12flZnyc-300H V -480 W asher Y 2

6 4011001241 螺栓G B5783-M 12*25flZnyc-8.8-480 Screw Y 12

7 4011001261 螺栓G B5783-M 16*30flZnyc-8.8-480 Screw Y 5

8 4040000051 垫圈LG B001-16flZnyc-480 W asher Y 5

9 4043001362 护套LG B313-20*32 Rubber sleeve Y 2

10 29250014081 动臂销轴润滑油管 Lubricating pipe Y 2

11 29250014701 转斗销轴润滑油管 Lubricating pipe Y 1

12 29250013741 压板 Plate Y 2

13 4011001247 螺栓G B5783-M 8*20flZnyc-8.8-480 Screw Y 23

14 4015000425 垫圈G B96.1-8flZnyc-300H V -480 W asher Y 23

15 4043003983 销轴LG B301-95*170N *320-2200G W eld pin Y 2

16 29250014121 接头 N ipple Y 3

17 29250012661 照灯护板 Protecting plate Y 2

18 29250011021 照灯网板 Protecting plate Y 2

19 29250000291 通油螺栓 Bolt Y 3

20 29250000301 垫片 Shim Y 9

21 29250018221 左灯架 Lam p bracket Y 1

22 4011001280 螺栓G B5783-M 10*40flZnyc-8.8-480 Screw Y 8

23 4015000426 垫圈G B96.1-10flZnyc-300H V -480 W asher Y 20

24 4011001243 螺栓G B5783-M 12*35flZnyc-8.8-480 Screw Y 8

25 4015000427 垫圈G B96.1-12flZnyc-300H V -480 W asher Y 18

26 29250013241 挡泥瓦 Front fender N 1

27 4043000037 垫片LG B303-95*150*1 Shim Y 4

28 29250021901 侧盖板 Cover plate Y 1

29 4043000533 垫片LG B303-80*180*1 Shim Y 2

30 4043001455 销轴LG B301-80*140N R*260-1000G W eld pin Y 1

31 29250010281 前盖板总成 Cover plate Y 1

32 29250021881 侧盖板 Cover plate Y 1

33 29250013221 挡泥瓦 Front fender N 1

34 29250010051 橡胶板 Plate Y 1

35 29250013231 衬板 N ut plate Y 1

36 4011001248 螺栓G B5783-M 10*25flZnyc-8.8-480 Screw Y 12

37 29250021921 护板 Protecting plate Y 1

38 29250021941 盖板 Cover plate Y 1

39 29250021961 盖板 Cover plate Y 1

40 11220539 钢管 Steel pipe Y 8

41 11220538 减震垫 D am per m at Y 16

42 29250013711 走线胶套 Rubber sleeve Y 1

43 29250010091 锁定杆 Rod Y 1

44 29250010121 锁定销轴 Pin Y 2

45 29250020601 链条 Chain Y 1

46 29250020611 链条环 Ring Y 2

47 29280010021 挂钩 Tensioning hook Y 1

48 29270000081 卡环 Lock ring Y 2

49 29250010081 橡胶板 Rubber plate Y 1

50 29250013251 衬板 N ut plate Y 1

51 29250018241 右灯架 Lam p bracket Y 1

52 4043002663 销轴LG B301-80*170*320-2A10G W eld pin Y 2

53 29250012911 走线胶套 Rubber sleeve Y 2

54 29250013211 走线胶套 Rubber sleeve Y 2
