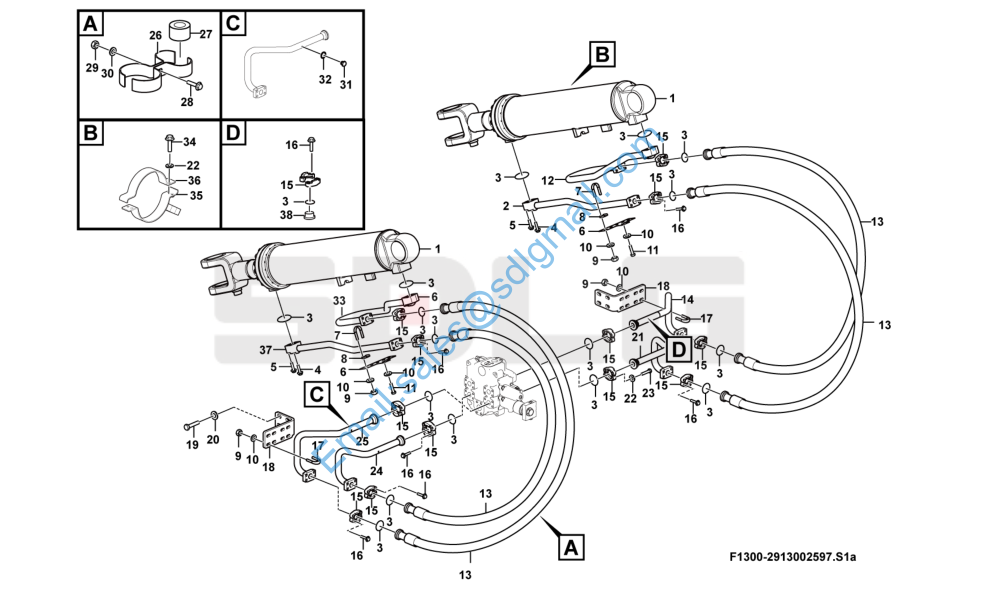

举升缸总成 Lifting cylinder system F1300-2913002597

1 4120009098 动臂油缸H SG F-170*90*757-1378B Lifting cylinder Y 2

2 29130021711 右动臂缸小腔钢管 Pipe Y 1

3 4030000026 O 形圈G B3452.1-32.5*3.55G O -ring Y 18

4 4011001298 螺栓G B16674.1-M 10*55flZnyc-8.8-480 Screw Y 8

5 4011001288 螺栓G B16674.1-M 10*50flZnyc-8.8-480 Screw Y 8

6 29130013141 固定板 Anchor plate Y 2

7 4041001017 U 形螺栓LG B159-13040 U -bolt Y 4

8 4041001018 底板LG B160-3040 Bracket Y 4

9 4013000370 螺母G B6170-M 10flZnyc-8-480 N ut Y 24

10 4015000426 垫圈G B96.1-10flZnyc-300H V -480 W asher Y 28

11 4011001248 螺栓G B5783-M 10*25flZnyc-8.8-480 Screw Y 4

12 29130013751 右动臂缸大腔钢管 Pipe Y 1

13 29130014321 胶管 H ose Y 4

14 29130023481 举升联右大腔钢管 Pipe Y 1

15 4041000026 分体法兰LG B117-310491 Flange half Y 12

16 4011001300 螺栓G B16674.1-M 10*30flZnyc-8.8-480 Screw Y 52

17 4041000958 U 形螺栓LG B159-03040 U -bolt Y 8

18 29130013691 支架 Bracket Y 2

19 4011001250 螺栓G B5783-M 12*30flZnyc-8.8-480 Screw Y 8

20 4015000428 垫圈G B97.1-12flZnyc-300H V -480 W asher Y 8

21 29130023511 举升联右小腔钢管 Pipe Y 1

22 4015000433 垫圈G B97.1-10flZnyc-300H V -480 W asher Y 12

23 4011001354 螺栓G B5782-M 10*90flZnyc-8.8-480 Screw Y 4

24 29130013771 举升联左小腔钢管 Pipe Y 1

25 29130013781 举升联左大腔钢管 Pipe Y 1

26 29130010371 管夹 Clam p Y 4

27 4041000869 缓冲套LG B123-0740 Rubber sleeve Y 4

28 4011001296 螺栓G B16674.1-M 8*20flZnyc-8.8-480 Screw Y 2

29 4013000373 螺母G B6170-M 8flZnyc-8-480 N ut Y 2

30 4015000430 垫圈G B97.1-8flZnyc-300H V -480 W asher Y 2

31 4041000774 螺塞LG B135-01422 Plug Y 2

32 4041000767 O 形圈LG B168-11124 O -ring Y 2

33 29130013671 左动臂缸大腔钢管 Pipe Y 1

34 4011001280 螺栓G B5783-M 10*40flZnyc-8.8-480 Screw Y 8

35 29130021801 管夹 Clam p Y 2

36 29130022171 管夹 Clam p Y 2

37 29130021771 左动臂缸小腔钢管 Pipe Y 1

38 4041000818 防尘盖LG B134-01049 Cover Y 2

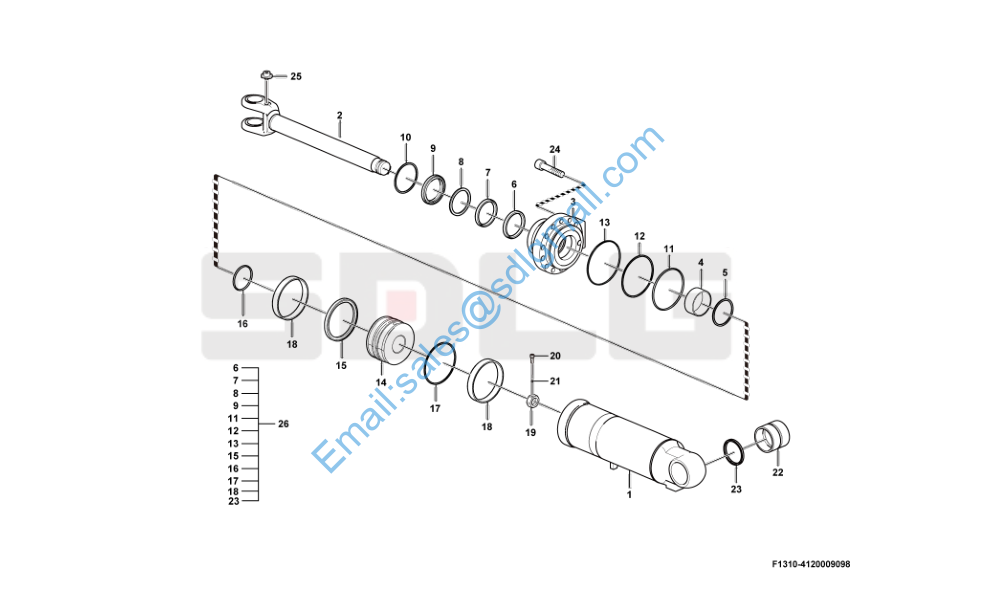

动臂油缸(3731CH ) Lift arm cylinder F1310-4120009098

1 4120005999001 缸筒总成24A139210 Cylinder tube Y 1

2 4120009098001 活塞杆总成24A116910 Piston rod Y 1

3 4120005999003 缸盖24C101150 Cover Y 1

4 4120005980010 衬套24S290501 Bushing Y 1

5 4120005980008 钢丝挡圈-孔用24C090220 Retaining ring Y 1

6 4120005999004 密封件-缓冲24H 009004 Sealing ring N 1

7 4120005999005 密封件-活塞杆24F209003 Sealing ring N 1

8 4120008479002 挡圈-U 形圈24E00902C Retaining ring N 1

9 4120004336016 密封件-防尘24D 209002 Sealing ring N 1

10 4120005980009 钢丝挡圈-孔用24C090240 Retaining ring Y 1

11 4120005999008 O 形圈24K11600A O -ring N 1

12 4120009098002 挡圈-O 形圈24M 11700C O -ring N 1

13 4120005999010 O 形圈24K316701 O -ring N 1

14 4120005999011 活塞24C102100 Piston Y 1

15 4120005999012 密封件-活塞24P217002 Sealing ring N 1

16 4120005999013 O 形圈24K10900A O -ring N 1

17 4120008479003 挡圈-O 形圈24M 10950C O -ring N 1

18 4120005999015 支承环24G 217021 Sealing ring N 2

19 4120005980011 活塞背母24C103050 N ut Y 1

20 4090000168 钢球G B308-5-G Cr6 Ball Y 1

21 4120005872008 螺钉-内六角凹端紧定24T908161 Screw Y 1

22 4120007579004 轴套24C051050 Sleeve Y 1

23 4120005999017 销边防尘24R308030 Sealing ring Y 2

24 4120005999018 螺钉-内六角圆柱头24T518755 Screw Y 12

25 4120005685012 固定座24C003020 M 16 Anchorage Y 1

26 4120009098003 密封件包24A105070S Sealing kit Y 1
