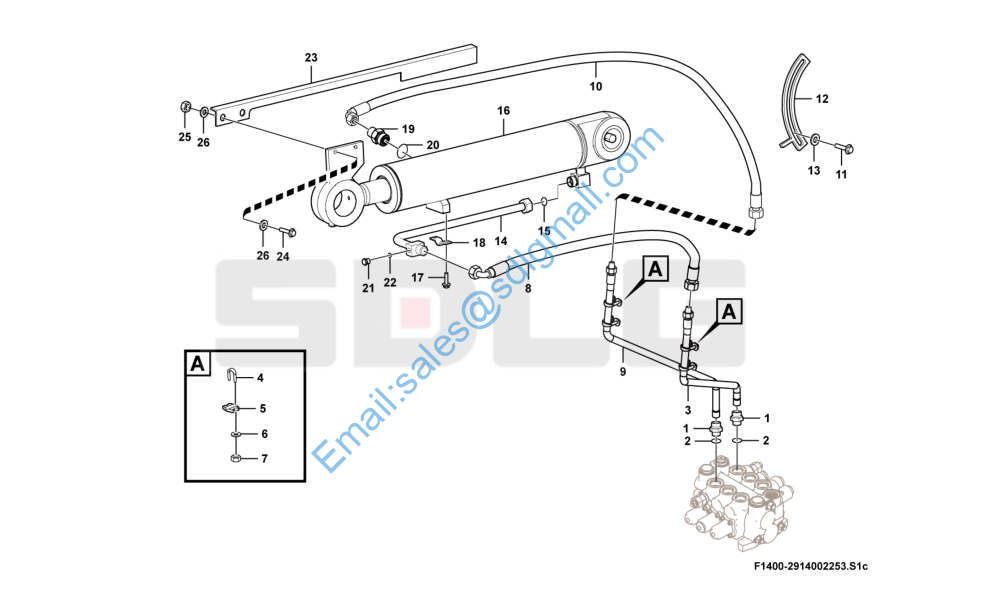

L918 转斗缸总成 Tilt cylinder system F1400-2914002253

1 29120012681 直通接头 Nipple Y 2

2 4030000090 O形圈GB3452.1-28.0*2.65G O-ring Y 2

3 29140022621 转斗联大腔钢管 Pipe Y 1

4 4041001239 U形螺栓LGB159-12028 U-bolt Y 4

5 4041001240 底板LGB160-2028 Bracket Y 4

6 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 8

7 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 8

8 29140019991 转斗缸大腔胶管 Hose Y 1

9 29130026801 转斗联小腔钢管 Pipe Y 1

10 29140020001 转斗缸小腔胶管 Hose Y 1

11 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2

12 29140007551 动臂指示板 Indicator plate Y 1

13 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

14 29140019941 转斗缸大腔钢管 Pipe Y 1

15 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 1

16 4120006960 转斗油缸HSGL-100*55*412-779A Tilt cylinder Y 1

17 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2

18 29140006531 管夹 Clamp Y 1

19 4041000187 直接头LGB120-02622 Nipple Y 1

20 4041000771 O形圈LGB168-11924 O-ring Y 1

21 4041000774 螺塞LGB135-01422 Plug Y 1

22 4041000767 O形圈LGB168-11124 O-ring Y 1

23 29140011701 转斗指示板 Indicator plate Y 1

24 4011001201 螺栓GB5783-M14*35flZnyc-10.9-480 Screw Y 2

25 4013000410 螺母GB6170-M14flZnyc-8-480 Nut Y 2

26 4015000435 垫圈GB97.1-14flZnyc-300HV-480 Washer Y 4
