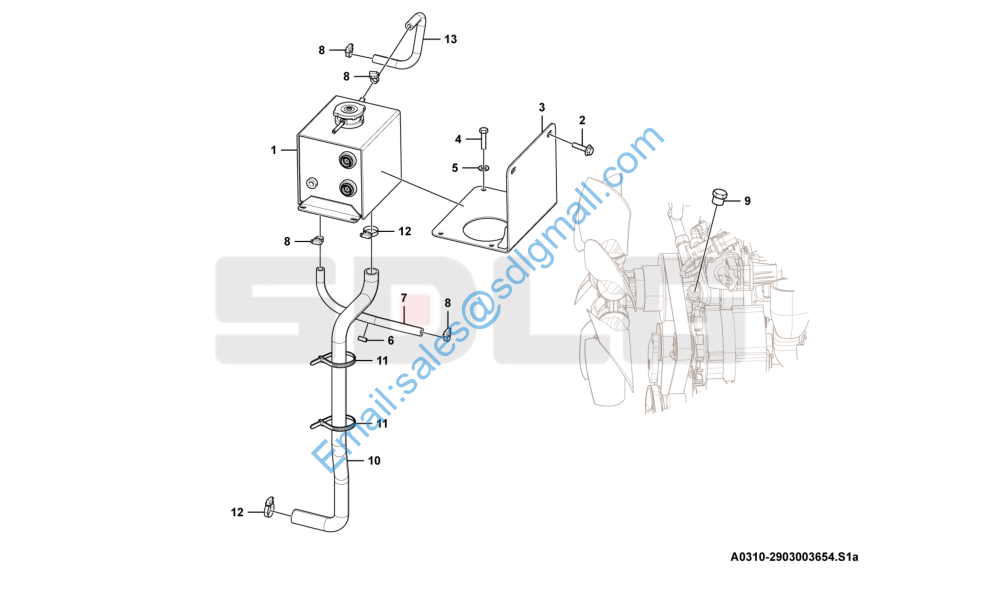

L918 膨胀水箱组件 Expansion tank kit A0310-2903003654

1 4110003670 副水箱总成L918F Expansion tank Y 1

2 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 2

3 29030037991 副水箱支架 Plate N 1

4 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 4

5 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 4

6 29030022061 节流器 Nipple Y 1

7 29030036561 透气管 Hose N 1

8 4017000010 喉箍JB8870-d20 Clamp Y 4

9 4030000545 螺塞JB1000-M16*1.5EpZn-35 Plug Y 1

10 29030036551 补水管 Hose N 1

11 4190001834 扎丝LG13-ZS8*370 Cable tie Y 2

12 4017000008 喉箍JB8870-d40 Clamp Y 2

13 4090000257 胶管HG2491-10*300 Hose Y 1

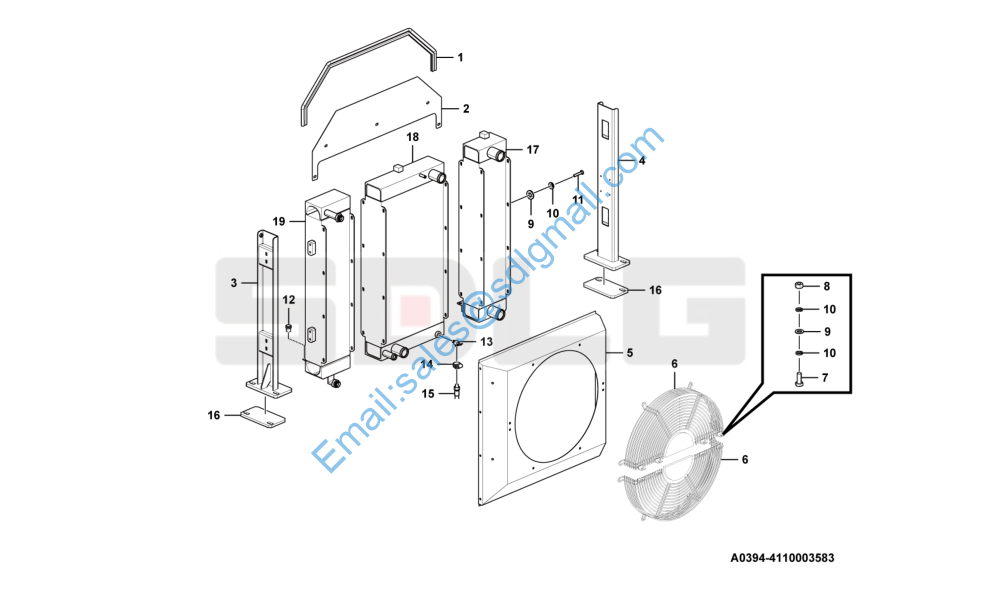

水油散热器总成L918F-DA(320204) Radiator assembly
A0394-4110003583

1 4110003583001 U型密封条8290011100 Sealing strip N 1

2 4110003583002 挡风板330634 Wind deflector N 1

3 4110003583003 左框架KB0611 Bracket N 1

4 4110003583004 右框架KB0612 Bracket N 1

5 4110003583005 导风罩DB0634 Fan shroud Y 1

6 4110003583006 防护网HB0320 Fan guard Y 2

7 4110002943003 外六角螺栓610201 Screw N 12

8 4110002945016 六角螺母621200 Nut N 20

9 4110001688022 平垫630330 Plain washer N 49

10 4110002943004 弹垫632300 Spring washer N 69

11 4110002975215 六角头螺栓610202 Screw N 37

12 4110003583007 拉铆螺母624423 Nut N 4

13 4110002233206 放水阀739001 Drain valve Y 1

14 4110002286007 卡箍990002 Clamp N 1

15 4110003583008 耐高温橡胶管8010090800 Drain hose N 1

16 4110003583009 减震垫720069 Damper mat N 2

17 4110003583010 气散热器S9113559C Radiator Y 1

18 4110003583011 水散热器S9113559B Radiator Y 1

19 4110003583012 油散热器S9113559A Radiator Y 1
