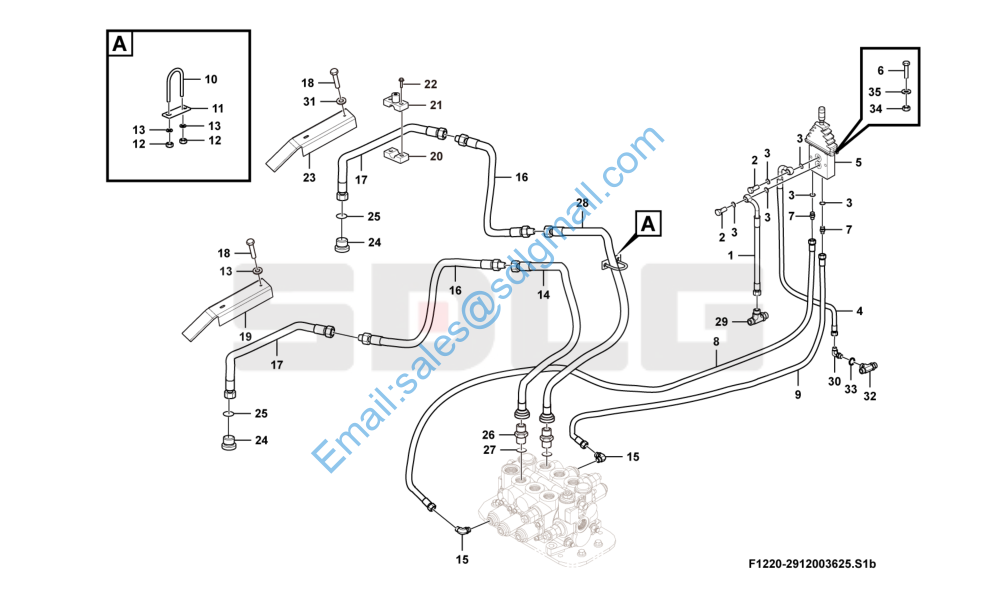

L918 第三联接口 The 3rd function control unit F1220-2912003625

1 29120010851 前部先导油管（b2） Hose assembly Y 1

2 4011000344 螺栓JB999-M14*1.5*32EpZn-35 Bolt Y 2

3 29120014931 垫圈 Washer Y 8

4 29120029031 回油胶管 Hose assembly Y 1

5 4120001966 先导阀总成2TH6L-01 Control lever Y 1

6 4011001275 螺栓GB16674.1-M6*16flZnyc-8.8-480 Screw Y 2

7 29120015401 接头 Nipple Y 4

8 4041002096 软管LGB126-003280 Hose Y 1

9 4041002447 软管LGB126-003235 Hose assembly Y 1

10 4041001239 U形螺栓LGB159-12028 U-bolt Y 4

11 4041001240 底板LGB160-2028 Bracket Y 4

12 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 8

13 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 8

14 29130026781 第三联右钢管总成 Steel tube Y 1

15 4041001047 组合接头LGB143-01406 Nipple Y 2

16 4041000912 软管LGB127-410080 Hose Y 2

17 29120011531 动臂联钢管 Pipe Y 2

18 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 4

19 29120012231 护板 Protecting plate Y 1

20 29120010251 管夹 Clamp Y 4

21 29120012661 管夹 Clamp Y 4

22 4011001425 螺栓GB16674.1-M8*40flZnyc-8.8-480 Bolt Y 8

23 29120012221 护板 Protecting plate Y 1

24 4041000777 螺塞LGB135-02227 Plug Y 2

25 4041001265 O型圈LGB168-21924 O-ring Y 2

26 29120012681 直通接头 Nipple Y 2

27 4030000090 O形圈GB3452.1-28.0*2.65G O-ring Y 2

28 29120036292 第三联左钢管总成 Tube N 1

29 4120001100 三通接头EL10LOMDA3C Three-way nipple Y 1

30 4190000141 接头EW12LOMDA3C Nipple Y 1

31 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 4

32 29120016521 三通管接头 Three-way nipple Y 1

33 4041000768 O形圈LGB168-11524 O-ring Y 1

34 4013000372 螺母GB6170-M6flZnyc-8-480 Nut Y 2

35 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 2
