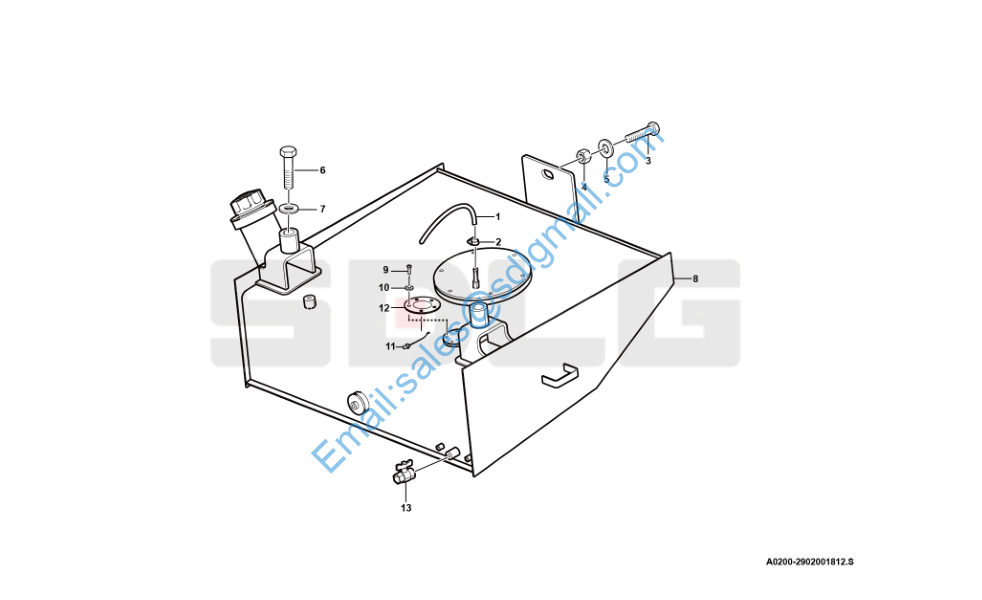

L918 燃油箱总成 Fuel tank assembly A0200-2902001812

1 4120000046 胶管JB8406-A10*560 Hose assembly Y 1

2 4017000010 喉箍JB8870-d20 Clamp Y 1

3 4011000114 螺栓GB5785-M20*2*60EpZn-8.8 Bolt Y 1

4 4013000040 螺母GB6171-M20*2EpZn-8 Nut Y 1

5 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 1

6 4011000446 螺栓GB5785-M24*2*120EpZn-8.8 Screw Y 2

7 4015000187 垫圈GB96.1-24EpZn-300HV Washer Y 2

8 29020018111 燃油箱总成 Fule tank Y 1

9 4014000088 螺钉GB818-M5*16EpZn-4.8 Screw Y 5

10 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 5

11 4130002314 油量传感器RG2267型-A2 Fuel level sensor Y 1

12 29020006851 垫片 Spacer Y 1

13 4120000099 球阀MBS216-1/2″ Valve Y 1

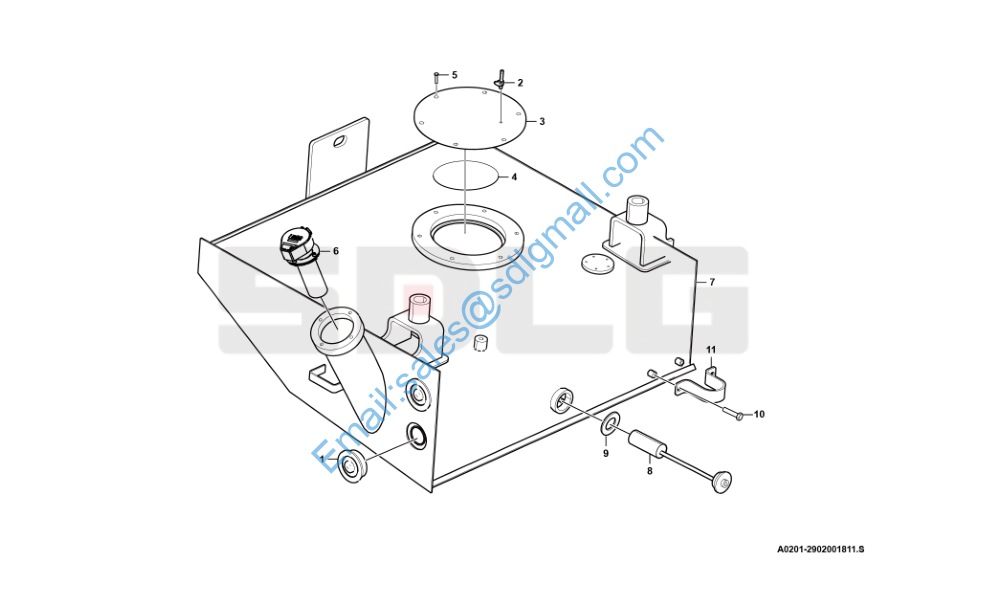

燃油箱总成 Fuel tank assembly A0201-2902001811

1 4110000807 圆形油标YB-M42*1.5 Level gauge Y 2

2 29020006561 透气钢管 Tube Y 1

3 29020006571 盖板 Cover plate Y 1

4 4030000022 O形圈GB3452.1-200*7.00G O-ring Y 1

5 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 6

6 4120001404 带锁液压过滤器SL-50A Hydraulic fluid filter Y 1

7 29020018101 燃油箱体 Fule tank N 1

8 29020006581 滤油器总成 Fuel filter Y 1

9 29020007931 垫圈 Washer Y 1

10 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 2

11 29020006591 护板 Protecting plate Y 1
