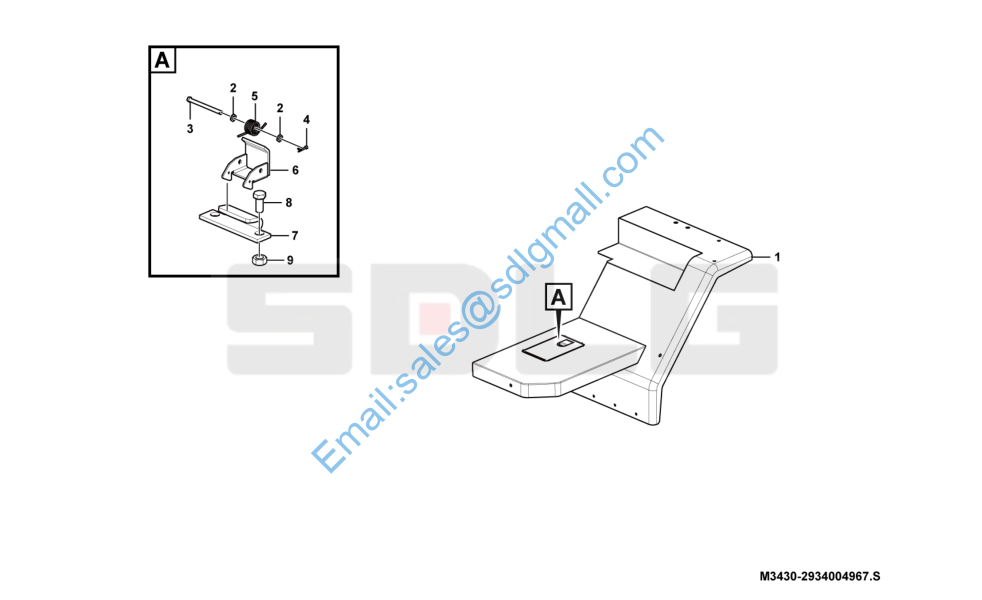

L918 左台架总成 Platform assembiy M3430-2934004967

1 29340049681 左台架焊接总成 Platform Y 1
2 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 2
3 4016000140 销轴GB882-B670EpZn-35 Clevis pin Y 1 4 4016000114 销GB91-216EpZn-Q235A Split pin Y 1
5 29340001001 弹簧 Spring Y 1
6 29340000991 扳手 Cover latch Y 1
7 29340000981 挡板 Bracket Y 1
8 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 2
9 4013000011 螺母GB6170-M12EpZn-8 Nut Y 2

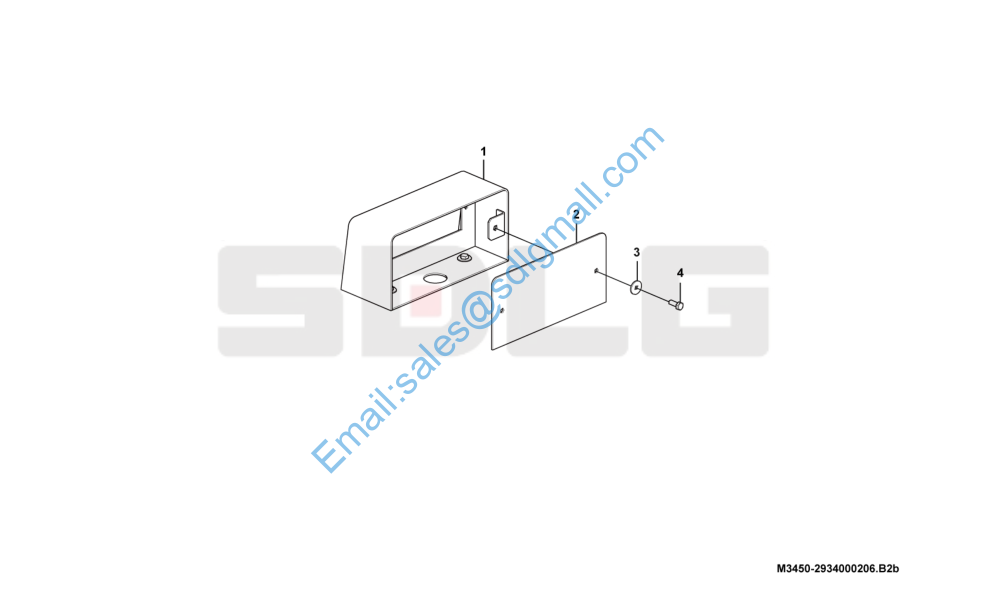

后转向灯罩 Tail lamp protection M3450-2934000206

1 29340002431 灯架 Lamp bracket Y 1

2 29340002442 后板 Bracket Y 1

3 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 4

4 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 4
