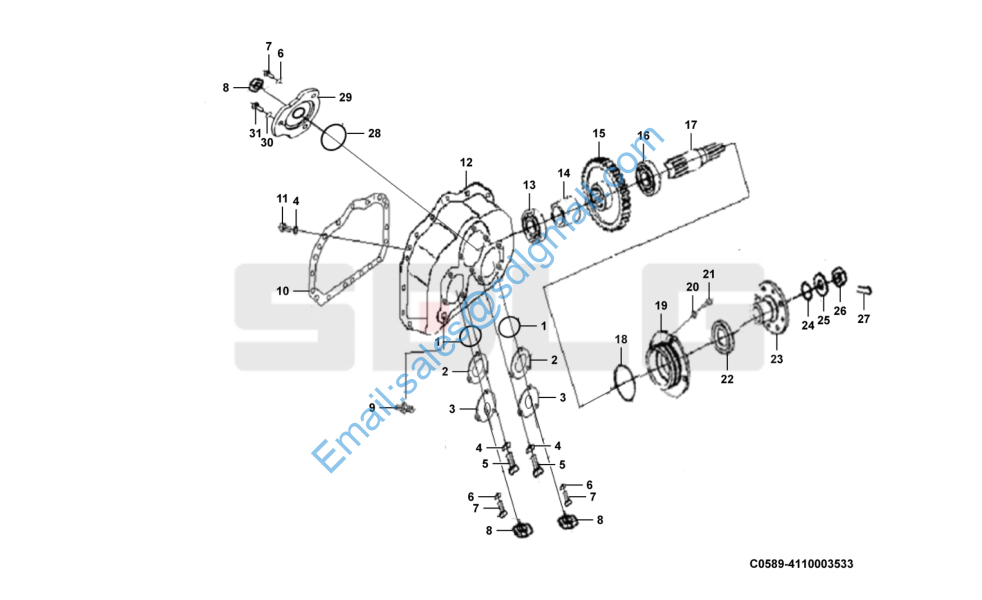

L918 变速箱输入部分BYD2206LQK004(370804) Transmission input shaft C0589-4110003533

1 4110002900009 调整环BD06X-00017 Adjusting ring Y 2

2 4110000218038 垫片BDX05-00002 Rubber washer Y 2

3 4110002900010 轴承盖BD06X-00001 Bearing cover Y 2

4 4110000004001 弹性垫圈01602-21030 Retaining ring Y 21

5 4110000960005 螺栓01010-81025 Screw Y 6

6 4110000499027 止动片1BD08-00003 Retaining ring Y 3

7 4110001984058 六角螺栓M6*6 BD08-00050 Screw Y 3

8 4110000499029 调整螺丝1BD08-00005 Adjuster bolt Y 3

9 4110000789004 接头BD05L1-00003 Nipple Y 1

10 4110000218092 密封垫BDX05-00006 Gasket Y 1

11 4110000960010 螺栓Bolt M10X30 01010-81030 Screw Y 15

12 4110002900011 传动箱壳体BD06X-00011 Housing Y 1

13 4110002900012 单列圆锥滚子轴承GB297-32006 Roller bearing Y 1

14 4110002900013 调整垫BD06X-00008 Gasket Y 1

15 4110002900014 齿轮BD06X-00010 Gear Y 1

16 4021000171 P轴承GB297-30308 Roller bearing Y 1

17 4110000218102 输入轴BDX05-00009 Input shaft Y 1

18 4110002900015 O型圈105*2.5 07000-12105 O-ring Y 2

19 4110002900016 油封盖BD06X-00004 Cover Y 1

20 4110000160054 垫圈01602-21236 Gasket Y 4

21 4110000960004 螺栓01010-81230 Screw Y 4

22 4110000218057 骨架油封 07012-00048 Sealing ring Y 1

23 4110000218101 输入法兰盘BDX05-01000 Flange Y 1

24 4110000960011 O形圈07000-13032 O-ring Y 2

25 4110000218022 大垫圈01643-32260 Washer Y 2

26 4110000218080 螺母BD05-00010 Nut Y 2

27 4110002900017 开口销04050-14030 Split pin Y 2

28 4110002900018 调整环BD06X-00016 Adjusting ring Y 1

29 4110002900019 压板BD06X-00015 Plate Y 1

30 4110000084130 垫圈8 01602-20825 Washer Y 3

31 4110002900020 螺栓M8X25 01010-80825 Bolt Y 3
