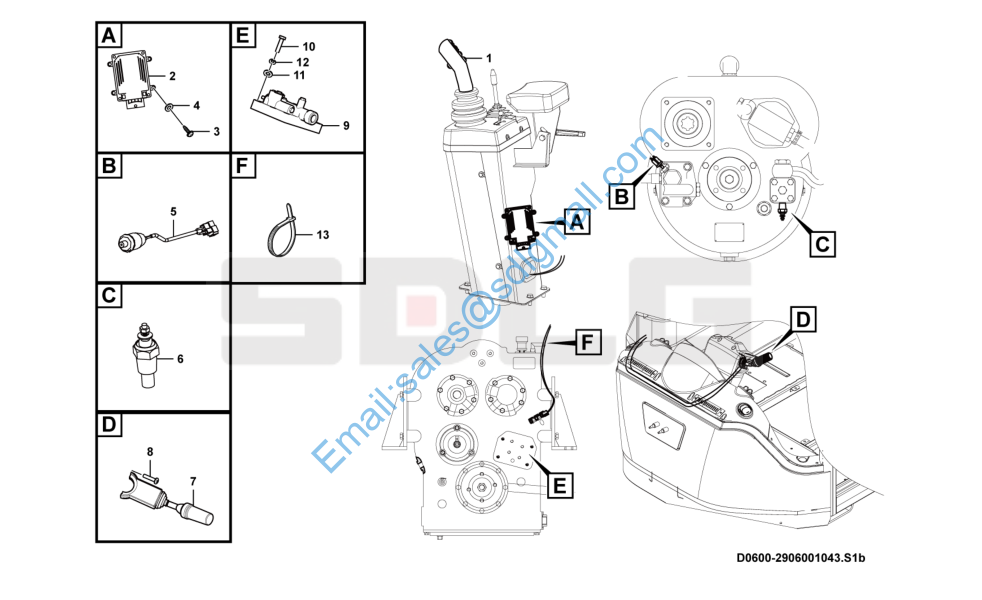

L918 变速操纵总成 Shift mechanism system D0600-2906001043

1 4130002515 操纵手柄MS-04P9/FNR-R1P9 Control handle Y 1

2 4130002613 操纵集成控制器 Control unit Y 1

3 4014000512 螺钉GB818-M6*12flZnyc-4.8-480 Screw Y 4

4 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 4

5 4130001300 压力开关YK215B1 Pressure switch Y 1

6 4130000202 温度传感器WDG1371 Temperature sensor Y 1

7 4130000844 档位选择器VA-F2R1 Speed selecter va-f2r1 Y 1

8 4014000170 螺钉GB70.1-M5*16EpZn-8.8 Screw Y 2

9 4120008237 变速操纵阀TY15DK-22B Control valve Y 1

10 4011001467 螺栓GB5782-M10*80flZnyc-8.8-480 Bolt Y 4

11 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4

12 4015000025 垫圈GB93-10-65Mn Spring washer Y 4

13 4190000020 扎丝LG13-ZS4*250 Cable tie Y 10
