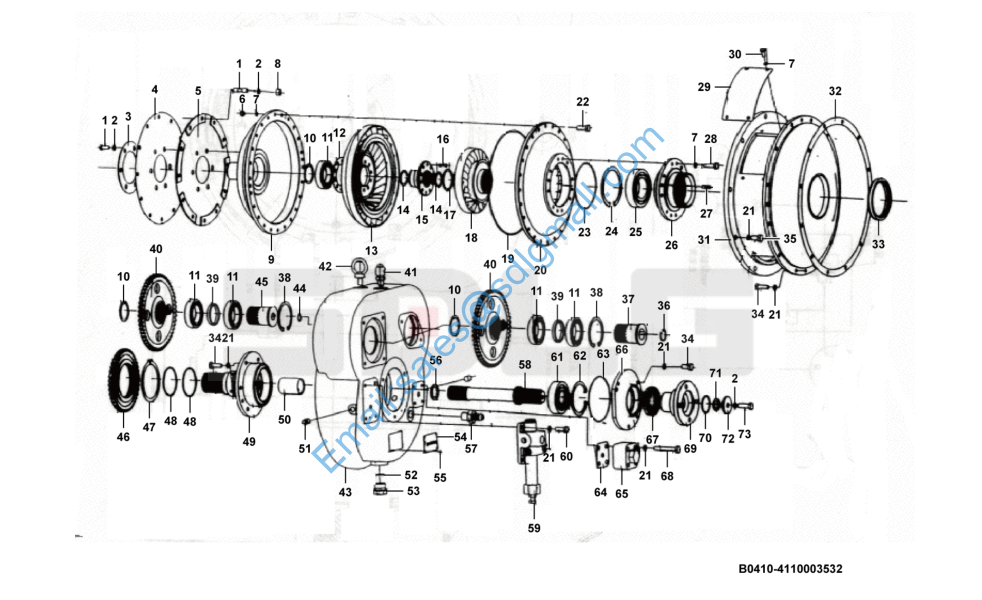

L918 变矩器总成YJ2808D000004(370804) Torque converter assembly B0410-4110003532

1 4110000960006 螺栓 M12X25 01010-81225 Screw Y 15

2 4110000160054 垫圈01602-21236 Gasket Y 16

3 4110000011116 圆垫板YB315Z5-04 Shim Y 1

4 4110000217071 弹性板YJ265-00002 Plate Y 1

5 4110000217072 弹性板总成YJ265-10000 Plate Y 1

6 4110000518002 螺母01580-00806 M8 Nut Y 24

7 4110000084130 垫圈8 01602-20825 Washer Y 40

8 4110000194006 螺母M12-01580-11210 Nut Y 9

9 4110002937006 罩轮YJ280-8A-00001 Cover Y 1

10 4110000217073 挡圈04064-05020 50 Washer Y 3

11 4021000011 滚动轴承GB276-6010 Ball bearing Y 5

12 7200000804 垫板YJ280-4A-10002 Plate N 1

13 4110002937012 涡轮YJ280-8A-20001 Turbine rotor N 1

14 4110000217062 挡圈04064-03818 38 Washer Y 2

15 7200000807 涡轮毂YJ280-4A-10001 Turbo housing kit N 1

16 7200000809 铆钉8*2004400-00820 Rivet N 10

17 4110000217064 挡圈04064-05520 55 Washer Y 1

18 4110002937008 导轮YJ280-8A-00003 Stator Y 1

19 4030000616 O形圈GB3452.1-300*3.55G O-ring Y 1

20 4110003532001 泵轮YJ280-8A-00004 Impeller Y 1

21 4110000004001 弹性垫圈01602-21030 Retaining ring Y 41

22 4110002525001 螺栓01010-80835 M8*35 Screw Y 24

23 4110000004016 O 型圈 130×3.1 07000-E2130 O-ring Y 1

24 4110000084106 挡圈04065-01104 Retaining ring Y 1

25 4021000113 滚动轴承GB276-6212 Ball bearing Y 1

26 4110002937009 泵轮座YJ280-8A-00005 Seat Y 1

27 4110000084064 定位销ZL30D-11-22 Pin Y 4

28 4110000004019 螺栓 M8×22 01010-80822 Screw Y 8

29 4110002937011 盖板YJ280-8A-10001 Cover plate N 2

30 4110002525003 螺栓01010-80816 M8*16 Screw Y 8

31 4110002937010 中节YJ280-8A-10000 Flange N 1

32 4110000217084 密封垫YJ280-4A-00016 Gasket Y 1

33 4110000217052 骨架油封ZL30D-11-54 100*120*13 Sealing ring Y 1

34 4110000960010 螺栓Bolt M10X30 01010-81030 Screw Y 21

35 4110000004020 螺栓 M10×40 01010-81040 Screw Y 12

36 4110000217095 挡圈20 04064-02010 Washer N 1

37 4110000004014 油泵轴YJ280-4A-00017 Pump shaft Y 1

38 4110000217065 挡圈04064-08025 80 Washer Y 1

39 4110000004013 轴套YJ280-4A-00009 Bushing Y 2

40 4110000217046 齿轮YJ280-4DL-00002 Gear Y 2

41 4110000217049 呼吸器YJ320-20000 Breather cap Y 1

42 4110000217067 吊环螺钉04530-11222 M12×22 Screw Y 1

43 4110002937001 齿轮箱YJ280-1C-00001 Gear housing Y 1

44 7200000836 挡圈3004065-03012 Retaining ring Y 1

45 4110000217043 油泵轴YJ280-4A-00010X Shaft N 1

46 4110000217045 齿轮YJ280-4DL-00001 Gear Y 1

47 4110000217061 挡圈04064-01030 100 Washer Y 1

48 4110000217051 密封环ZL30D-11-19 Spacer ring Y 2

49 4110000004023 导轮座 YJ280-4A-00014 Seat Y 1

50 7200000842 分油套YJ280-4A-00011 Sleeve Y 1

51 4110000217033 螺塞07043-00312 Plug Y 1

52 4110000218006 O 形圈07002-02434 O-ring Y 1

53 4110000218083 螺塞07044-12412 Plug Y 1

54 4110003532002 标牌YJ280-8D-BP01 Name plate N 1

55 7200000846 铆钉3*6 04418-03060 Rivet Y 4

56 4110000217069 密封环YJ265-00014 Sealing ring Y 1

57 4110002937003 接头YJ280-4C-00007 Connection piece Y 1

58 4110002937007 涡轮轴YJ280-8A-00002 Turbine shaft Y 1

59 4110000217001 减压阀YJ320-10000 Pressure reducing valve Y 1

60 4110000960005 螺栓01010-81025 Screw Y 4

61 4021000021 滚动轴承GB276-6308 Ball bearing Y 1

62 4110000217066 挡圈04065-09030 90 Washer Y 1

63 4110003532003 O型圈07000-12125 O-ring Y 1

64 4110000217037 纸垫YJ265-00012 Gasket Y 1

65 4110000217099 回油阀YJ265-40000 Oil valve Y 1

66 4110002937002 油封座YJ280-1C-00003 Seat Y 1

67 4110002580011 骨架油封07012-70055 Sealing ring Y 1

68 4110000217057 螺栓01010-81095 M10*95 Screw Y 4

69 4110000217047 输出法兰YJ315D-00020B Flange Y 1

70 4110000217048 垫片1YJ315D-00021B Rubber washer Y 1

71 4110000217036 O形圈YJ315D-00022B O-ring Y 1

72 4110000217038 垫片1YJ280-1C-00004 Rubber washer Y 1

73 4110000960007 螺栓 M12X35 01010-81235 Screw Y 1
