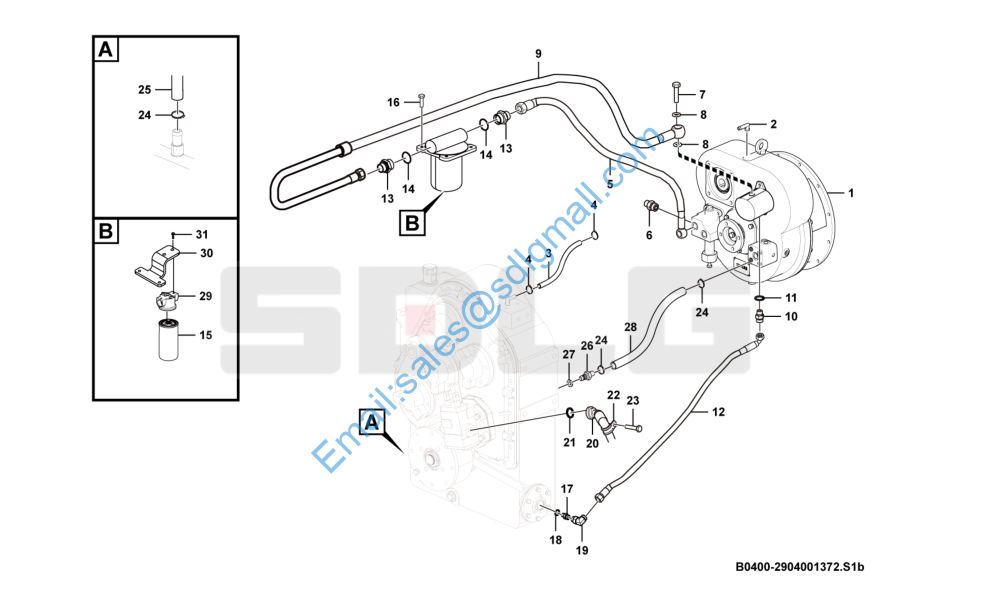

L918 变矩器总成 Torque converter system B0400-2904001372

1 4110003532 变矩器总成YJ2808D000004 Torque converter Y 1

2 29050031491 直角接头 Nipple Y 1

3 4030001350 胶管JB8406-B10*900 Hose Y 1

4 4017000010 喉箍JB8870-d20 Clamp Y 2

5 29040010761 滤清器至变矩器油管 Hose Y 1

6 29370018071 接头体 Nipple Y 1

7 4011000147 螺栓JB999-M27*2*55EpZn-35 Bolt Y 1

8 4030000062 垫圈JB1002-27-T2 Washer Y 2

9 29040013841 变速泵至滤清器油管 Hose Y 1

10 4041001038 直接头LGB155-03336 Nipple Y 1

11 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 1

12 4041001555 软管LGB165-014100 Hose Y 1

13 4041001173 直接头LGB155-03030 Nipple Y 2

14 4030000211 O形圈GB3452.1-30.0*2.65G O-ring Y 2

15 4110003853 传动油滤清器滤芯 Oil filter N 1

16 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 2

17 4041002403 直接头LGB155-12736 Nipple Y 1

18 4030000090 O形圈GB3452.1-28.0*2.65G O-ring Y 1

19 4041001211 组合接头LGB143-03625 Nipple Y 1

20 29040013741 变矩器至变速阀胶管 Hose Y 1

21 4030000179 O形圈GB3452.1-8.50*1.80G O-ring Y 2

22 29350000021 管夹 Hose clamp Y 1

23 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1

24 4017000011 喉箍JB8870-d32 Clamp Y 4

25 4120005554 胶管JB8406-B19*960 Hose Y 1

26 29040006551 接头体 Nipple Y 1

27 4030000059 垫圈JB1002-20-T2 Washer Y 1

28 4120006064 胶管JB8406-B19*550 Hose assembly Y 1

29 4110003091 滤座 Seat Y 1

30 29040014162 滤清器支架 Bracket Y 1

31 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2
