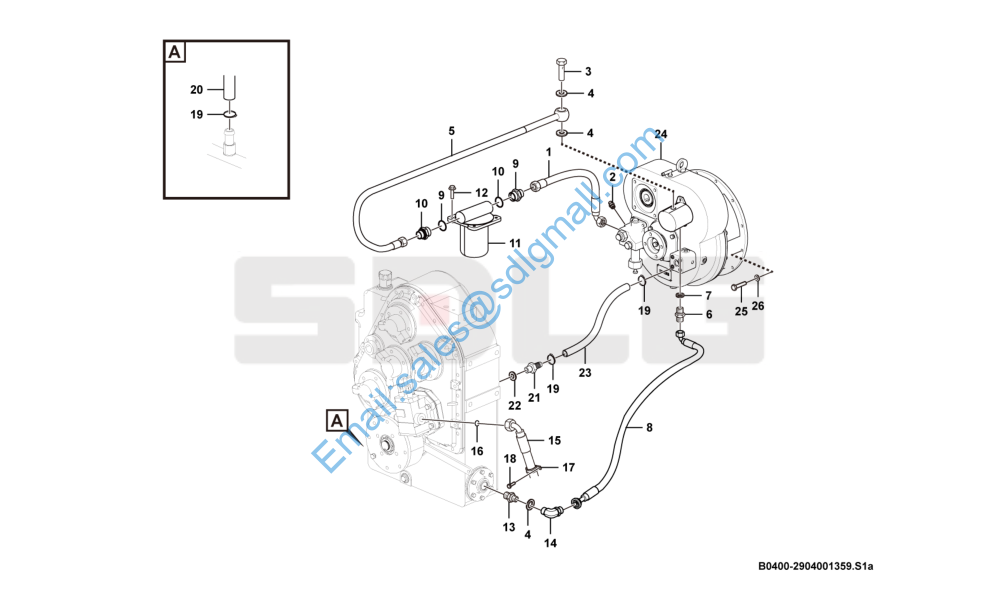

L918 变矩器总成 Torque converter system B0400-2904001359

1 29040010761 滤清器至变矩器油管 Hose Y 1

2 29370018071 接头体 Nipple Y 1

3 4011000147 螺栓JB999-M27*2*55EpZn-35 Bolt Y 1

4 4030000062 垫圈JB1002-27-T2 Washer Y 3

5 29040010771 变速泵至滤清器油管 Hose Y 1

6 4041001038 直接头LGB155-03336 Nipple Y 1

7 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 1

8 4041002698 软管LGB126-014100 Hose assemble Y 1

9 29040008271 接头体 Nipple Y 2

10 4030000013 O形圈GB1235-32*3.1 O-ring Y 2

11 4110000507 滤清器QF60M33G-1 Oil filter Y 1

12 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 2

13 29040010781 直接头M27-M36 Nipple Y 1

14 4041001211 组合接头LGB143-03625 Nipple Y 1

15 29040013741 变矩器至变速阀胶管 Hose Y 1

16 4030000179 O形圈GB3452.1-8.50*1.80G O-ring Y 2

17 4041002412 管夹LGB169-A20*10 Clamp Y 1

18 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1

19 4017000011 喉箍JB8870-d32 Clamp Y 4

20 4120000174 胶管JB8406-B19*900 Hose assembly Y 1

21 29040006551 接头体 Nipple Y 1

22 4030000059 垫圈JB1002-20-T2 Washer Y 1

23 4120005553 胶管JB8406-B19*600 Hose Y 1

24 4110002937 变矩器YJ280-7A Torque converter Y 1

25 4011000085 螺栓GB5783-M10*35EpZn-8.8 Bolt Y 12

26 4015000025 垫圈GB93-10-65Mn Spring washer Y 12
