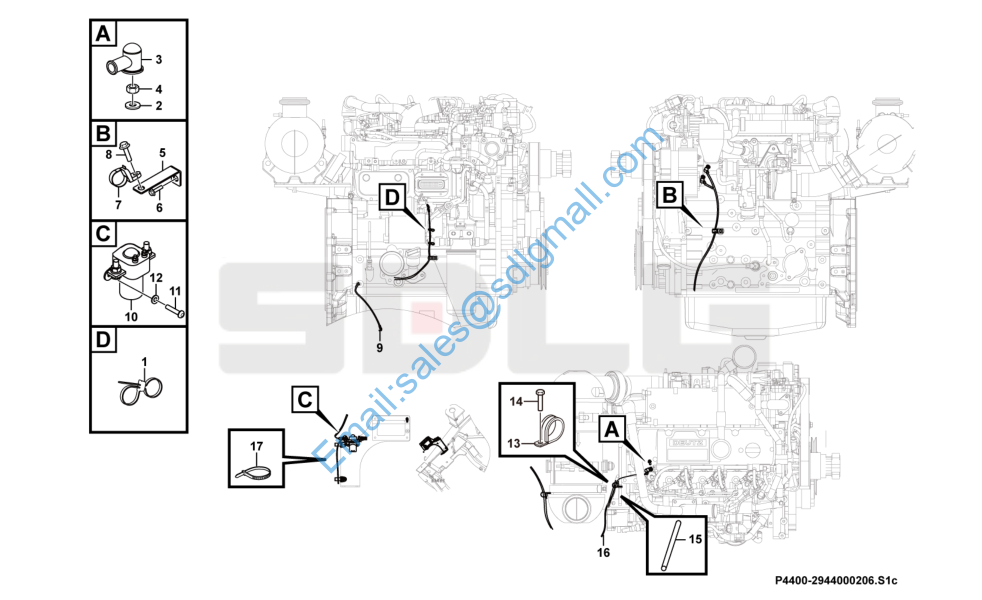

L918 发动机电气总成 Engine electric system P4400-2944000206

1 4190001832 扎丝RTGB-200ST Cable tie Y 4

2 4011001275 螺栓GB16674.1-M6*16flZnyc-8.8-480 Screw Y 1

3 26370002431 红电瓶线护套 Cable sleeve Y 2

4 4013000372 螺母GB6170-M6flZnyc-8-480 Nut Y 1

5 26370001072 支架 Bracket Y 2

6 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 9

7 3214558810 STRIP CLAMP Strip clamp N 7

8 4011001432 螺栓GB16674-M10*20flZnyc-8.8-480 Screw N 2

9 28440000371 接地线P50*400 Battery cable Y 1

10 4130000962 接触器JCC100/1C24·48 Relay Y 1

11 4014000514 螺钉GB818-M4*12flZnyc-4.8-480 Screw Y 2

12 4015000432 垫圈GB97.1-4flZnyc-300HV-480 Washer Y 2

13 4041002377 管夹LGB169-A20*12.5 Clamp Y 1

14 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 1

15 29370025191 隔热海绵 Sponge Y 1

16 4045000119 电瓶线LGB340-8*800P1L6L6-3L1 Battery cable Y 1

17 4190001095 扎丝N90666101 Cable tie Y 2
