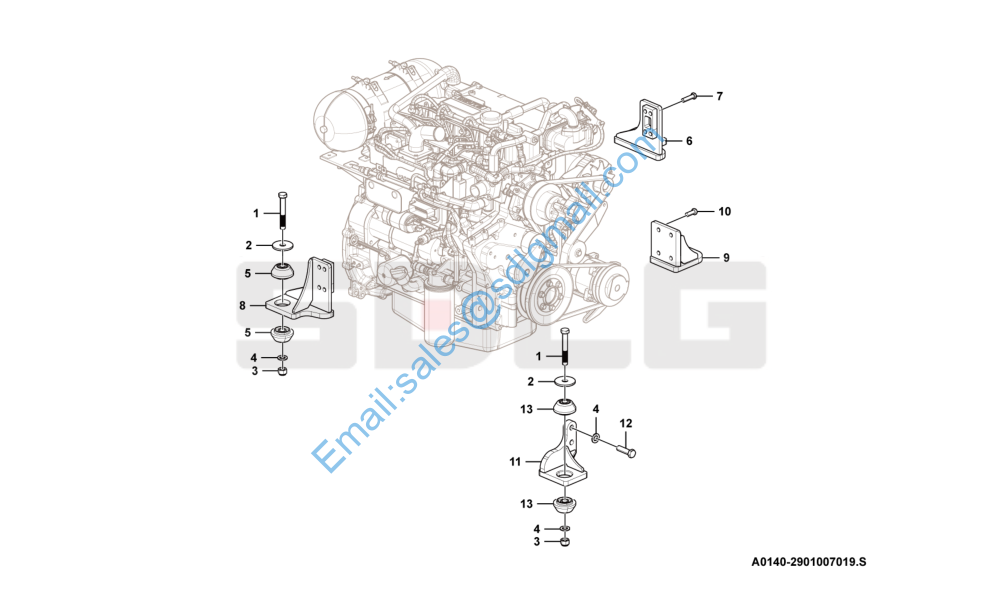

L918 发动机安装系统 Engine anchorage system A0140-2901007019

1 4011001410 螺栓GB5785-M16*1.5*110flZnyc-10.9- Bolt Y 4

2 29010006601 垫圈 Washer Y 4

3 4013000402 螺母GB889.2-M16*1.5flZnyc-10-480 Nut Y 4

4 4015000436 垫圈GB97.1-16flZnyc-300HV-480 Washer Y 6

5 29010017391 减震垫 Shock absorber Y 4

6 29010070411 右前支架 Engine mounting Y 1

7 4011001251 螺栓GB5783-M12*45flZnyc-8.8-480 Screw Y 8

8 29010070421 左前支架 Engine mounting Y 1

9 29010070431 右后支架 Engine mounting Y 1

10 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 4

11 29010070441 左后支架 Engine mounting Y 1

12 4011001386 螺栓GB5783-M16*55flZnyc-8.8-480 Bolt Y 2

13 29010017401 减震垫 Shock absorber Y 4
