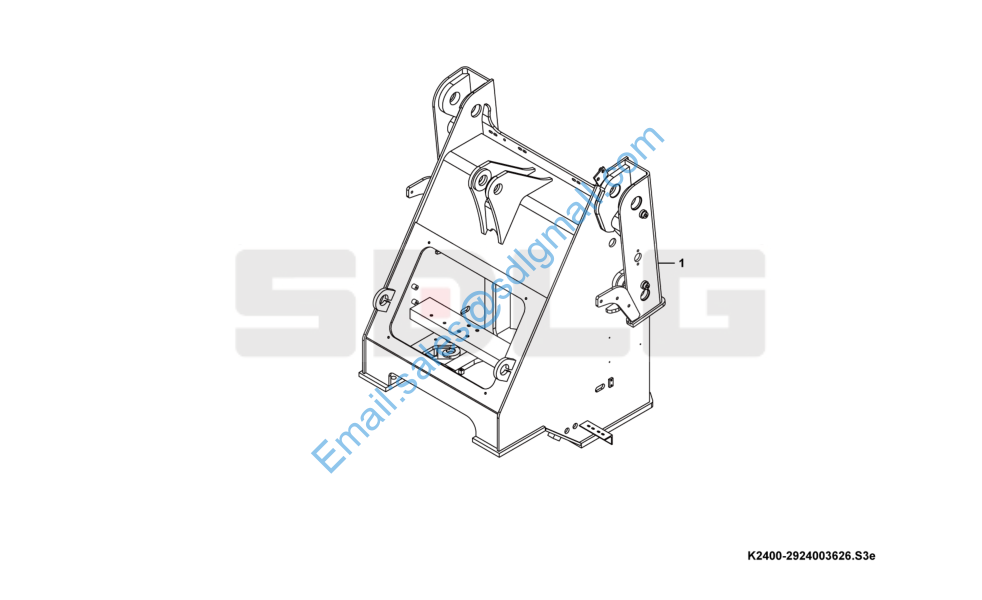

L918 前车架 Front frame system K2400-2924003626

1 29240036263 前车架 Front frame Y 1

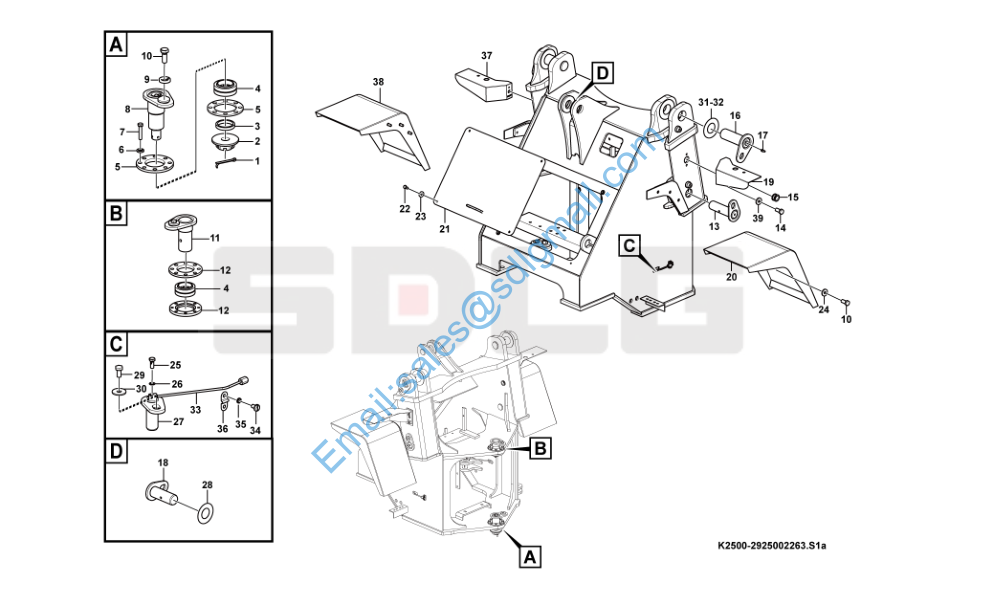

前车架附件 Front frame accessories K2500-2925002263

 4016000113 开口销GB91-6.3*63EpZn-Q235A Split pin Y 1

2 29250001061 开槽螺母 Nut Y 1

3 29250006521 套 Sleeve Y 1

4 4021000050 关节轴承GB9163-GE50ES-2RS Spherical plain bearing Y 2

5 29250006531 端盖 End cover Y 2

6 4015000025 垫圈GB93-10-65Mn Spring washer Y 16

7 4011000048 螺栓GB5782-M10*50EpZn-8.8 Bolt Y 16

8 29250006541 下铰接销 Pin Y 1

9 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 7

10 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 13

11 29250006551 上铰接销 Pin Y 1

12 29250006561 盘 Flange Y 2

13 4043000321 销轴LGB301-50*104*190G-40Cr Weld pin Y 2

14 4011001239 螺栓GB5783-M12*20flZnyc-8.8-480 Bolt Y 4

15 29250001351 走线胶套 Rubber sleeve Y 4

16 4043000322 销轴LGB301-60*98*190G-40Cr Weld pin Y 2

17 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 9

18 4043000148 销轴LGB301-50*80*145G-40Cr Weld pin Y 1

19 29250022651 左灯架 Lantern bracket Y 1

20 29250006621 左前挡泥瓦 Front fender Y 1

21 29250006571 前盖板 Cover plate Y 1

22 4011001500 螺栓GB5783-M8*30flZnyc-8.8-480 Screw Y 4

23 4043001961 防松套LGB331-8*16*15flZnyc-45 Attaching sleeve Y 4

24 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 6

25 29250000291 通油螺栓 Bolt Y 2

26 29250000301 垫片 Shim Y 4

27 29270019011 转向销轴 Weld pin Y 2

28 4043000067 垫片LGB303-50*100*1 Shim Y 2

29 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 2

30 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 2

31 4043000141 垫片LGB303-60*120*2 Shim Y 4

32 4043000151 垫片LGB303-60*120*1 Shim Y 4

33 29250006581 转向销油管 Lubricating pipe Y 2

34 4014000510 螺钉GB818-M6*10flZnyc-4.8-480 Screw Y 4

35 4015000035 垫圈GB93-6-65Mn Spring washer Y 4

36 29250000311 管夹 Clamp Y 2

37 29250022671 右灯架 Lantern bracket Y 1

38 29250006601 右前挡泥瓦 Front fender Y 1

39 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4
