L918 冷凝器总成(330112) Condenser N3562-4130002850

1 4130002850001 冷凝器壳体GKL33-5.0D1-10 Closure Y 1

2 4130002211001 螺栓GB90748-M6*16 Screw Y 4

3 4130002850002 冷凝风机GKL33-5.0D1-20 Fan Y 1

4 4130002850003 铭牌T0021-5 Name plate N 1

5 4190002123017 自攻螺丝GB845-85 ST4.2%x16 Cooler core assembly gsssgkz12-4.5c-20-10 N 10

6 4190002123012 螺栓GB5787-86 M6%x16 Y 4

7 4013000358 螺母GB6187.1-M6EpZn-8 Nut Y 4

8 4120002207005 PU不干胶T7101-316-20-3 Rubber plate Y 2

9 4120002207003 冷凝器芯GKL33-5.0D-20 Condenser Y 1

10 4130002850004 冷凝器进风网GKL33-5.0D1-30 Fan guard Y 1

11 4120002207006 PU不干胶T7103-490-25-10 Rubber plate Y 2

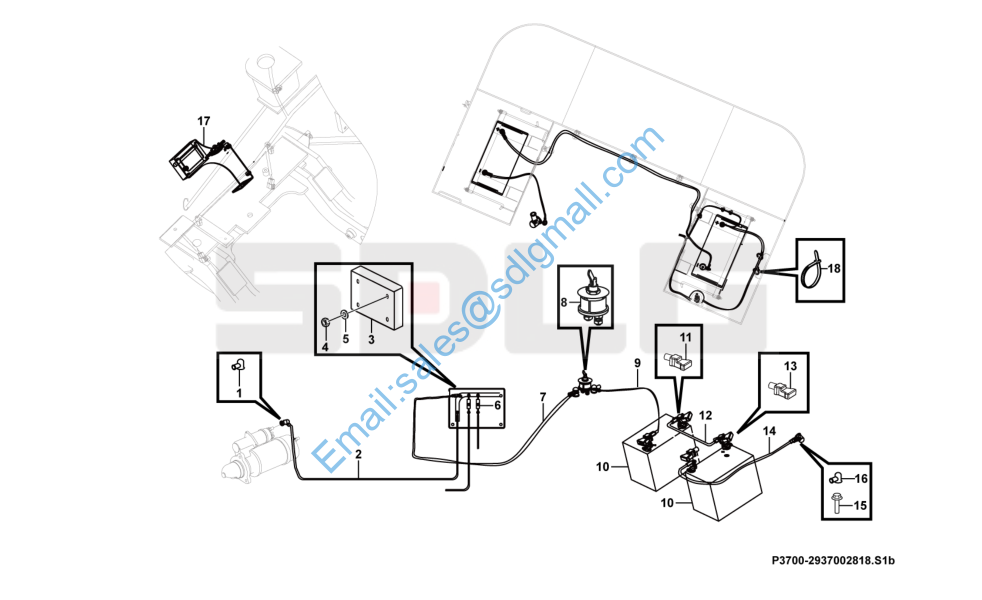

电源电气总成 Electric equipment P3700-2937002818

1 26370002451 红电瓶线护套 Cable sleeve Y 3

2 4045000116 电瓶线LGB340-40*800A1L10L10-3L1 Battery cable Y 1

3 11219856 保险盒 Fuse box Y 1

4 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4

5 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 4

6 4130002396 保险片 MEGA80A(UL) Fuse Y 2

7 4045000114 电瓶线LGB340-40*1600A1L10L10-3L1 Battery cable Y 1

8 4130000427 电源开关K01K18-A Battery switch Y 1

9 4045000118 电瓶线LGB340-40*560P1L10L10-3L1 Battery cable Y 1

10 4130000045 蓄电池6-QW-70 Wet battery Y 2

11 29370016701 电瓶线绝缘帽 Cable sleeve Y 2

12 4045000117 电瓶线LGB340-40*1700A1L10L10-3L1 Battery cable Y 1

13 29370016691 电瓶线绝缘帽 Cable sleeve Y 2

14 4045000115 电瓶线LGB340-40*320A1L10L10-3L1 Battery cable Y 1

15 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 3

16 26370002441 黑电瓶线护套 Cable sleeve Y 1

17 29370028233 固定支架 Bracket Y 1

18 4190000020 扎丝LG13-ZS4*250 Cable tie Y 6
