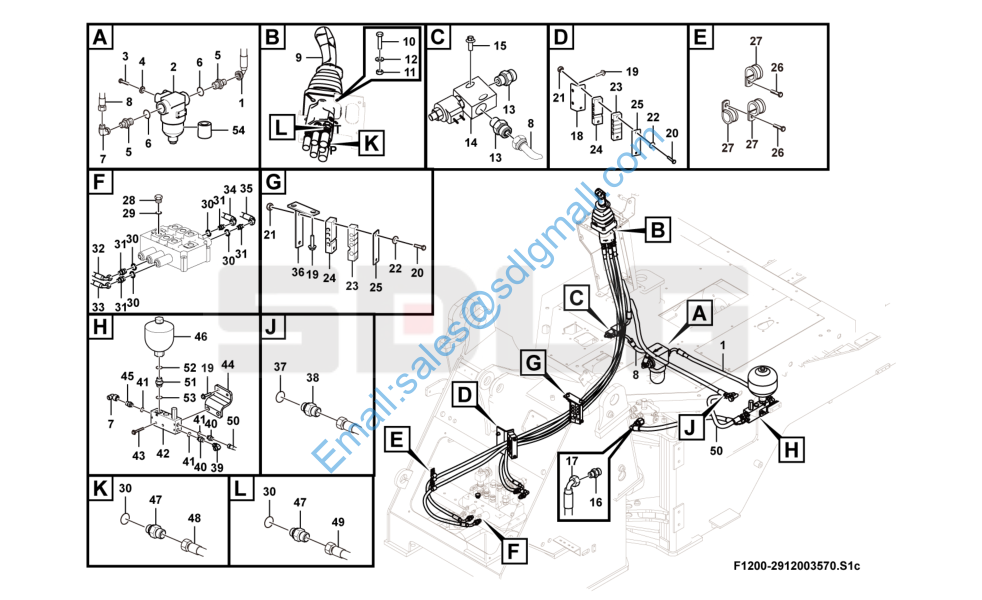

L918 液压操纵先导管路模块 Hydraulic control system F1200-2912003570

1 4041000575 软管LGB125-004070 Hose Y 1

2 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1

3 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 2

4 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2

5 29120015081 接头 Nipple Y 2

6 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2

7 4190000176 过渡接头EW10LOMDA3C Nipple Y 2

8 4041002063 软管LGB125-004037 Hose assembly Y 1

9 4120002933 先导阀总成HC-RCL-24 Control lever Y 1

10 4011000154 螺栓GB16674-M6*20EpZn-8.8 Bolt Y 3

11 4013000028 螺母GB6170-M6EpZn-8 Nut Y 3

12 4015000198 垫圈GB96.1-6EpZn-300HV Washer Y 3

13 4120004696 直通接头1CO-16-06 Nipple Y 2

14 4120005540 换向阀SV08-20MS-6T-N-24ER Control valve Y 1

15 4011001284 螺栓GB16674.1-M6*40flZnyc-8.8-480 Screw Y 2

16 29220017621 直接头1-1/16-12UN-M18 Nipple Y 1

17 4041002884 软管LGB128-005070 Hose assembly Y 1

18 29120015661 固定板 Anchor plate Y 1

19 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 6

20 4011001470 螺栓GB16674.1-M8*70flZnyc-8.8-480 Bolt Y 4

21 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4

22 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 4

23 29120018741 橡胶管夹 Clamp Y 2

24 29120018751 橡胶管夹 Clamp Y 2

25 29120015381 板 Plate Y 2

26 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2

27 29120007671 管夹 Clamp Y 3

28 4041000598 堵塞LGB142-01604 Plug Y 1

29 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 2

30 29120013381 垫圈 Washer

31 4041001533 直接头LGB120-11413 Nipple Y 8

32 4041001927 软管LGB125-003290 Hose assembly Y 1

33 4041002446 软管LGB125-003295 Hose assembly Y 1

34 4041001434 软管LGB125-003245 Hose Y 1

35 4041001451 软管LGB125-003250 Hose Y 1

36 29120015671 固定板 Anchor plate Y 1

37 4041000780 O形圈LGB168-11324 O-ring Y 2

38 4041000831 直接头LGB120-01816 Nipple Y 1

39 4190000141 接头EW12LOMDA3C Nipple Y 1

40 4041000150 直接头LGB120-01814 Nipple Y 2

41 4041000767 O形圈LGB168-11124 O-ring Y 3

42 4120002829 先导油源块 Valve Y 1

43 4011001279 螺栓GB16674.1-M8*50flZnyc-8.8-480 Screw Y 2

44 29120035711 支架 Bracket Y 1

45 4041000604 直接头LGB120-01614 Nipple Y 1

46 4120002830 蓄能器ELM0.75 Accumulator Y 1

47 29120010341 直通接头 Nipple Y 2

48 4041002159 软管LGB125-004067 Hose Y 1

49 29120028991 先导阀回油胶管 Hose assembly Y 1

50 4041002431 软管LGB125-005070 Hose assembly Y 1

51 29120031311 直接头 Nipple Y 1

52 4030000097 O形圈GB3452.1-23.6*2.65G O-ring Y 1

53 4041000783 O形圈LGB168-11724 O-ring Y 1

54 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1
