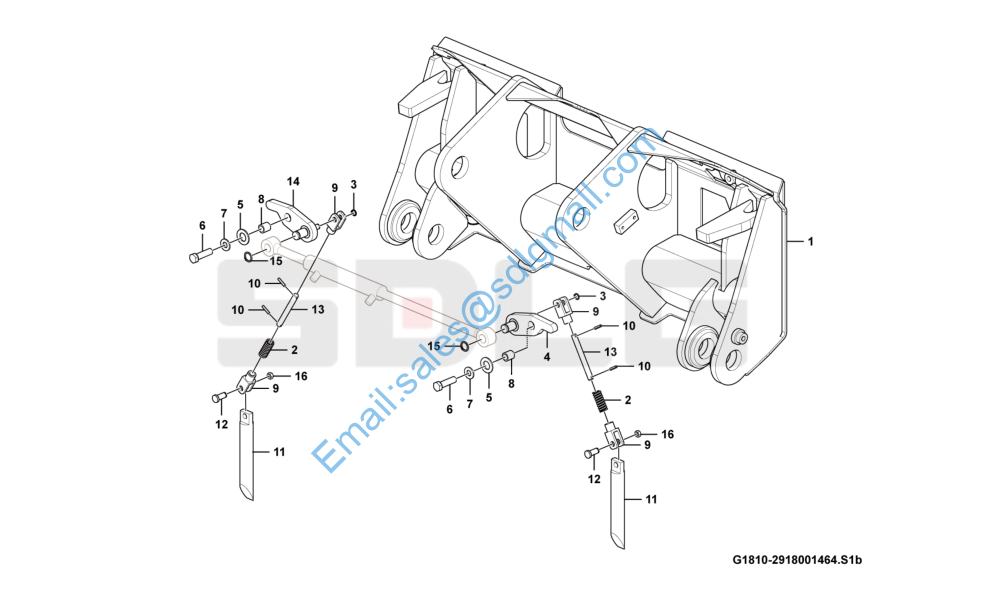

L918 快换支架 Quick-coupler equipment G1810-2918001464

1 29180014652 支架 Attachment bracket Y 1

2 29180014892 弹簧 Spring Y 2

3 4015000148 挡圈GB894.1-12-65Mn Snap ring Y 2

4 29180014842 限位指示板 Indicator plate Y 1

5 4015000434 垫圈GB97.1-20flZnyc-300HV-480 Washer Y 2

6 4011001349 螺栓GB5783-M14*50flZnyc-8.8-480 Bolt Y 2

7 4015000435 垫圈GB97.1-14flZnyc-300HV-480 Washer Y 2

8 29180014852 套 Sleeve Y 2

9 29180014802 U型叉 Link fork Y 4

10 4016000357 销GB879.1-5*24-ST Pin Y 4

11 29180014792 滑轴 Pin Y 2

12 4011001494 螺栓GB5783-M12*50flZnyc-10.9-480 Screw Y 2

13 29180014862 轴 Pin Y 2

14 29180014812 限位指示板 Indicator plate Y 1

15 4015000129 挡圈GB894.1-20-65Mn Retaining ring Y 2

16 4013000397 螺母GB6170-M12flZnyc-10-480 Nut Y 4
