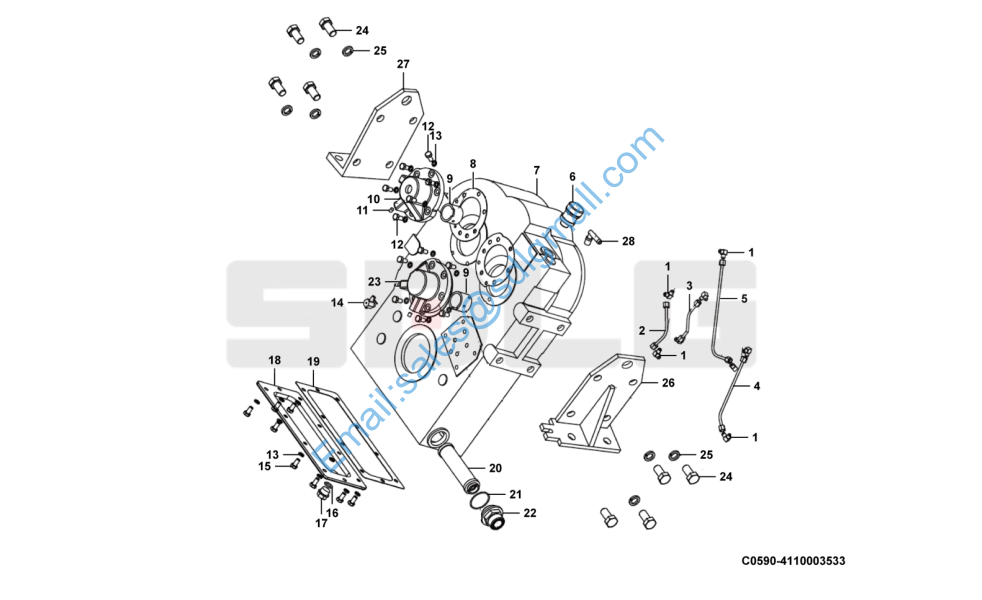

L918 变速箱箱体以及油路附件(370804) Transmission assembly C0590-4110003533

1 4110000218103 弯管接头BD05-00024 Nipple Y 8

2 4110000218059 管BD05-08000 Hose assembly Y 1

3 4110000218060 管BD05-09000 Hose assembly Y 1

4 4110000218061 管BD05-10000 Hose assembly Y 1

5 4110000218062 管BD05-11000 Hose assembly Y 1

6 4110000223018 呼吸器1BD05N1-05000 Breather cap Y 1

7 4110003533001 箱体BD06-00001-04K Housing Y 1

8 4110000218037 垫片BD05-03004 Rubber washer Y 2

9 4110002900002 封油套BD06-03001 Bushing Y 2

10 4110002900003 盖BD06-04001 Cover Y 1

11 4110000960002 螺塞07043-70108 Plug Y 4

12 4110000960010 螺栓Bolt M10X30 01010-81030 Screw Y 12

13 4110000004001 弹性垫圈01602-21030 Retaining ring Y 22

14 4110000960016 检油塞BD05N1-00002 Plug Y 1

15 4110000960005 螺栓01010-81025 Screw Y 10

16 4110002900004 O形圈07002-12434 O-ring Y 1

17 4110000218083 螺塞07044-12412 Plug Y 1

18 4110000218031 底板BD05-00012 Anchor plate Y 1

19 4110000218033 垫BD05-00013 Gasket Y 1

20 4110002900005 滤油器BD05-13000-16 Oil filter Y 1

21 4015000299 垫圈JB982-48 Washer Y 1

22 4110000218084 螺塞BD05-00027 Plug Y 1

23 4110002900006 盖BD06-03002 Cover Y 1

24 4110002900007 螺栓M20×40 01010-82040 Bolt Y 8

25 4110002900008 垫圈20 01602-22060 Washer Y 8

26 4110000223016 支架1BD05N1-02000 Bracket 1bd05n1-02000 Y 1

27 4110000223015 支架1BD05N1-01000 Bracket 1bd05n1-01000 Y 1

28 4110000217068 直角接头BD05N-01000 Nipple Y 1
