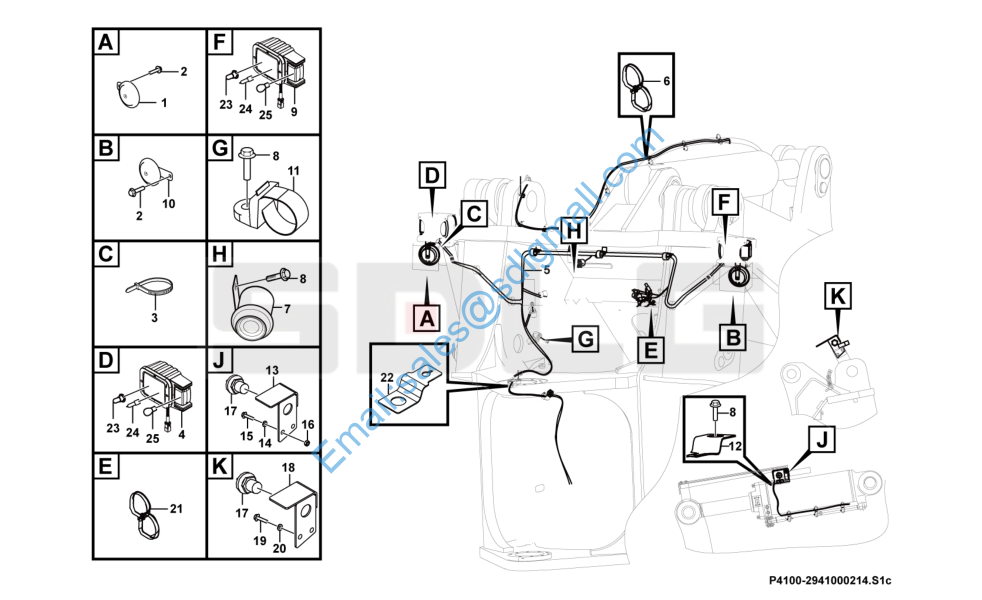

L918 前车架电气总成 Front frame electric system P4100-2941000214

1 11211268 电喇叭 Horn Y 1

2 4011001343 螺栓GB16674.1-M6*12flZnyc-8.8-480 Screw Y 2

3 4190000020 扎丝LG13-ZS4*250 Cable tie Y 10

4 4130001731 左前组合灯LFLDH4-1-24V Lamp Y 1

5 29410002153 前车架线束 Wiring harness Y 1

6 4190001833 扎丝RTGB-300ST Cable tie Y 7

7 4130001290 倒车蜂鸣器FM211C Buzzer Y 1

8 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 12

9 4130001732 右前组合灯LFRDH4-1-24V Lamp Y 1

10 11211269 电喇叭 Horn Y 1

11 14400342 扎带 Strip clamp Y 7

12 4130001450 CLIP 1027-005-1200 Clip Y 2

13 29140015901 接近开关支架 Bracket Y 1

14 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 2

15 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 2

16 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2

17 4130001061 接近开关NBB15-30GM50-E2-M Position switch N 2

18 29140013911 接近开关支架 Bracket Y 1

19 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 2

20 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2

21 4190001832 扎丝RTGB-200ST Cable tie Y 2

22 26370005452 花卡固定板 Anchorage Y 1

23 4130002035 灯泡PHILIPS 13961(24V4W) Bulb Y 2

24 4130002034 灯泡PHILIPS 13342(24V75/70W) Bulb Y 2

25 4130000618 灯泡PHILIPS 13498(24V 21W) Bulb Y 2
